Bodykit Clip diagram; May be of some help...
Topic Started: Mon Mar 5, 2007 7:11 pm (23,778 Views)
Woodcutter
Member Avatar
Part of things
[ *  * ]

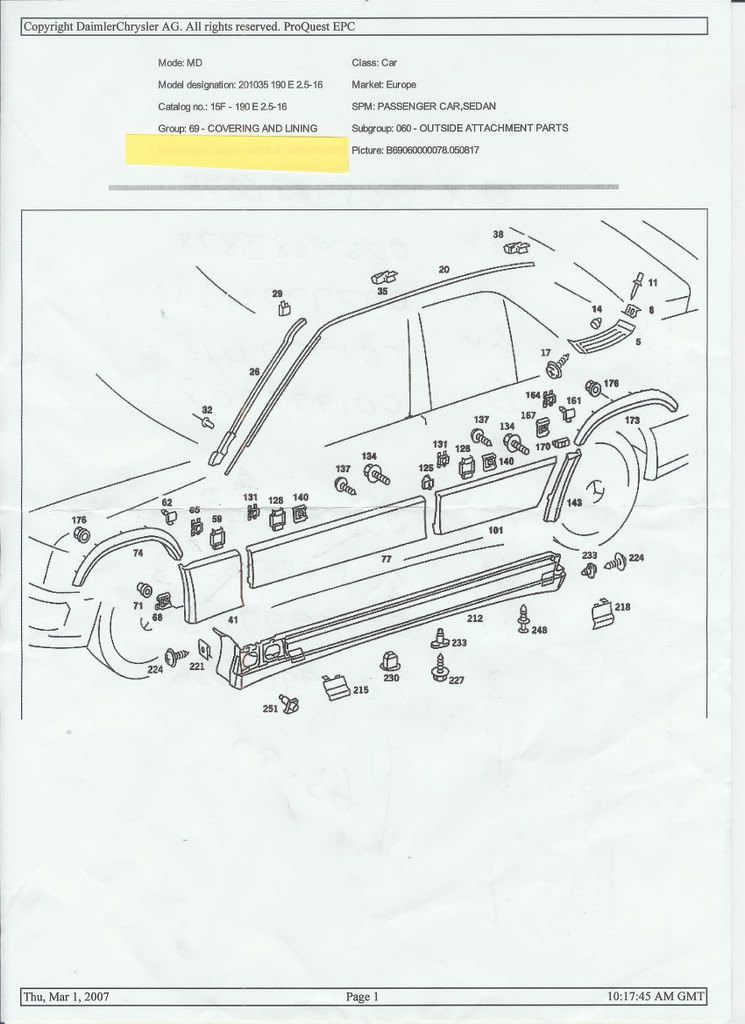

I've scanned in and attached a copy of the sheet Mercedes gave to me outlining which clips are used for each panel, this may be of help to people as they can print out and mark the ones they need when going to the dealership...

Posted Image

Hope this is of some help to the members. B)
Offline Profile Quote Post Goto Top

dave_irl
Member Avatar
Defector
[ *  *  *  *  *  *  * ]
No sooner had I asked for this and I read it in the next post! Nice one dude :)
Offline Profile Quote Post Goto Top

cossie connoisseur
Member Avatar
there can be only one ;-)
[ *  *  *  *  *  *  *  *  * ]
Anything for the front and rear bumper plus spoiler?
Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

cossie connoisseur
Mar 6 2007, 10:05 AM
Anything for the front and rear bumper plus spoiler?

As you wish

Posted Image
Posted Image
Posted Image
Offline Profile Quote Post Goto Top

frank133
frank133
[ *  *  *  * ]
realy helpfull on the body kit already done the bumpers and spoiler,noticed the panels behind the rear doors the clips can be pushed out from inside the boot so can be reused,dont know about the rest of them the clips tend to break when getting the panels off,will print your diagram for the future thanks
Offline Profile Quote Post Goto Top

sirsnooze
Member Avatar
Part of things
[ *  * ]
very usfull n1 cheers B)
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Wondered if anyone had the standard post-88 cladding diagrams?
I need to get replacement clips for the dog-leg piece between the
rear door and wheel arch, driver's side.
Part Numbers too if available...
Offline Profile Quote Post Goto Top

bmx-lee
Member Avatar
king
[ *  * ]
i dont suppose anyone knows where to get replacement clips for the bodykit?

my paint guy broke 3/4s of them :rolleyes:
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Dealership.
Brace yourself...

$200 didn't quite buy them all

Offline Profile Quote Post Goto Top

Kynyption
Member Avatar
Part of things
[ *  * ]
190Evoluzione
Jun 15 2007, 06:53 AM
Wondered if anyone had the standard post-88 cladding diagrams?
I need to get replacement clips for the dog-leg piece between the
rear door and wheel arch, driver's side.
Part Numbers too if available...

Little late now, sorry mate.

Posted Image
005 2016980189 001 ORNAMENTAL COVER LEFT,AT REAR PILLAR
005 2016980289 001 ORNAMENTAL COVER RIGHT,AT REAR END PILLAR
008 2019883278 001 CLIP VENTILATION SCREEN,LEFT
008 2019883378 001 CLIP VENTILATION SCREEN,RIGHT
011 910001003100 002 RIVET
014 1236900018 002 TREENAIL
017 914127003201 002 SHEET METAL SCREW
020 2016903762 001 LEDGE (WATER DEFLECTOR),LEFT *004 *406 *982
020 2016903862 001 LEDGE (WATER DEFLECTOR),RIGHT *004 *406 *982
026 2016980598 001 SEAL (WATER DEFLECTOR),LEFT
026 2016980698 001 SEAL (WATER DEFLECTOR),RIGHT
029 2019884478 006 CLIP (WATER DEFLECTOR) ON FRONT PANEL PILLAR
032 910001003101 012 RIVET (WATER DEFLECTOR) ON FRONT PANEL PILLAR
035 2016980160 010 CLIP WHITE;WATER DEFLECTOR TO ROOF
035 2016980260 010 CLIP BLACK;WATER DEFLECTOR TO ROOF
035 2016980660 010 CLIP GREEN; WATER DEFLECTOR TO ROOF
038 2016980860 002 CLIP WHITE;WATER DEFLECTOR TO ROOF,REAR
038 2016980960 002 CLIP BLACK;WATER DEFLECTOR TO ROOF,REAR
038 2016981260 002 CLIP
041 2016905340 001 PANELLING LEFT FRONT FENDER *915
041 2016905440 001 PANELLING RIGHT FRONT FENDER
044 0019885081 006 FASTENER BUTTON LOWER PART
----- 0059891685 002 ADHESIVE TAPE 315 MM *404
047 0019885181 006 FASTENER BUTTON LOWER PART
053 0019884481 004 FASTENER BUTTON UPPER PART
056 0019884981 006 FASTENER BUTTON UPPER PART
059 0019886081 002 FASTENER BUTTON UPPER PART
062 2018171320 002 GUIDE SIGN PANELLING TO FRONT FENDER "SPORTLINE"
077 2016905540 001 PANELLING LEFT FRONT DOOR, CENTRAL
077 2016905640 001 PANELLING RIGHT FRONT DOOR, CENTRAL
080 0069883578 010 CLIP
083 0029946445 002 LOCK
086 0029946545 002 LOCK
----- 0059891685 002 ADHESIVE TAPE 1015 MM *404
089 0019885181 012 FASTENER BUTTON LOWER PART
095 0019884981 012 FASTENER BUTTON UPPER PART
098 2019902036 004 SCREW
101 2016905740 001 PANELLING LEFT REAR DOOR, CENTRAL
101 2016905840 001 PANELLING RIGHT REAR DOOR, CENTRAL
104 0069883578 008 CLIP
107 0029946445 002 LOCK
110 0029946545 002 LOCK
----- 0059891685 002 ADHESIVE TAPE 696 MM *404
113 0019885181 008 FASTENER BUTTON LOWER PART
119 2019902036 004 SCREW
122 0019884981 008 FASTENER BUTTON UPPER PART
143 2016905940 001 PANELLING REAR FENDER,LEFT FRONT
143 2016906040 001 PANELLING REAR FENDER,RIGHT FRONT
146 0019885081 002 FASTENER BUTTON LOWER PART
----- 0059891685 002 ADHESIVE TAPE 78 MM *404
149 0019885181 002 FASTENER BUTTON LOWER PART
155 0019884581 002 FASTENER BUTTON UPPER PART
158 0019884681 002 FASTENER BUTTON UPPER PART
179 2016906140 001 PANELLING REAR FENDER,LEFT REAR
179 2016907940 001 PANELLING REAR FENDER,LEFT REAR
179 2016906240 001 PANELLING REAR FENDER,RIGHT REAR
179 2016908040 001 PANELLING REAR FENDER,RIGHT REAR
182 0019885081 008 FASTENER BUTTON LOWER PART
185 0019885181 004 FASTENER BUTTON LOWER PART
188 0006980014 001 BRACKET LEFT
188 0006980114 001 BRACKET RIGHT
----- 0059891685 002 ADHESIVE TAPE 490 MM *404
191 0009906292 002 RIVET USED WITH WIDE TIRES
197 0019884481 006 FASTENER BUTTON UPPER PART
200 0019884781 002 FASTENER BUTTON UPPER PART
203 0019884881 002 FASTENER BUTTON UPPER PART
206 0019886081 002 FASTENER BUTTON UPPER PART
209 0079883178 NB CLIP
212 2016906340 001 PANELLING AT LEFT SIDE MEMBER
212 2016906440 001 PANELLING AT RIGHT SIDE MEMBER
215 2016980930 001 COVERING IN LEFT FRONT COVERING
215 2016981030 001 COVERING IN RIGHT FRONT COVERING
218 2016981130 001 COVERING IN LEFT REAR COVERING
218 2016981230 001 COVERING IN RIGHT REAR COVERING
221 2016980214 004 BRACKET
224 914138004202 016 SCREW PANELLING TO SIDE MEMBER,TOP
227 2019900004 018 SCREW PANELLING TO SIDE MEMBER,BOTTOM
227 2019900004 004 SCREW SIDE MEMBER PANELLING TO FRONT FENDER
230 A1269880125 6739880025 - TREENAIL
230 6739880025 004 TREENAIL PANELLING TO SIDE MEMBER,BOTTOM
233 0009884125 016 TREENAIL PANELLING TO SIDE MEMBER,TOP
233 0009884125 014 TREENAIL PANELLING TO SIDE MEMBER,BOTTOM
251 0009883925 004 TREENAIL SIDE MEMBER PANELLING TO FRONT FENDER
260 2016980998 002 SEAL SIDE MEMBER
Offline Profile Quote Post Goto Top

dave_irl
Member Avatar
Defector
[ *  *  *  *  *  *  * ]
Thanks for the contribution dude, epic list!!
Offline Profile Quote Post Goto Top

Kynyption
Member Avatar
Part of things
[ *  * ]
Its all about the EPC. If anyone needs a P/N just send me a pm. :P
Offline Profile Quote Post Goto Top

bmx-lee
Member Avatar
king
[ *  * ]
190Evoluzione
Oct 12 2007, 09:46 AM
Dealership.
Brace yourself...

$200 didn't quite buy them all




crap.
Offline Profile Quote Post Goto Top

shamsh77
Member Avatar
Newbie
[ * ]
Hello guys, i'm from Belarus and owner the same car like yous :) for 6 years.
I want to ask about part N41 (front right fender) from 2,3-16v car, where i can by this used part for this bodykit in England. My mother live in Chiltonfoliat may be she can to by, but she is not understanding in car part.

sorry for my bad english B)
Offline Profile Quote Post Goto Top

bmx-lee
Member Avatar
king
[ *  * ]
shamsh77
Oct 16 2007, 10:31 AM
Hello guys, i'm from Belarus and owner the same car like yous :) for 6 years.
I want to ask about part N41 (front right fender) from 2,3-16v car, where i can by this used part for this bodykit in England. My mother live in Chiltonfoliat may be she can to by, but she is not understanding in car part.

sorry for my bad english B)

yous must might try the ebay?

them are on sometimes ebay.

quite possible rare however.
Offline Profile Quote Post Goto Top

shamsh77
Member Avatar
Newbie
[ * ]
thanks for advice, in ebay it rare thing i look some time, but may be your know some garage when the car is brake for spare and sell it. I met some in ebay but cannot connect with it, may be your know some reliable company.
Offline Profile Quote Post Goto Top

bmx-lee
Member Avatar
king
[ *  * ]
when my tax runs out next month, i'll be having a complete 16v bodykit for sale if your interested
Offline Profile Quote Post Goto Top

dave_irl
Member Avatar
Defector
[ *  *  *  *  *  *  * ]
bmx-lee
Oct 12 2007, 05:41 PM
190Evoluzione
Oct 12 2007, 09:46 AM
Dealership.
Brace yourself...

$200 didn't quite buy them all




crap.

If it is in dollars, thats actually not a bad price! Considering you'd have every fiddly damn little piece you'd need! Im sure the list is a little shorter if you are just fitting cladding, skirts, and two bumpers..

Has anyone priced a simple(ish) part list kit that would enable a 16v kit onto a standard car?

just for the:

-bodycladding clips,
-sideskirt screws, bolts, & rubber seals
-and the clips for the rear bumper & valence


*I omitted the front bumper as its just 6 bolts & washers..

Ukmerctechie perhaps? ;)
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Does anybody have some tricks & tips for the gentle removal of various clipped-on bodykit/cladding pieces?

For example, on my 1993 1.8 I'd like to remove the large 'Sacco' panels on either side of the rear bumper.
If you remove the boot-well liners, you can see the backs of some of the clips.

Any hints? :help:
Offline Profile Quote Post Goto Top

Lewis 190E 2.5 16
Member Avatar
W201
[ *  *  *  *  *  * ]
Ah, yes...
I had them off mates 190 2.0 few days ago, just use small pliers to squeeze the clips in and push them out...
Are you sure you want to take them off? There might be something behind there you don’t like..

But your car being so late i doubt you'd have anything except for dirt...
Good luck...
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Well, there's a scar in the underseal on the outside bottom of the spare-wheel-well, and tbh if I'm going to need to patch anything up I may as well be thorough.
The weather's mental this week though, I may leave it a fortnight or so.
Offline Profile Quote Post Goto Top

Michael
Needs Help
[ *  *  *  *  *  *  * ]
I want to remove the front spoiler lip on the Evo1 to line up the holes and drill the the new splitter.
I'm not sure how to remove it , any tips would be appreciated.

Michael
Offline Profile Quote Post Goto Top

jpskiller
Newbie
[ * ]
Hi

I have a mercedes 190e which has a coswrth kit on, someone has prised off the Front LH wing Body kit part and in doing so have managed to break or lose the 3 x clips which hold this part onto the wing, these are the upper white clips that push into the wing..

does anyone have the part number for these clips please
Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

jpskiller
Sun Sep 14, 2008 5:52 pm
Hi

I have a mercedes 190e which has a coswrth kit on, someone has prised off the Front LH wing Body kit part and in doing so have managed to break or lose the 3 x clips which hold this part onto the wing, these are the upper white clips that push into the wing..

does anyone have the part number for these clips please
0059883878 - CLIP

0079974381 - GROMMET

0059886378 - CLIP
Offline Profile Quote Post Goto Top

jpskiller
Newbie
[ * ]
Matt
Sun Sep 14, 2008 6:53 pm
jpskiller
Sun Sep 14, 2008 5:52 pm
Hi

I have a mercedes 190e which has a coswrth kit on, someone has prised off the Front LH wing Body kit part and in doing so have managed to break or lose the 3 x clips which hold this part onto the wing, these are the upper white clips that push into the wing..

does anyone have the part number for these clips please
0059883878 - CLIP

0079974381 - GROMMET

0059886378 - CLIP
cheers for that, i'll pop down dealers and try and get some
Offline Profile Quote Post Goto Top

nickaliath
Member Avatar
Bodywork Specialist
[ *  *  * ]
how about some cardboard bumpers and chrome granada spoilers and a packet of tea bags on the roof?
Offline Profile Quote Post Goto Top

hitenb
Member Avatar
Addicted
[ *  *  *  * ]
Cheers Kynyption for the list
Offline Profile Quote Post Goto Top

E109
Newbie
[ * ]
HI NOT SURE IF HAVE RIGHT PLACE NEW MEMBER HAV A 190E TRYING TO FIT THE LOWER VALANCE BELOW DOORS U HAV IN DIAGRAM . MERC DEALERS KEEP SUPPLYING WRONG CLIPS WHICH FIT BODY WORK IN THE CIRCULAR HOLES ON THE LOWER BOTTOM PARTS OF THE CILLS SOME FORM OF TREE NAIL I THINK BUT NEED A CORRECT PART NUMBER ANY HELP OR ADVICE GREATLY RECIVED PROBLEM DRIVIN ME NUTS. THX
Offline Profile Quote Post Goto Top

E109
Newbie
[ * ]
E109
Sat Oct 4, 2008 3:44 pm
HI NOT SURE IF HAVE RIGHT PLACE NEW MEMBER HAV A 190E TRYING TO FIT THE LOWER VALANCE BELOW DOORS U HAV IN DIAGRAM . MERC DEALERS KEEP SUPPLYING WRONG CLIPS WHICH FIT BODY WORK IN THE CIRCULAR HOLES ON THE LOWER BOTTOM PARTS OF THE CILLS SOME FORM OF TREE NAIL I THINK BUT NEED A CORRECT PART NUMBER ANY HELP OR ADVICE GREATLY RECIVED PROBLEM DRIVIN ME NUTS. THX
Offline Profile Quote Post Goto Top

scottx
Tiny penis
[ *  * ]
Wow that's a lot of little parts. I'm glad I don't have this kit on my car. I feel that big cladding and kits like this create a perfect place for rust to form and eat the car away.

My Zender kit doesn't cover like this so there's no way rust will form.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
The parts list for body cladding includes lengths of adhesive tape for each panel.

Does anyone know what this does and how it is applied?

Offline Profile Quote Post Goto Top

Chris190
Part of things
[ *  * ]
aemt
Tue Aug 16, 2011 7:51 pm
The parts list for body cladding includes lengths of adhesive tape for each panel.

Does anyone know what this does and how it is applied?

It acts as a buffer between the cladding and door, to prevent the cladding vibrating and wearing through the paint. It is only about 4-5mm wide and is stuck to the top edge of the cladding (including rear bumper on 16v).

It is one of the many items on my list that I need to buy when I sort the paint on the 16v.

Hope this helps Andy.


Chris
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Thanks Chris.

Better get some on order then.

It must wear off pretty quickly, there is no trace of it on the two sets of cladding I have.

Hope all well with you and the car.

Andy
Edited by aemt, Wed Aug 17, 2011 8:02 am.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Update.

Just had a good look at the sacco panels.

The tape is still there on the upper edge only.

It looks very much like a strip of rubber draft excluder.

Will definately get it on order
Offline Profile Quote Post Goto Top

stwat
Member Avatar


Fantastic Andy B)
Online Profile Quote Post Goto Top

pratishk
Part of things
[ *  * ]
Just wondering how to attach my cosworth body onto my g reg 190 the backs of the sacco's are different to what I have on the rear of the my sacco's are there different clips I need to purchase or is it just not possible ?

Thanks
Offline Profile Quote Post Goto Top

soarhead
Newbie
[ * ]
Hope somebody can help with this one as my main dealer can't! We have searched the MB computer parts diagram but can't seem to locate this clip.

I'm referring to my 1988 190 2.0lt UK spec (RHD) which has lower body cladding. The part concern is the moulding between the rear bumper and rear door. It is held on with four small clips on the top and two large clips on the bottom. Can anyone tell me the part number of the two lower clips that hold the moulding to the body? Just to be clear its the clips that locate in the car body I'm looking for and not the two female ones that are on the moulding. I've tried to upload a photo but don't know where it has gone. If anyone can tell me how to do this I'll add the photo later.

Many thanks in anticipation.
Offline Profile Quote Post Goto Top

L812GHV
Part of things
[ *  * ]
Hi Guys,

I am in the process of fitting my cosworth kit to my 190e and i have hit a problem. I am missing the upper clip for the dogleg piece infront of the rear wheels. I need the clip that attaches to the body. I think its number 170 on the chart would anyone have a part number?

Thanks
Offline Profile Quote Post Goto Top

stwat
Member Avatar


The part number is A0079975481


http://www.mercedes-benz-parts.co.uk/index.php?option=com_virtuemart&sku=a0079975481&Search=Go&page=shop.product_details&flypage=shop.flypage&option=com_virtuemart

Part number found here, http://www.neoriginal.ru/cat/mb/part__1_1_500_201_034_500_201_034/69_060_
Online Profile Quote Post Goto Top

jmatcham
Member Avatar
Newbie
[ * ]
...just wanted to offer up these pictures from when I had to remove the body panels from one side of my 1992 model (2.0 190e). These were only the side panels from the back of the front wheel-arch along to the front of the rear wheel-arch. I've circled the clips that got broken during removal! I think the operation might have gone easier if the weather had been warmer as the nylon spear-head fasteners do not want to be pulled out of their orifices at all easily - even with the encouragement of lubricant.

Basically, I prized away each plastic panel at one corner from the bodywork wherever I could get the most movement (no more than an inch) and then tried to look inside the panel cavity to figure out where to go from there - this didn't damage the panels, but did fracture two clips before I got a fair idea of what to do next.

The skirt panel that runs all the way along under the doors was the last component to come out and was easiest to remove due to being held in place by simple screws - but you have to remove all the other panels in order to get to it! The upper lline of screws are hidden behind the black rubber insert strip, which can be freed at one end with use of a screwdriver blade and then pulled out to uncover all the screwheads.

All other panels have a set of clips along their lower edge that are best removed by working from the underside of the panel, forcing it to bend outwards from the bodywork, and using a slender screwdriver to unclip the clips from the panel, rather than trying to separate the two halves of the clips from each other - thus ending up with the entire clip left attached to the bodywork (one of the pictures shows where to insert the screwdriver under the edge of one lug on the clip body, and there are two lugs on each clip body).

The clips along the top edges of these panels are slide-off lugs for the door panels (unscrew the retaining screw at one bottom corner of the panels and then slide the panels off towards the back of the car - about 2 cm of travel - and then outwards), and then the last two wheel-arch panels just have to be pulled off at the top edge (as far as I can tell!).

I did recover all of my clips, but did resort to bodging the broken clips back in place using chemical metal. Sorry for the acts of cruelty :-/

Upon re-fitting I secured the top edges of all the panels first (remembering that the bottom skirt panel has to go back first in the order). Now, when you try and push the bottom edges of the door and wheel-arch panels back onto their clips you do need to push a screwdriver blade back up underneath each clip body so that it is angled appropriately to slot back over the plastic ridge along the inside of each panel. That's a bit fiddly, but you'll figure it out, and don't worry about using quite a bit of force as the panel plastic seems to be quite resilient...

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

1 user reading this topic (1 Guest and 0 Anonymous)
ZetaBoards - Free Forum Hosting
Free Forums. Reliable service with over 8 years of experience.
Go to Next Page
« Previous Topic · Bodywork & Exterior · Next Topic »
Add Reply


Email me if anyone replys
