Front Bumper Strip Replacement
Topic Started: Mon Jul 23, 2007 5:54 pm (4,341 Views)
Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]

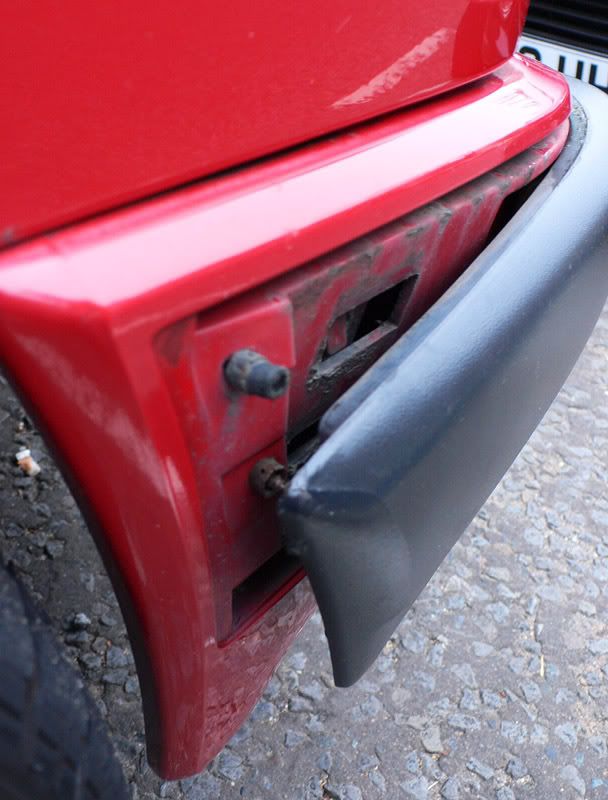

When i dinged my car, the mounting points on one end of my front impact strip broke.

Posted Image

I need to replace the whole strip (black outer cover only), but can somebody tell me:


Which of these ECP items is the part i'm looking for:
- GENUINE 822220070 F/IMPACT PAD 88- ENERGY ABSORBER PAD £28.34
or
- REPLACEMEN 822220080 FRT BUMPER RAIL 190 88-93 190 1988-93 (201 CHASSIS) FRONT IMPACT COVER £22.55

also, removal & fitting instructions if poss, thanks :)

EDIT:
The genuine MB part number for it is 2018851421
Offline Profile Quote Post Goto Top

charl44
More than part of things
[ *  *  * ]
This might help Neil,

http://www.detali.ru/cat/oem_mb2.asp?TP=1&...&SGR=030&SGN=02

No:83

You will probably have to remove the front bumper to get at the screws that are at either end of the impact strip(rail), apart from the screws I think it just clips in, it does at the back.

Ian
Offline Profile Quote Post Goto Top

Cosworth
Member Avatar
More than part of things
[ *  *  * ]
Removal and fitting is very easy.

In order to replace the trim, bumper needs to be removed.

1) In order to remove bumper there are 2 x 10mm bolts each end of the bumper
undo them.
2) there are 4 x 13mm nuts under the bumper near the chassis legs, 2 on each side.

Then the bumper should come off, Also beware there is a trim in front of the rad.

Then the trim.

3 philips screws each end and there plasric clips around the trim which just needs unclipping.


hope this helps
Offline Profile Quote Post Goto Top

charl44
More than part of things
[ *  *  * ]
Don`t forget, if you have the OTG, the fastening for this is behind the number plate.

Ian
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
^thanks, i've removed the bumper before so i got that stage sorted.
I was just a bit confused as to how the impact rail cover was attached.
Is there a foam pad inside it?
Can i keep the foam pad and use it for the new rail cover, or is it glued in?
Offline Profile Quote Post Goto Top

charl44
More than part of things
[ *  *  * ]
190Evoluzione
Jul 23 2007, 06:07 PM

Is there a foam pad inside it?
Can i keep the foam pad and use it for the new rail cover, or is it glued in?

Cant help you there mate, I`ve no idea :(

Ian
Offline Profile Quote Post Goto Top

Cosworth
Member Avatar
More than part of things
[ *  *  * ]
190Evoluzione
Jul 23 2007, 05:07 PM
^thanks, i've removed the bumper before so i got that stage sorted.
I was just a bit confused as to how the impact rail cover was attached.
Is there a foam pad inside it?
Can i keep the foam pad and use it for the new rail cover, or is it glued in?

the foam pad is inside. It just sits there.
Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

Yes the foam pad sits inside it. Make sure you don't go ordering the foam pad if you require the actual cover.
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Thanks to the handy Russian link posted by Ian, hopefully the chances
of that are low :lol:
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Chaps, any idea of the Part Number of the Screws that hold the bumper cover on at each end?
Six in total, and I'm gonna need new ones.

:help:
Edited by Neil, Wed Feb 24, 2010 2:53 pm.
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Right. Got the 6 Screws on order at the Dealership.
43p each or something.
Guy on the phone says it looks like I might need 6 'threaded chucks' too.
90p each - Turns out they are metal grommets that help the screws grip into the plastic.
Will keep this updated as I do it.

Posted Image
Edited by Neil, Wed Feb 24, 2010 4:38 pm.
Offline Profile Quote Post Goto Top

twopointsix
Addicted
[ *  *  *  * ]
Neil - it's a good idea to replace the threaded chucks when you fit the screws. they are very flimsy and rust/break. Every bumper cover I've removed has had at least one or two of these chucks that weren't re-usable. Grease the screws before you fit them, then if you need to remove in the future, they should come off nice and easily.

have fun!
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Replacing all fixtures & white grease will be used! :)
Offline Profile Quote Post Goto Top

T12TPH
Part of things
[ *  * ]
Neil, where did you get the new black plastic bumper strip from as im currently wanting to replace mine??

Tom
Offline Profile Quote Post Goto Top

vindaloo
Member Avatar
Part of things
[ *  * ]
T12TPH
Wed Feb 24, 2010 9:48 pm
Neil, where did you get the new black plastic bumper strip from as im currently wanting to replace mine??

Tom
+1

A complete parts list would be nice, please?
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Bumper was from Euro Car Parts and looks to be very good quality.

ECP Part No. 822220080 - £31.67 inc VAT

Will add the fixture P/Nos tomorrow when I collect it all from MB.
Offline Profile Quote Post Goto Top

T12TPH
Part of things
[ *  * ]
Thanks Neil, just ordered one, however all the info i got after i typed the part number in was 'bumper' and no picture so we'll just have to see what turns up!! Came to a very resonable £32.45 incl next day delivery!
Offline Profile Quote Post Goto Top

vindaloo
Member Avatar
Part of things
[ *  * ]
Thanks Neil.

I bought a complete brand new front bumper (without strip) for £10.50 on ebay from a MB dealer (RRP is over £420). If the ECP strip is good quality it might prompt me to get the new unit painted and fit a new inset strip.
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Part Numbers for Front Bumper Strip/Cover Fixtures from Mercedes-Benz;

N000 000 000 521 Sheet Metal Screw - £0.35 +VAT each
A000 984 31 25 Threaded Chuck - £0.80 +VAT each

Total price for 6 of each item (required) - £8.11 including VAT

Posted Image
Offline Profile Quote Post Goto Top

chrismatheou
Member Avatar
Enthusiastic Bad Boy
[ *  *  *  * ]
Why the hell do MB insist on replacing every philips screw on our cars with them star ones. :no:
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
I was a bit p!ssed off about that too.
I have a set of Torx drivers but tbh it's pathetic that you should have to use them on a part like that.

Likely updating an old part for newer cars full of Dealer-only bollocks that Joe Bloggs can't ever repair himself.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Need to replace both front and rear inserts on the 2.6. Some fool painted them (badly) in the past.
Offline Profile Quote Post Goto Top

chrismatheou
Member Avatar
Enthusiastic Bad Boy
[ *  *  *  * ]
NEIL
Thu Feb 25, 2010 7:36 pm
I was a bit p!ssed off about that too.
I have a set of Torx drivers but tbh it's pathetic that you should have to use them on a part like that.

Likely updating an old part for newer cars full of Dealer-only bollocks that Joe Bloggs can't ever repair himself.
Exactly good old MB just trying to make our lives difficult. The screws I ordered the other day hold the kick panels in and the centre console and ashtray. All were torx opposed to the original philips ones and the ones which hold the headlights in have changed too. I think they must have just changed the lot. :-/
Edited by chrismatheou, Thu Feb 25, 2010 8:48 pm.
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
So, I did this today.

Took me a little while, maybe two hours as it's such a dirty job involving an awkward object.
I washed the Bumper before taking it off the car, but that still didn't quite prepare me for the level of scum and filth behind it - there's only so far a Jet-Wash will go!

Anyway, I had decided to lay out a Tarp in the lounge and do the Bumper Strip swap away from the wind and rain.
The 3 Screws (Philips head) that held on the old bumper had very rusty heads, and I feared that I might have to drill them all out.

However, after a soak in WD-40 and gentle but very firm pressure from a sharp, narrow Flat-Head Screwdriver, 5 out of 6 came out.
There was also a good deal of foul language.

Posted Image

The last one had to be drilled out, and this is a last resort imo as you risk making the mounting hole in the bumper too big, and eventually useless!
I guess if the worst came to it, you could go out and get some Washers, but I thankfully avoided that.

So when the Bumper Strip comes off - you push out the clips from the back with a screwdriver, and believe me when I say an extra pair of hands would
have been very useful - you are left with the yellowy foam Impact Pad inside, which is not attached to anything.
The odd rude word was used whilst doing this alone.

Posted Image

I put the Impact Pad to one side, cleaned the bumper shell and then got the new Bumper Strip out of its packaging to find that ECP actually include a pack of 6 Philips-Head Screws, taped to the back of the bloody Bumper... :rolleyes: :lol:

Anyway, let's compare old (OE, top) with new (Replica, bottom):

Posted Image

New one is just as solid as the old one, a bit blacker and a bit less textured - there is still a 'grain' to it, but it's finer.

On to fitting the new strip.
Put the Impact Pad inside the Bumper Strip first, making sure it is perfectly central.
Then, take the 6 little Threaded Chucks, put some white grease inside them and fit them to the ends of the screw-sleeves on the Bumper Strip.
They are a loose fit, so pinch them on gently with long-nose pliers.
Do not make the mistake I did, which is to not do the above and lose them inside the Bumper about 5 times. Cue more swearing.

Then start mounting the Bumper Strip, starting from the centre and working outwards. Virtually all of the clips snap into place with ease, though
the last few will need much firmer pressure in order to get the screw sleeves lined up with the holes in your Bumper Shell.
I really would have liked an extra pair of hands at that point.
Once lined up, in go the Torx-Headed Screws (I bought the buggers, I'm using 'em!)

Posted Image

and there you have it, job done!

Posted Image

Remount Bumper on car, wipe off greasy finger prints and refit Number Plate :)

Edited by Neil, Fri Feb 26, 2010 6:35 pm.
Offline Profile Quote Post Goto Top

twopointsix
Addicted
[ *  *  *  * ]
Well done Neil. Done that job a couple of times and suspect you may have learned some of the swear words from me! Unclipping the strip from the bumper needs three hands every time - I only have two, same as you.

See what I mean about the chucks going rusty and the need to grease the new screws?

Anyway. Job done. Just be careful not to scrape a corner now, like I did, just a month after fitting the new strip! Next time it needs paint, I'll get my bodyshop pal to do his magic trick with the back to black bumper stuff he uses.

Another tip, if you haven't already put the bumper back on - clean off, repaint & waxoyl the side bumper mounts. These have a nasty habit of corroding. Well worth doing whilst you're there.

Offline Profile Quote Post Goto Top

vindaloo
Member Avatar
Part of things
[ *  * ]
Excellent guide Neil, many thanks

Anyone got a parts list and a guide for the rear?
Offline Profile Quote Post Goto Top

AgentOrange
Member Avatar
Guardian of Perspective
[ *  * ]
Excellent thread Neil. My bumper came from ECP today, shall be fitting it at the weekend. This guide will help me no end, much appreciated :D
Offline Profile Quote Post Goto Top

zak davis
Newbie
[ * ]
Ive been looking for the trim from the front bumper .......but im looking for one without the groves for the licence plate just straight ....do they make this????
Offline Profile Quote Post Goto Top

chrismatheou
Member Avatar
Enthusiastic Bad Boy
[ *  *  *  * ]
zak davis
Sat May 22, 2010 10:06 pm
Ive been looking for the trim from the front bumper .......but im looking for one without the groves for the licence plate just straight ....do they make this????
Well I'm sure MB certainly don't make and I doubt you'd be able to find one from another supplier either tbh but I can definitely see the appeal. You might have to make one up yourself I don't know how you could go about that though...
Offline Profile Quote Post Goto Top

chrismatheou
Member Avatar
Enthusiastic Bad Boy
[ *  *  *  * ]
zak davis
Sat May 22, 2010 10:06 pm
Ive been looking for the trim from the front bumper .......but im looking for one without the groves for the licence plate just straight ....do they make this????

Well I'm sure MB certainly don't make one and I doubt you'd be able to find one from another supplier either tbh but I can definitely see the appeal. You might have to make one up yourself I don't know how you could go about that though...
Edited by chrismatheou, Sat May 22, 2010 11:32 pm.
Offline Profile Quote Post Goto Top

RickSingh
Newbie
[ * ]
Anyone have any ideas of how to repair the bumper without buying a new panel need a new one and can't get it from anywhere with spending hundreds!!
Offline Profile Quote Post Goto Top
