| How To Lube Wiper Mechanism | |
|---|---|
| Tweet Topic Started: Fri Mar 28, 2008 9:01 pm (16,459 Views) | |
| MBZ190D | Fri Mar 28, 2008 9:01 pm Post #1 |
![]()
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

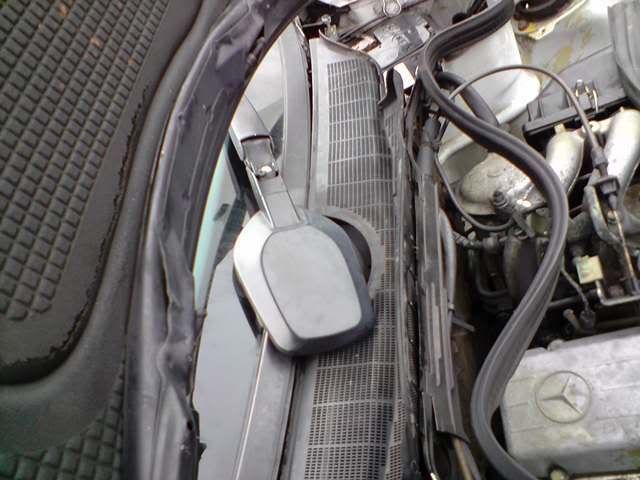

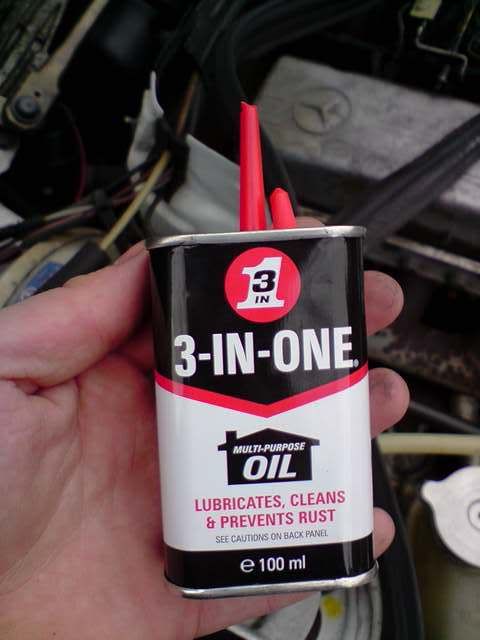

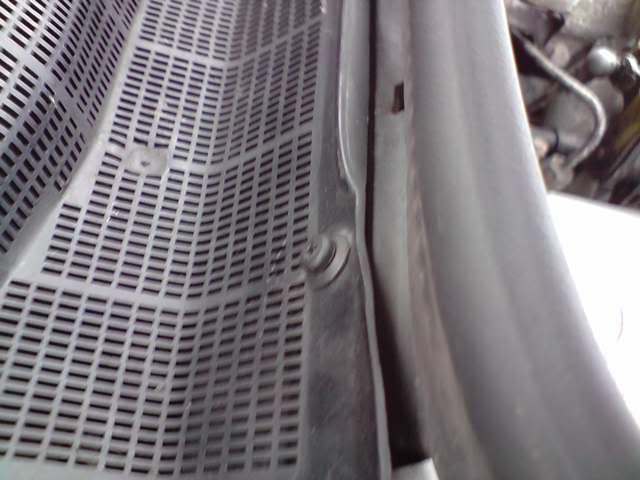

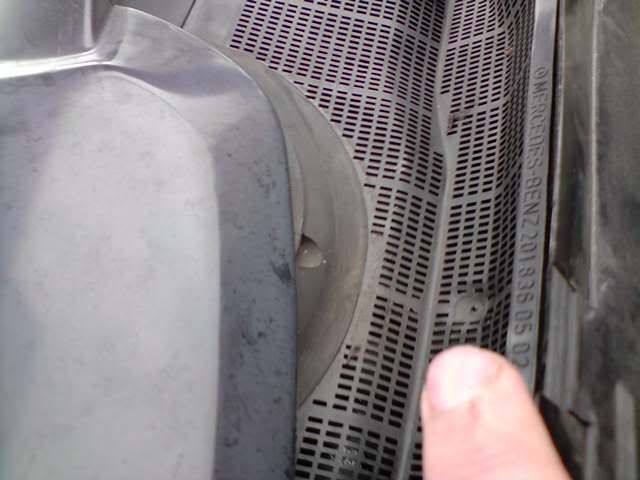

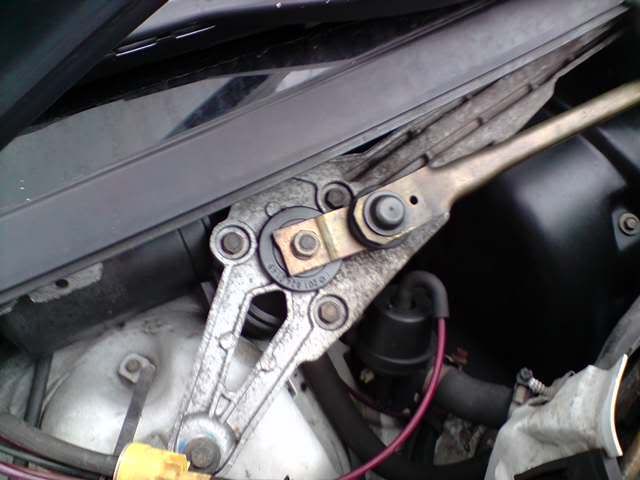

Right start by fully lifting the bonnet, next remove the 2 seals as shown in the video, then remove the bolt i point to in the video, there is one either side and they are 8mm. ![]() Now you need to remove 2 Phillips screws, but don't remove them all the the way, when they are just about out pull the screw and it'll bring the back part of the clips out. ![]() Now remove the cover from the wiper arm as show in the video. ![]() Now remove part of the bulk head seal the remove the scuttle panel, as shown in the video. ![]() Next turn the ignition on and start the wiper then turn the ignition off when the wiper get 1/4 of the way across the screen revealing this ![]() This is the oil i used ![]() This video shows all the parts i lubricated, ![]() Now start the wiper up and let the oil work it's way into all the joints ![]() Now you can put it all back together the wiper has to be either 1/4 or 3/4 across the screen to slot the scuttle panel back in. i hope this guide has helped you, and i apologies for the poor videos I'm a man it's hard to multi task :lol: Here is a few more pics i took. ![]() ![]() Nearly back togeather. ![]() Make sure this seal is on the outside as shown; ![]() Job Done! |
![]() |
|
| Johan.C | Fri Mar 28, 2008 9:45 pm Post #2 |
|
Part of things
![]() ![]() ![]() ![]()
|
Not to be picky, but that will just be a temporary solution. btw, thear is a gasketseal just wear the arm goes inside the gearhose, so the oil will just drain away after a coupel of times. IF the wiper have a problem to make a smoth, quick wipe, its the gear-grease inside the gearhouse thats need to be re-newd whit new gear-grease. GREASE is the only alternative, oil will leak out. I have done this 2 times and its makes huge differens. |
![]() |
|
| MBZ190D | Fri Mar 28, 2008 9:49 pm Post #3 |
![]()
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Well what i did fixed mine, it was just about stopping, it's been fine since i done this and that was months ago so it worked for me. |
![]() |
|
| 61jason61 | Fri Mar 28, 2008 9:51 pm Post #4 |
![]()
LEGAL BY-WAY!!
![]() ![]() ![]() ![]() ![]()
|
i had a problem the first time it rained in the 230. worked on slow, just, but stopped when on fast. all i did was put on slow speed, and spray wd40 under the base of the wiper and help it along with my hand. did this twice and been good as gold since. |
![]() |
|
| 61jason61 | Fri Mar 28, 2008 9:59 pm Post #5 |
![]()
LEGAL BY-WAY!!
![]() ![]() ![]() ![]() ![]()
|
this should be pinned. great 'walkthrough' for wiper repair/removal. |
![]() |
|
| kentronix | Fri Mar 28, 2008 10:17 pm Post #6 |
![]()
I'm only really here for the Kitchens
![]()
|
wow, great detail matey !!! Vid makes it so much clearer. So you dont have to remove the rounded plastic part and grease it in there ? I guess the oil will soften up the old 20 year old grease. |
![]() |
|
| MBZ190D | Fri Mar 28, 2008 10:44 pm Post #7 |
![]()
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
TBH i don't think you can open the turtle thingy. |
![]() |
|
| kentronix | Fri Mar 28, 2008 10:51 pm Post #8 |
![]()
I'm only really here for the Kitchens
![]()
|
I have never done it but aparently you can :- http://www.mbclub.co.uk/forums/showthread.php?t=28453 I think your way may be fine, the oil or wd 40 will rub on the hardened grease on the inside and gradually loosen and soften it spreading it on the shaft. Thats my thoughts anyway. [EDIT] looks like I was wrong, assuming ours is the same as the w124 then it is held on with three allen bolts from underneath that are inaccessible until you take the assembly off. moved and pinned. Most wiper threads are in this section so best to put it where people look. ps, I just popped out and did mine, what a difference, Hopefully it will work above 70 now. I love late night car maintenance
|
![]() |
|
| MBZ190D | Sat Mar 29, 2008 3:54 pm Post #9 |
![]()
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Cheers Kenny, thanks for pinning it!!! I'm glad it's made a differance to yours! |
![]() |
|
| mdavison | Tue Aug 25, 2009 5:32 pm Post #10 |
|
Part of things
![]() ![]() ![]() ![]()
|
I'm not so sure on how you've done it.... feel free to correct me, but if you take out the wiper mechanism there is a sliding mechanism. If I remember correctly a metal arm which reciprocates in a rectangular slider housing, this is surely the part that needs greasing with a proper grease that won't wash or drip off? |
![]() |
|
| stwat | Tue Dec 29, 2009 12:21 am Post #11 |
![]()
|
The mechanisms on the C class and later mercs have a plastic cover that can simply be unclipped. The 190's are metal and the mechanisms are much more reliable by all accounts but the covers need to be unbolted from underneath. The way i recently did mine was to remove the wiper mechanism and motor. On the underside of the mechanism you will see the screws that hold the cover plate on. I simply could not get mine undone and started to strip the heads of the screws so gave up. But i did notice that there are 4 small holes. So i used a spray can of white grease and liberally sprayed lots and lots into these holes using the red plastic extension part that comes with the can.(like the one you get with WD40)Making sure to spread it around as much as possible. I probably used about half a can as i didn't want to have to do it again in the near future. I also sprayed some on the shaft at the bottom of the wiper arm. This totally cured the problem i had been having of the wiper slowing down mid screen. |
![]() |
|
| KENWOOD | Wed Mar 31, 2010 4:24 pm Post #12 |
|
Newbie
![]() ![]() ![]()
|
Hi all, my solution for the pre plastic covers ie aluminium was to drill a small hole in the base of the cover just big enough to allow the straw of a white grease aerosol to pass through. Bish bash bosh. Job done.
|
![]() |
|
| unclebenz | Thu Apr 1, 2010 10:36 am Post #13 |
|
Part of things
![]() ![]() ![]() ![]()
|
Lent my car to my partner to use while her car was being repaired and the wiper stuck on her yesterday, followed this tutorial and bingo it's working again, many thanks |
![]() |
|
| Yebo | Thu Jun 30, 2011 9:20 am Post #14 |
|
Newbie
![]() ![]() ![]()
|
Did mine last night. Excellent walkthrough, thankyou MBZ190D and www.mercedes190.co.uk! |
![]() |
|
| Chasesdragons | Tue Jan 8, 2013 10:01 pm Post #15 |
|
Part of things
![]() ![]() ![]() ![]()
|
This vid by Kent Bergsma explains the differences in thought above. The above tech obviously works from feedback. Bergsma takes an engineers view and attacks the actual problem head-on. KENT BERGSMA'S TUTORIAL The mechanism and possibly the method of fitment might be the same as in the W202. Here is a TUTORIAL ON R &R OF A W202 WIPER MOTOR Warmest Regards Edited by Chasesdragons, Tue Jan 8, 2013 10:20 pm.
|
![]() |
|
| smiffy | Mon Apr 11, 2016 12:09 am Post #16 |
|
just strumming me paws...........hum-de-hum!
![]() ![]() ![]() ![]() ![]() ![]()
|
excellent walk through mbz thankyou, the you tube video was even better. kent bergsma
|
![]() |
|
| stwat | Mon Apr 11, 2016 12:31 am Post #17 |
![]()
|
Kent is a legend
|
![]() |
|
| gasgas | Fri Oct 7, 2016 12:07 am Post #18 |
|
Part of things
![]() ![]() ![]() ![]()
|
I did three today, removing the whole assembly, dismantling, cleaning dried up grease out, regreasing, reassembling and refitting them. Unfortunately although I looked several times at Kent's excellent video I found it very difficult to replace the mechanisms, cracking a windscreen in the process. I would like to see a video of how it should be replaced on a RHD car. I strongly suspect that Kent didn't describe how to remove and replace the mechanism because of course his and the German ones would be LHD, and I expect the motor and chassis are easily replaced so not worth a tutorial. But one for a RHD car would be well worth doing, except I don't know how to put a video on here. |
![]() |
|
