dtm gearbox information?
Topic Started: Mon Dec 8, 2008 7:06 pm (3,699 Views)
dennisbots
Member Avatar
Part of things
[ *  * ]
Does anyone has information what gearboxes they used in the dtm?
Or maybe others sequential transmission's that can be used in the 190 16v?

Greetings Dennis
Offline Profile Quote Post Goto Top

Sev
I am a big Twat
[ *  *  * ]
pretty sure it's been refuted that the m3 gearbox was used, so that one's out
Offline Profile Quote Post Goto Top

dennisbots
Member Avatar
Part of things
[ *  * ]
A normal m3 does not have a sequential transmission.
But if i look at some video's of the dtm they seem have sequential transmission
(shifting only to front and back with no clutch) but i can be wrong.
I'm new to transmissions but it interests me quit a bit because the 16v gearbox is strong but it shifts to slow imo.
Edited by dennisbots, Mon Dec 8, 2008 7:52 pm.
Offline Profile Quote Post Goto Top

dennisbots
Member Avatar
Part of things
[ *  * ]
sorry my bad,
They seem to shift like normal.
I'm thinking to make the shift rods longer (under the car) so that the shift length go's a bit shorter and then make the shifting knob (in the car) longer so you can really hit it in the gears with some force.
And make the flywheel lighter so that the shifting go's a bit easier.
Also bronze shifting bushes go in, because the old one's where worn out, and i missed the gears sometimes when shifting fast.

Any more idea's to adjust the gearbox to make it faster to shift?
Offline Profile Quote Post Goto Top

Lewis 190E 2.5 16
Member Avatar
W201
[ *  *  *  *  *  * ]
Yes adding a few cm on the shifting rods has been done to get a quicker shift, as for the gearboxes used in DTM cars, I have very little knowledge of those...
Offline Profile Quote Post Goto Top

stwat
Member Avatar


Do they have straight cut gears of some kind?
Offline Profile Quote Post Goto Top

zoomer46
Member Avatar
More than part of things
[ *  *  * ]
i'm pretty sure the dtm box was nothing to do with the road 16v's,

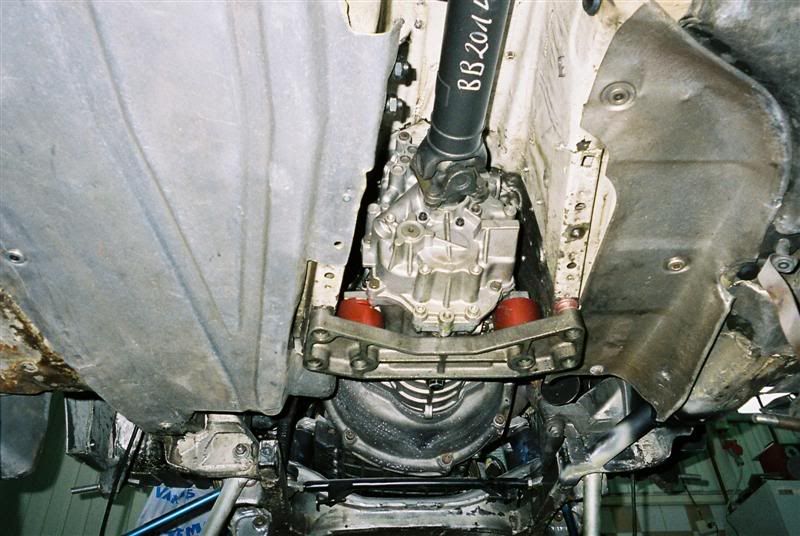

Posted Image

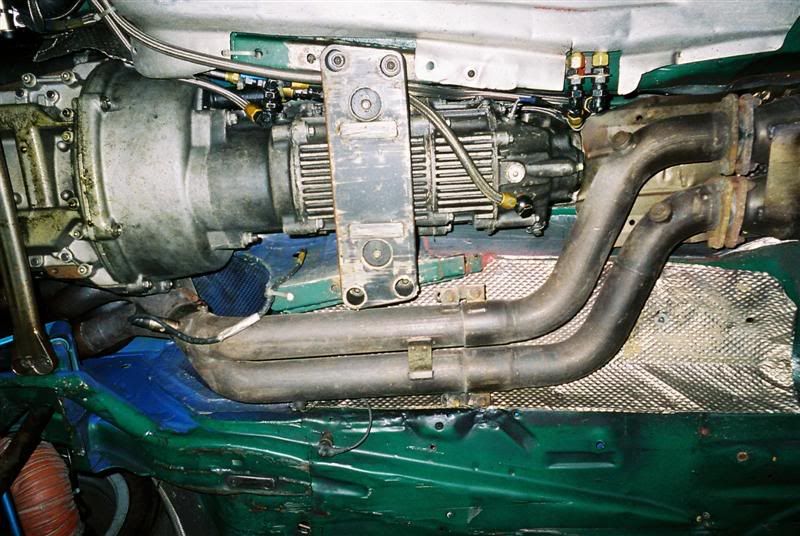

Posted Image

straight cut gears,power shifting facility,changeable ratio's .....

def not the same..

not too sure which make the dtm 's had but hollinger,hewland ,drenth,maybe quaiffe and xtrac too?
Edited by zoomer46, Tue Dec 9, 2008 1:37 am.
Offline Profile Quote Post Goto Top

matsalleh76
Matsalleh76. RIP. Gone But Never Forgotten.
[ *  * ]
Merc homologated both a 6 speed normal pattern gearbox and a sequential gearbox. I have no info on who made either but sequential gearboxes are available both from Japan and Australia: Google OS Giken and Hollinger Transmissions. Cost: ~US$10k

Regards,
bobf
Offline Profile Quote Post Goto Top

Chris Martens
Member Avatar
Part of things
[ *  * ]
Gentlemen,

there is not only one "DTM spec box" so lots of your information is right even if it doesn't fit into one gear box.

We are talking about a time period from 1985 (Snobeck started racing the valver in France) / 1988 (DTM started in Germany) to 1993 and there have been changes during this time. They startet with the 2.3-16 and a Getrag box with a looooong 1st gear, actually longer than the 2nd gear in the road box.

gear / standard / group A
I / 4.08 / 2.337
II / 2.52 / 1.681
III / 1.77 / 1.358
IV / 1.26 / 1.150
IV / 1.0 / 1.0

They ended in 1993 building class 1 monsters like that green one from sweden on the photos above that don't have very much in common with a road going 190.

regards,
Christian
Offline Profile Quote Post Goto Top

The Gorilla
Part of things
[ *  * ]
Hi,

Group A Getrag with long first gear [2.3] would not be much
use with the standard Merc 16v rear diff ratio.

You would need around 3.73 CW/P upwards to make the rev drop between
gears work on a track, on the road its different of course, but a
3.64 / 3.73/ even a 3.91 mated to the Getrag Close ratio box
with long first gear would work.

Hence why you see nearly all your DTM Cars running 4.45 and above, as they
are trying to keep the engine rev matched to the power band of
the engine in all gears.

Some of the Endurance cars did run 3.9 or 3.7 rear diffs, and with their
2.33 first, 3.7 diff, 18'' wheels and 9000 rpm would hit
60mph / 100 kmh in first gear.

No much use for a road car, but interesting at the Traffic lights though!!

The Swedish car looks to be running a Hollinger ? from Australia, which
given how narrow it appears in the photo may even be a sequential.
Most sequential gearboxes run oil coolers so that as well makes me think
its sequential.

Genuine Sequential Gearboxes are no good for road use, and you
really would not want to running one on the road.

Altering the length and pitch of degrees on most remote gear selectors
will shorthen the 'throw' and make the gearbox feel crisper.

Stiffer gearbox mounts will also assist, as I note that the gear
selector linkage on the 16v/s is not exactly simple and precise.

Does nobody make a replacement selector kit for these cars ?
and I am not referring to the 'bronze' bushes.

Regards,

The Gorilla.





Offline Profile Quote Post Goto Top

dennisbots
Member Avatar
Part of things
[ *  * ]
There is a old dtm 5.00 diff for sale.
I am thinking to buy this.
But it may be to short for a stock 16v gearbox to run on the street/track/drag with about 500hp and 9,000rpm? (centrifugal compressor)
A friend of mine had a e30 with a tuned 3.5L and he swapped around with long and short diff's and the car was not happy with a short diff.
It seemed to just not put the power on the road because of the short diff (to much shifting and no real acceleration)

And what exactly do you main with the replacement selector kit gorilla?
What can be made?
Very interesting
Offline Profile Quote Post Goto Top

zoomer46
Member Avatar
More than part of things
[ *  *  * ]
i think he means not just replacing the rod bushes, but the whole linkage set,when i get to work on my ca again,i'm thinking of making up a ball jointed rod set to get rid of all slack and also lengthen the 2 arms.
Offline Profile Quote Post Goto Top

The Gorilla
Part of things
[ *  * ]
Hi,

DennisBots- You should be able to pull a 3.4 or maybe even a 3.27 with
that sort of power, but forget DTM ratios for a Road car.

Zoomer46- I was thinking along the lines of the BMW Rod linkage,
Double shear rod, adjustable to be able to alter throw,
rod ended etc, just need some time to look at it and figure something
out.

Does anybody have a picture of a Gearbox out of the Car with
the linkage attached, and also one from underneath the
car, with the linkage in situ, please ?

Regards,

The Gorilla.

Offline Profile Quote Post Goto Top

matsalleh76
Matsalleh76. RIP. Gone But Never Forgotten.
[ *  * ]
"Torbjorn" in Norway has adapted a BMW M5 gearbox to a 16V bellhousing and posted photos of same on the 190Rev forum. A neat and sure shifting solution to the lousy Merc gearchange.

regards,
bobf.
Offline Profile Quote Post Goto Top

The Gorilla
Part of things
[ *  * ]
Hi,

Matsalleh76- I was reading about that early this morning.

Surprised that more have not done the C36 AMG Engine conversion
into the 16v.

I read that his C36 Engine is being rebuilt and that he was
running a c280 with supercharger.

There are a few about, nice Time Attack Car in Japan, and
a very nice road car conversion was done in the UK a couple
of years ago, never see much about it though.

C36 AMG, simple way to 300 BHP plus if you do not mind
a little extra weight up front. Genuine AMG engine Internals
as well.

Am I correct in that part of the Mercedes problem is that it has
side activated selector rods ?
Most BMW Getrag boxes are single rod selectors, central at the rear, which
makes SSK easy, and there are numerous aftermarket kits
about.

Not sure why Mercedes /Getrag altered the selector rods on the 16v Box ?

Regards,

The Gorilla.



Offline Profile Quote Post Goto Top

RobertE
Member Avatar
Serial victim...
[ *  *  *  *  *  *  *  *  * ]
Quietness, I imagine, but that need not concern us...
Offline Profile Quote Post Goto Top

Evo2racer
Part of things
[ *  * ]
Very interesting post!! eatpopcorn


If i am not mistaken untill 1993 and therefore started after the evo's they were not using sequential gearbox in dtm... They only started with the 1993 - 190 klass1.

Regardless, it can be adapted to our cars and Thorsten Stadler sells them for around eur 13'000.
Check out this awesome video of an evo2 race-car with a sequential gearbox rockon
http://www.youtube.com/watch?v=1VcZ8Sqnd9o

I saw it this week end in Germany its insane!
Edited by Evo2racer, Wed Mar 26, 2014 9:46 am.
Offline Profile Quote Post Goto Top

Mohammad
Member Avatar
weneakhborz
[ *  *  *  *  * ]
I love this Kind of Information Flow....keep the Posts Flowing.
Offline Profile Quote Post Goto Top
