Leaking windscreen seal; Help required please
Topic Started: Fri May 8, 2009 8:49 am (1,287 Views)
aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Noticed a small leak inside the cabin when driving last night. Water is being forced in through front screen seal half way up on drivers side. Seal can be lifted off screen easilly. Is it just a matter of cleaning and putting a bead of silicone under the length of the seal or more involved.
Offline Profile Quote Post Goto Top

MadMike
Therapy Needed
[ *  *  *  *  *  * ]
Do you have windscreen cover on your insurance ? If you screen were to be.........er, mysteriously damaged ...... perhaps by some unknown vandals.....then you could get it sorted for nothing,
Offline Profile Quote Post Goto Top

shrekky
Member Avatar
Troll hunter
[ *  *  *  *  *  * ]

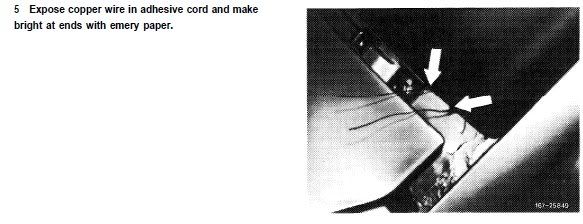

if it is the original windscreen ,fitted by mercedes.................it can be re-sealed :o .if you remove the bottom trim of the windscreen,right above the battery you will see 2 exposed wires

Posted Image


connect them to a 12v supply,let it heat up..............then when heated up ,apply a little pressure to the side thats leaking,disconnect it,keep the pressure on as it cools down.............and that should re-seal it ;)

Posted Image

Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Thanks Shekky. Will have a look.
Offline Profile Quote Post Goto Top

Rich27
Member Avatar
Admin

aemt
Fri May 8, 2009 9:15 am
Thanks Shekky. Will have a look.
Let us know how you get on.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Unfortunately no wires. Looks like the original seal must have been replaced at some stage. Any other ideas gratefully received
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
A closer inspecton of the windscreen shows delamination starting bottom passenger side and rising. Guess it is a new screen then on the insurance just to be on the safe side.
Offline Profile Quote Post Goto Top

olliecampbell
Part of things
[ *  * ]
That's excellent tip, never knew such a feature existed!
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

I jammed as much geocell in there (I think thats the name), its a silicone gell for sealing fishtanks. Very flexible and easy to get into small spaces. And clear. Much better than normal silicone sealant although its a bit more expensive.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Did you remove the black window seal Kenny, If so how does it come away and more importantly go back
Edited by aemt, Fri May 8, 2009 7:23 pm.
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

I have only done it on the side windows in the cargo area of the veg, can you lift the front rubber and squirt it in there ?
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
kentronix
Fri May 8, 2009 7:13 pm
I have only done it on the side windows in the cargo area of the veg, can you lift the front rubber and squirt it in there ?
Thats what I was going to try in the absence of any other advice
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

I just double checked and its called geocel (one L), you can find it on ebay.
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Thanks Kenny
Offline Profile Quote Post Goto Top

aemt
Serial 190E Owner
[ *  *  *  *  *  * ]
Does anyone know how to remove and then replace the black trim that fits down the sides of the front windscreen please? I need to reseal the screen on the drivers side
Offline Profile Quote Post Goto Top

alogaparaloga
Member Avatar
crazy mind
[ *  *  * ]
I think that it's held in place with 3 screws per side of the wind screen.
Offline Profile Quote Post Goto Top

alan
Member Avatar
hmmmm interesting
[ *  *  *  *  *  *  * ]
is it not just clipped on and off
Offline Profile Quote Post Goto Top
