12 point star drive for rear suspension bolts
Topic Started: Fri Aug 14, 2009 1:00 pm (1,545 Views)
khimani_mohiki
Part of things
[ *  * ]
I won this rear arm kit on ebay,
Ebay link

Its made by TRUCKTEC Automotive and appears to be pretty decent quality, all the arms are powder coated and the bolts are all zinc coated.

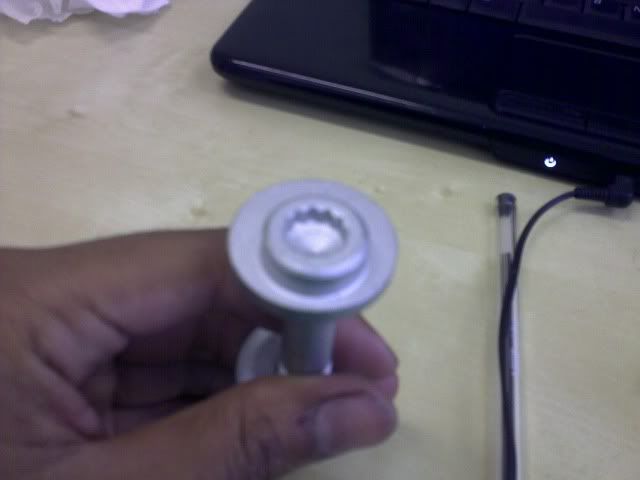

However some of the bolts have a 12 point star socket on them
Posted Image

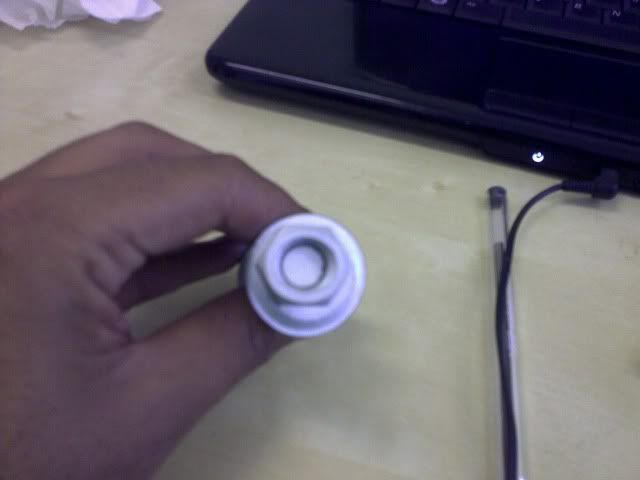

and the nuts appear to have been crushed slightly to an oval at one end, i guess to lock the nuts on
Posted Image

So where can i get 12 point drives so i can get on with putting these arms in? Ive had a quick look on machine mart but dont really know what to search for, im sure they will have a proper name or code or something.

Thanks
Offline Profile Quote Post Goto Top

alogaparaloga
Member Avatar
crazy mind
[ *  *  * ]
I think it's an XZN type bolt.
If you search for star bit kit be careful as many online places call 'star' the torx bits.
or try to search as 12 spline star bolt. that may bring the right tools up
Offline Profile Quote Post Goto Top

khimani_mohiki
Part of things
[ *  * ]
looks like the drive might cost more than the suspension arm kit.
Offline Profile Quote Post Goto Top

Benzsc1
Member Avatar
Createyourownexit.com
[ *  *  * ]
Thats a spline drive not a torks bit simlar to what you need to remove most German engine cylinder head bolts maybe a difference is size though.
Offline Profile Quote Post Goto Top

ThankYouLord
Member Avatar
More than part of things
[ *  *  * ]
Halfords sell them

They are MULTI SPLINE, so that's either an M12 or an M14 - can't remember which one of top of my head.

A rail full of them, mounted in 1/2" drive sockets should be no more than 15 quid - macvhine mart do sell them, just ring and ask for 12 point multi spline sockets.

For the cylinder head, they need to be long reach and they are more expensive but it's the same tool head.

12 Point Multi Spline.

Hope that helps
Offline Profile Quote Post Goto Top

shrekky
Member Avatar
Troll hunter
[ *  *  *  *  *  * ]
khimani if you're replacing the all the arms.......................you'll need to get a grinder and a good chisel,because they wont come off willing .......the bolt corrodes to the alliminum insert in the arms..........i know i've just done mine......lol
Edited by shrekky, Fri Aug 14, 2009 6:04 pm.
Offline Profile Quote Post Goto Top

khimani_mohiki
Part of things
[ *  * ]
yeah im anticipating a struggle, i live in a tower block so dont have an electric to use a grinder, was thinking about hiring out a small generator for a weekend for about £40. Or maybe just take it to a garage, i saved quite a bit on the kit so wouldnt mind paying a couple of hour labour
Offline Profile Quote Post Goto Top

shrekky
Member Avatar
Troll hunter
[ *  *  *  *  *  * ]
a few hours ?......lol...................try 4 hours per side :S ........lol



Edited by shrekky, Fri Aug 14, 2009 7:48 pm.
Offline Profile Quote Post Goto Top

Richy190E
Member Avatar
bubble bubble
[ *  *  *  *  *  * ]
I got mine off in about 45 mins for both sides...but I have just treated myself to a brand new 2 post ramp :)
Offline Profile Quote Post Goto Top
