Noisey Rear Suspension; 2.5 16V
Topic Started: Sat Nov 7, 2009 8:32 pm (979 Views)
Tim29
Member Avatar
Part of things
[ *  * ]
My rear suspension has started creaking and has gradually gotten worse. If you push the boot up and down it can be heard and also when going over the slightest bumps on roads (Been getting some pretty funny looks :$ ) I am fairly sure its from the drivers side although its hard to be certain.

From the service history I can see it had the O/S/R SLS strut replaced about 8 months ago and had 2 new spheres about 4 years ago. All genuine Merc parts so I assume should still be fine?!?

I had a look under it today and couldn't see anything obviously wrong and it seems to drive spot on as well. Any ideas as to whats up?

Tim
Offline Profile Quote Post Goto Top

cossie connoisseur
Member Avatar
there can be only one ;-)
[ *  *  *  *  *  *  *  *  * ]
could be all sorts chap, rear arms, even rubbing on exhaust. needs a good look
Offline Profile Quote Post Goto Top

Ukmerctechie
Member Avatar
Dir is Kool. WKKP Forever!
[ *  *  *  * ]
Lower rose joint most likely.
Offline Profile Quote Post Goto Top

cossie connoisseur
Member Avatar
there can be only one ;-)
[ *  *  *  *  *  *  *  *  * ]
which one is that andy?
Offline Profile Quote Post Goto Top

Ukmerctechie
Member Avatar
Dir is Kool. WKKP Forever!
[ *  *  *  * ]
Lower rose joint in the hub,attaches the lower arm to the hub.
Very common for the dust boot to get damaged and water to get into the joint,allowing it to rust internally and creak.
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Thanks for the help, I'd guess it would need doing on both sides then...any ideas how many hours labour this would take a Mercedes specialist? Or could it be done by myself?

Also do you have a part number for the lower rose joint?

Tim
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
I took it in to a Mercedes specialist for a diagnostic look. They reckon its the rose joint on the bottom of the strut...which means it needs a new strut! Bit disappointed considering it was allegedly a brand new Mercedes part less than a year ago.

They showed me the car up on the ramps and moved the joint with a flat head screw driver and it did make the same noise so I guess its correct diagnosis?! They are going to get back to me with a quote to replace the rear strut.
Offline Profile Quote Post Goto Top

Nathan
Member Avatar
Nordschleife Taxi
[ *  *  *  * ]
No chance of renewing just the rose joint then?
Offline Profile Quote Post Goto Top

Will
Member Avatar
Highly Addicted
[ *  *  *  *  * ]
If it genuinely is the strut that has failed (and as a result of poor quality of the part, rather than a consequential failure due to something else) then I'd take it back to your local dealer for a replacement - genuine parts come with a 2 year warranty.

Will
Offline Profile Quote Post Goto Top

cossie connoisseur
Member Avatar
there can be only one ;-)
[ *  *  *  *  *  *  *  *  * ]
yep will's right take it back
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Nath_XPR
Tue Nov 17, 2009 10:41 pm
No chance of renewing just the rose joint then?
From the diagram I was showed it is all one piece and one part number. Probably deliberate so as to maximise profits :X

I only bought the car in August and don't have a receipt for the actual strut, only an invoice from a specialist saying the O/S/R strut was renewed. Can't see how I'd be able to prove the age of the strut from this?!

If I do get it changed I'll get the old one back and see what can be done. As its in perfect working order other than the rose joint it must have some 2nd hand value or maybe useful for spares!

On the plus side they were quite complimentary of the car which is always nice to here :D

Tim
Offline Profile Quote Post Goto Top

vaggeli
Member Avatar
supervillain in training
[ *  * ]
ive just had the exact same thing happen, and its bloody annoying as i just got the SLS and everything sorted 3 weeks ago, im rather peeved. really hope its a cheaper fix than a new strut though... i dont want to cut into the cash id set aside for paintwork...
Edited by vaggeli, Thu Nov 19, 2009 2:34 am.
Offline Profile Quote Post Goto Top

cossie connoisseur
Member Avatar
there can be only one ;-)
[ *  *  *  *  *  *  *  *  * ]
was it all mb items? and who fitted it?
Offline Profile Quote Post Goto Top

Marv
Member Avatar
Evo II Wheel
[ *  *  *  * ]
I've had them done on mine at Ukmertechie's garage and i'am sure it did'nt have new struts.
Offline Profile Quote Post Goto Top

vaggeli
Member Avatar
supervillain in training
[ *  * ]
my mechanic looked at it today and texted me that he'll sort it for 20 quid... havent spoken to him yet (its round the corner from my house and i just left the car there as didnt need it today)
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Hmmm, well its booked in to have a new strut on Tuesday and I've asked for the old one back so will see what's what. As I'm at uni atm I can't really look at it myself as I don't have any tools with me so I'm going to have to go with what they say I guess. From what I can tell it seems to be a fairly well respected specialist and the complex certainly impressed me so I've no reason to doubt their know how.

Based on this diagram:

Posted Image

Its the mounting in the bottom hole that has failed, which doesn't seem to be available as a separate part, unless anyone knows otherwise?

Tim

Offline Profile Quote Post Goto Top

Marv
Member Avatar
Evo II Wheel
[ *  *  *  * ]

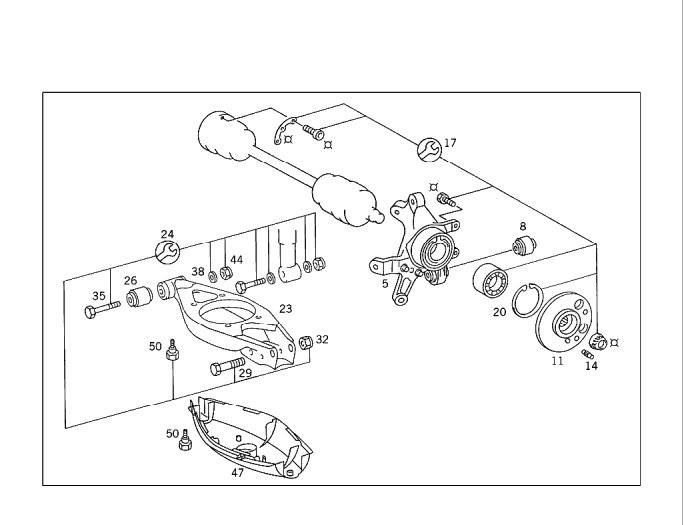

Number 8's the lower rose joint, nothing to do with the strut.

Posted Image
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Yes that is fine on mine. According to the specialist there is a rose joint within the strut mounting. It is this that has failed on my car.

Tim
Offline Profile Quote Post Goto Top

vaggeli
Member Avatar
supervillain in training
[ *  * ]
ok, well spoke to the mechanic, and he changed the thing he thought it was (bush on the end of the big suspension arm thing), but also found that the bottom mount of the shock absorber is making noise also, sprayed it with some magicky fluid and it seems fine now...he did however recommend i ask you guys what you think?
Offline Profile Quote Post Goto Top

bolide
Bolide
[ *  * ]
On a W124 estate bush #8 can make a creaking noise when pulling away slowly. It's replaceable separately from the leg

Nick Froome
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Got the car back today, suspension is now completely silent!

After contacting me they've replaced both the rear strut and bush number 8 as it fell apart when they dismantled the hub. I do wonder if the strut did need replacing but I don't really have anyway of knowing for sure. I've got the old strut back and its definitely pretty new, so I'd say it was new last December.

Considering the work done I'd say the bill was reasonable at £345 all in.

It was a different specialist to who I usually use and I probably would use them again if needed.

Does go to show how the 16V really is in a completely different league to the 8V, to have both my rear shocks changed on the 8V came to under £100 including parts and labour!

Tim
Offline Profile Quote Post Goto Top

Will
Member Avatar
Highly Addicted
[ *  *  *  *  * ]
Who was the specialist Tim? Always nice to hear a positive report about somewhere who have provided good service :)

Will
Offline Profile Quote Post Goto Top

Tim29
Member Avatar
Part of things
[ *  * ]
Specialist was Autotechnic in Norfolk, there was actually a rather nice modified blue-black 2.5 16V in there yard. Any bodies here? They parked mine next to it when I collected it. The two together looked quite cool, if I work out how to get pictures off my phone on here I'll upload one.

And there was a K-reg 8v which also looked nice although I didn't see it up close.

Tim
Offline Profile Quote Post Goto Top
