Alternator Q....; does it use a woodruff key?
Topic Started: Tue Mar 30, 2010 7:57 pm (768 Views)
Uk Merc Man
Member Avatar
190e Leg-End
[ *  *  * ]
hello :)

does a 190/e alternator use a woodruff key on the shaft where the pulley goes? dismantled it yesterday to refurb. upon reassembly it would appear it might do but mine is missing - possibly dropped when pulling it apart.....would usually look at the russian site but its been down for ages....

anyone got an exploded diagram to hand.. lol!

thanks.
Offline Profile Quote Post Goto Top

shrekky
Member Avatar
Troll hunter
[ *  *  *  *  *  * ]
i dare say it would steve,i havent come across any alternator that doesnt

Offline Profile Quote Post Goto Top

Will
Member Avatar
Highly Addicted
[ *  *  *  *  * ]
Hi Steve,

Have you tried the other Russian parts site:-

http://translate.google.co.uk/translate?u=http%3A%2F%2Fwww.partscatalog.ru%2Fmercedes%2FF%2F%231%2F&sl=ru&tl=en&hl=en&ie=UTF-8

Looks like a woodruff key to me :)

Posted Image

HTH B)

Will
Edited by Will, Tue Mar 30, 2010 8:52 pm.
Offline Profile Quote Post Goto Top

Uk Merc Man
Member Avatar
190e Leg-End
[ *  *  * ]
cool, thanks. best getting looking on the floor for that!
Offline Profile Quote Post Goto Top

MickBee
Member Avatar
MickBee
[ *  * ]

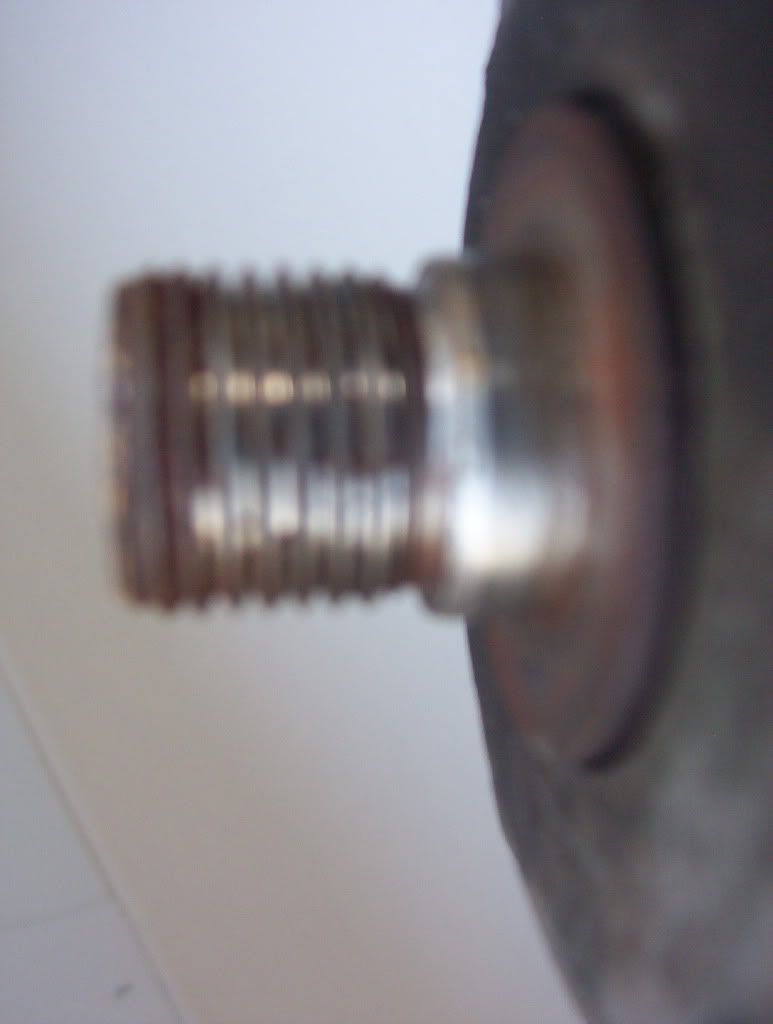

Mine dosen't have one. There isnt room for one. They are are just held on with the nut and nowt else.

Posted Image

sorry for the sh*t picture :rolleyes:
Edited by MickBee, Thu Apr 1, 2010 7:18 pm.
Offline Profile Quote Post Goto Top

Uk Merc Man
Member Avatar
190e Leg-End
[ *  *  * ]
cool - if i cant find it i can just do it up a bit tighter.... ;)
