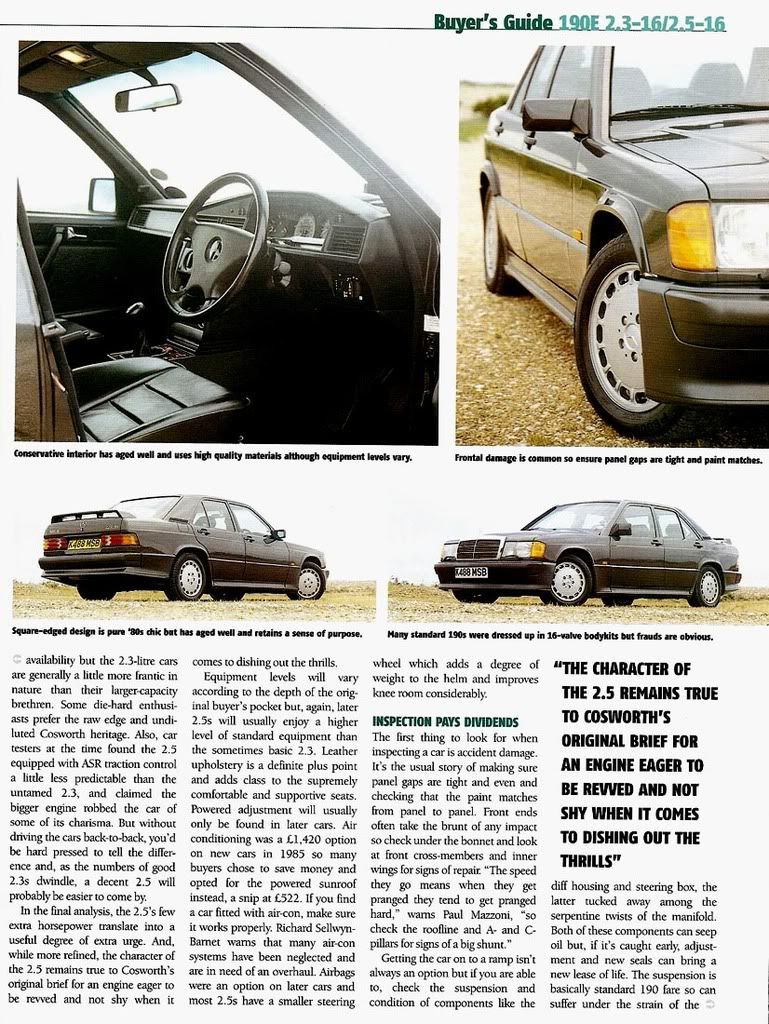

Useful scans (Data, ads, road tests, etc.) 16V stuff added inc buying guide!; Launch dates & model changes for our cars!; Updated 14/6/11
Topic Started: Thu Dec 4, 2008 3:53 am (11,332 Views)
Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

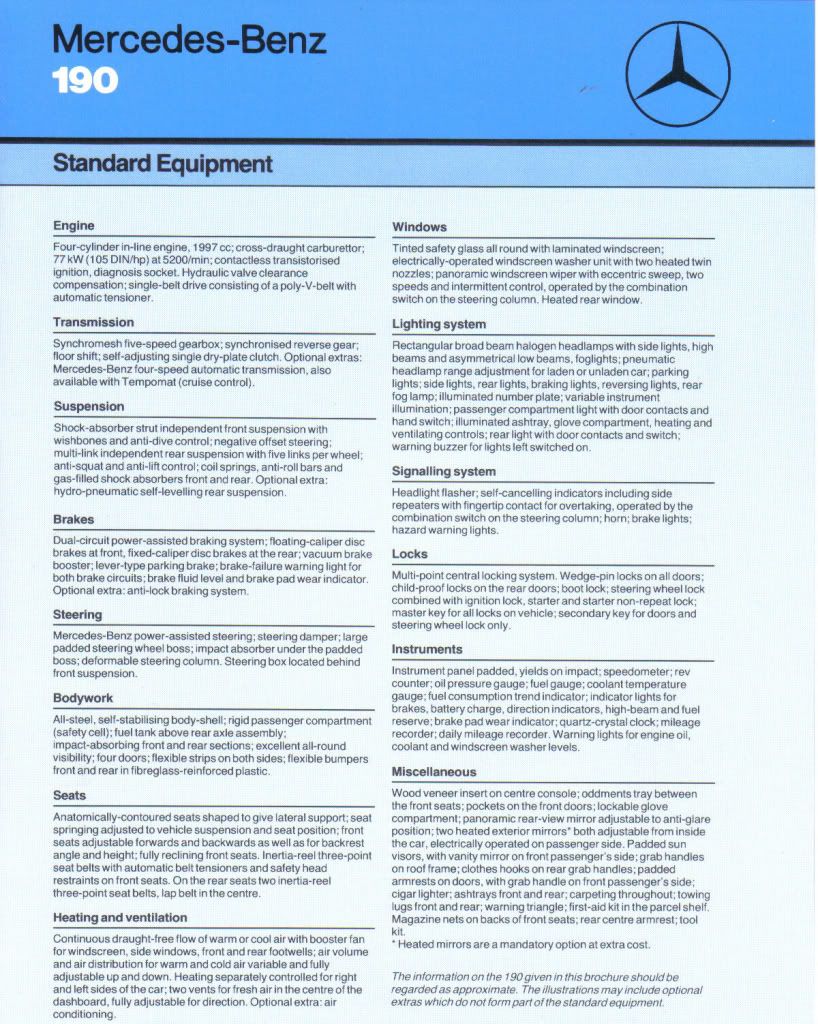

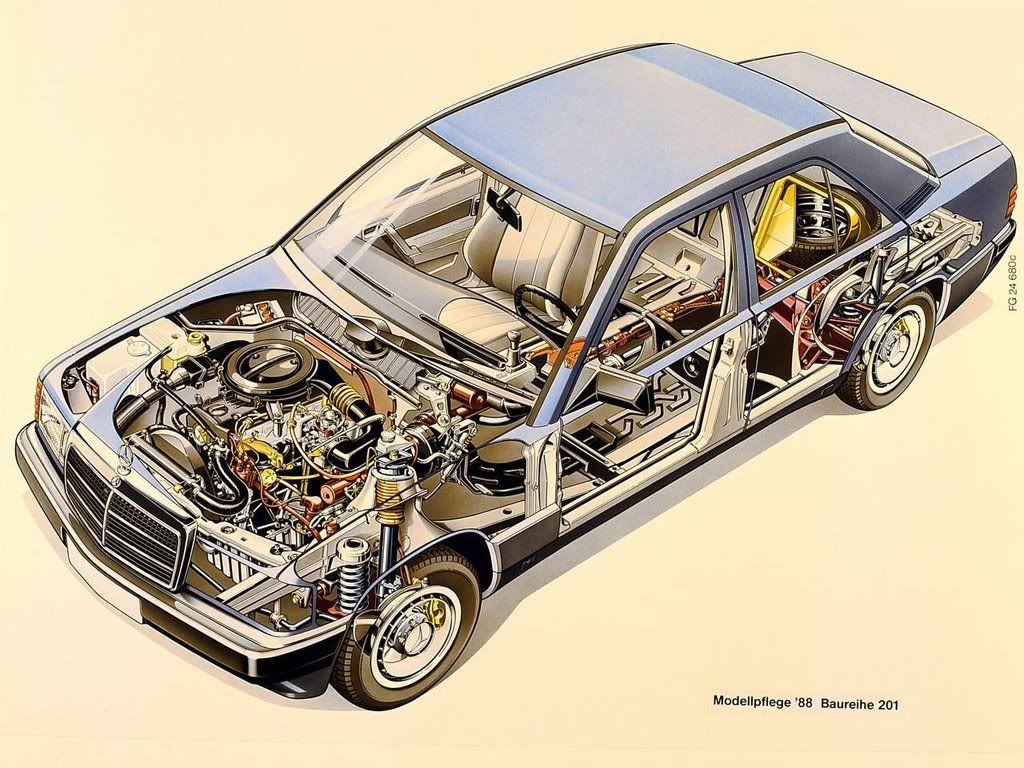

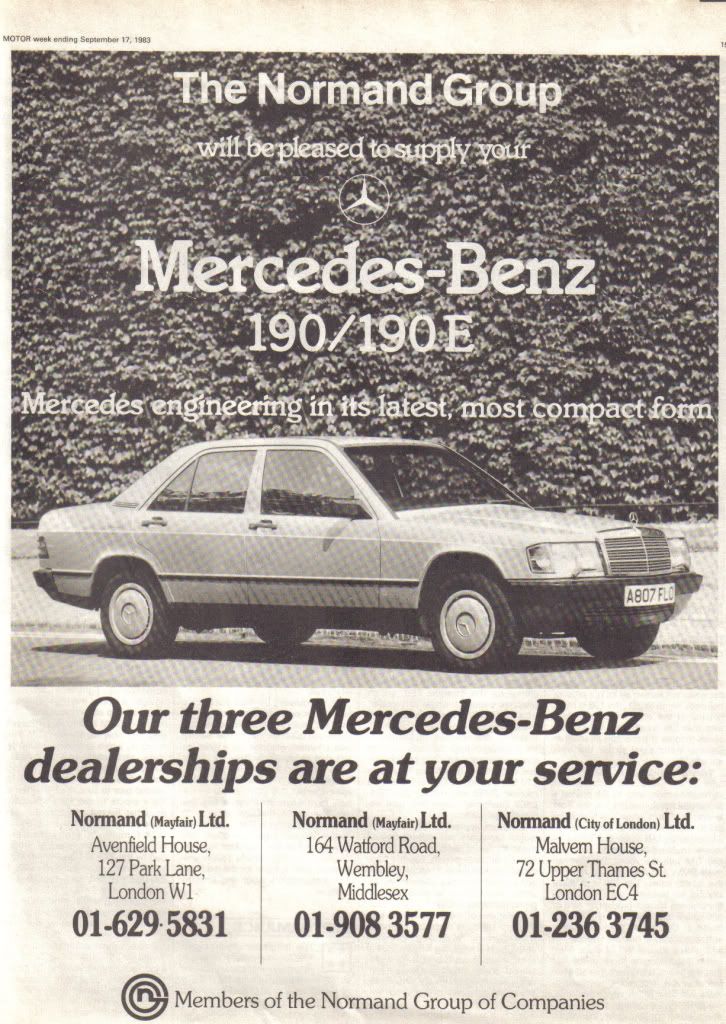

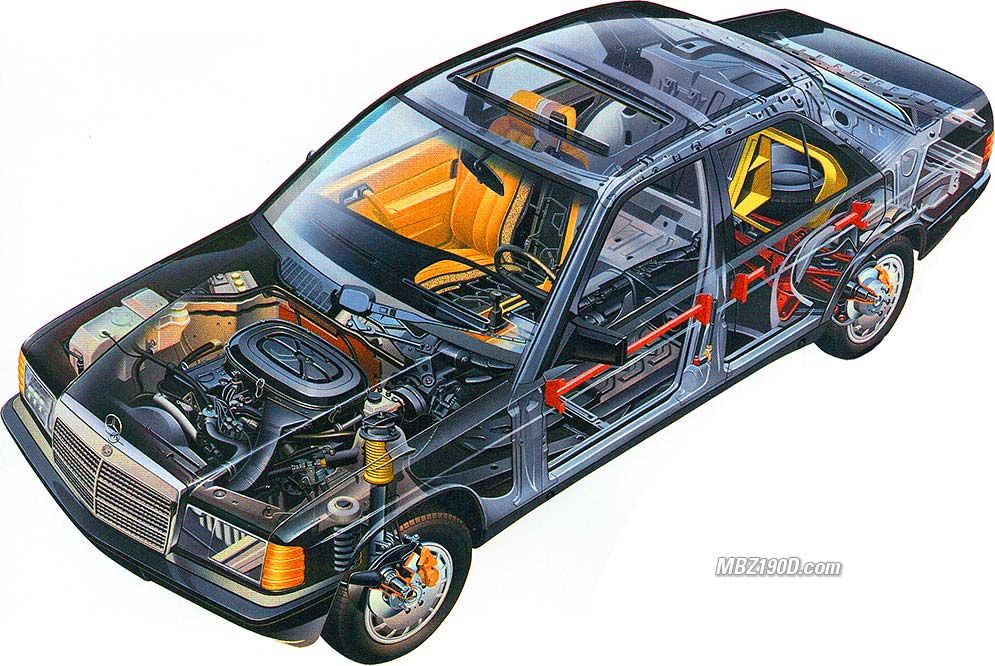

Thought these may be of use, text in german on some but interesting pics!!!

EDIT; Re-scanned 2 data sheets that were here, now added further down age!!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Edited by Stempies, Sun Dec 21, 2008 1:31 am.
Offline Profile Quote Post Goto Top

Russell
Needs Help
[ *  *  *  *  *  *  * ]
Superb!!!! Loving them.
Offline Profile Quote Post Goto Top

Neil
Newbie
[ *  *  *  *  *  *  *  *  * ]
Thanks a lot Stempies, they're absolutely brilliant.

The seats in this look amazingly snug!
If you 're gonna do an all-cream interior, that's how you do the dash. Very cool.

Posted Image
Offline Profile Quote Post Goto Top

Russell
Needs Help
[ *  *  *  *  *  *  * ]
love that spoiler!
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

that first sheet is where the print place got the pics for those mugs. great info thanks for sharing.
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
Will add more to this thread as i sort through my years of 'clutter'!! ;)

I knew my hoarding would be useful one day!!
Offline Profile Quote Post Goto Top

RM Merc 190
Member Avatar
Addicted
[ *  *  *  * ]

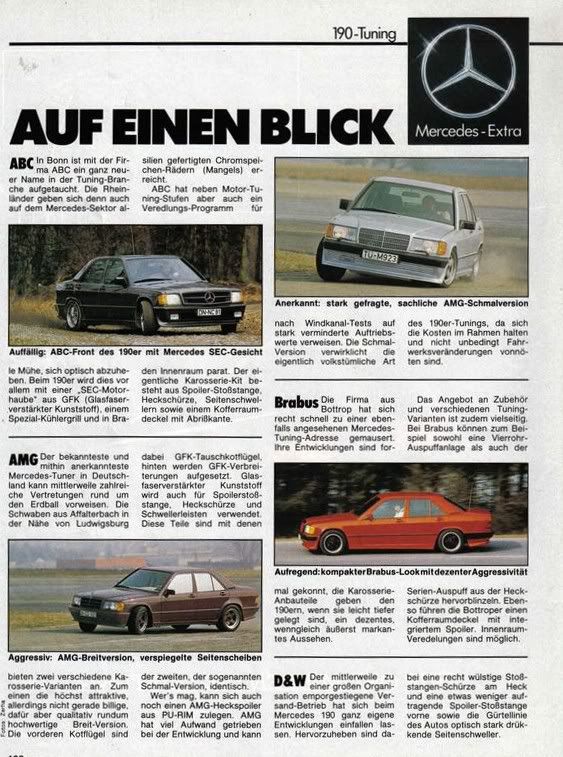

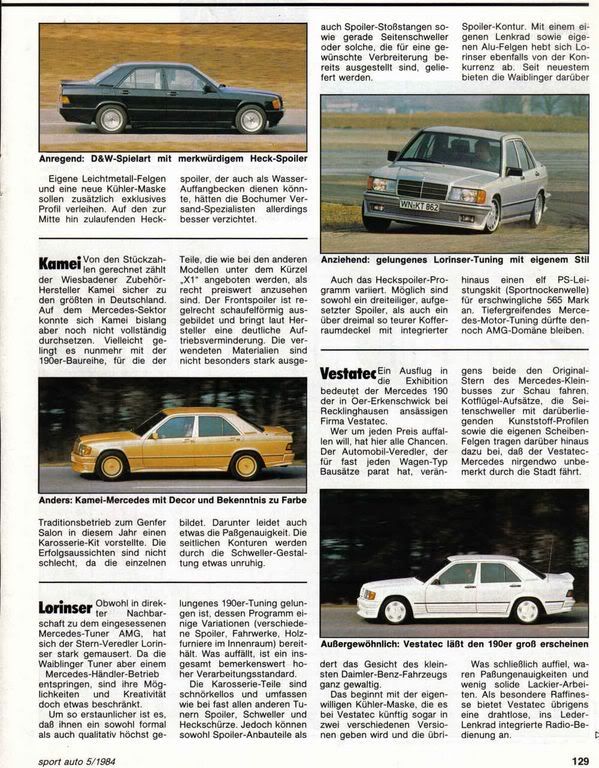

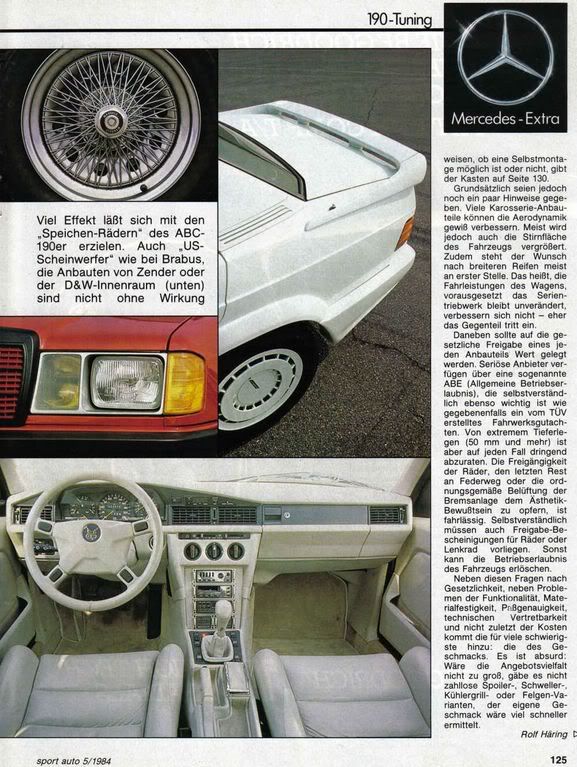

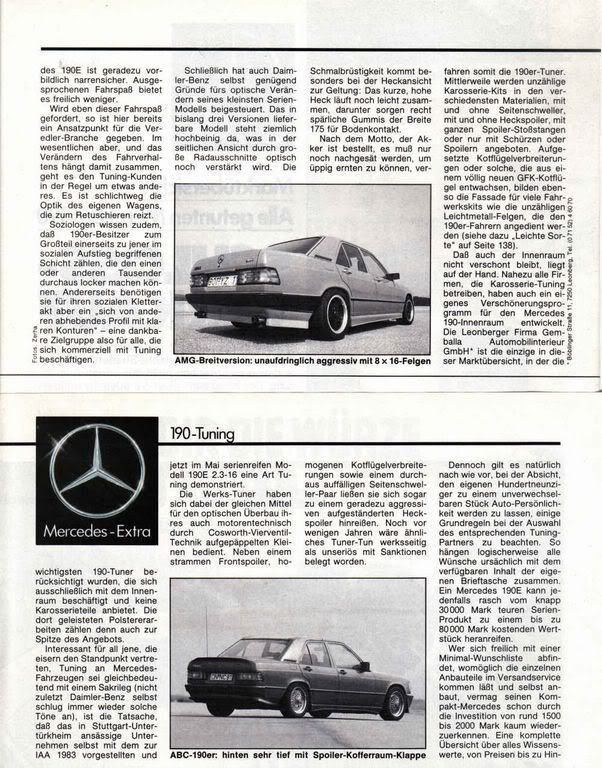

Cool, thanks, the Tuners page is pretty cool, shame it's in German :(
Offline Profile Quote Post Goto Top

Russell
Needs Help
[ *  *  *  *  *  *  * ]
Theres a burple 190E going about my area with an SEC grille. Ill need to try and take a snap of it or talk to the woman the next time i see hee in it!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
Launch dates & model changes for our cars!

Thought i'd start listing a few important dates for UK spec 190's.

My books only go up to 1990 so will update when i find more (or if you have any!! ;) )

1982
Dec - 190 launched at Frankfurt Motorshow!

1983
Aug - Prototype 16v clocked an average of 154mph over 25,000km, 25,000miles & 50,000km in 8 days & nights at Nardo test track!!!
Sept - 190 & 190E launched in UK. (1st Chass. no. ............001440)
Dec - Zebrano wood on centre console.

1984
March - Magazine nets on seats.
Oct - 190D 2.0 launched. (1st Chass. no. ............042091) Heated door mirrors introduced. 2.0 Carb increase from 90bhp to 105bhp!

1985
Jan - Panoramic wiper & multi-point locking introduced.
June - Side repeaters.
July - 2.3-16 launched . (1st Chass. no. ............134550)

1986
Aug - 190D 2.5 launched(5 cyl!). 2.5D turbo launched (U.S & Europe only)
Oct - 190E 2.3 launched (U.S. & Europe only??)
Nov - Heated mirrors now std!.

1987
Jan - 190E 2.6 launched(6 cyl).
Feb - ASD replaces LSD on 16v.

1988
Sept - Range facelift (cladding, new bumpers etc). Height adj. front seat belts & better rear legroom. Improved 5-speed gearbox
Sept/Oct - 2.5-16 launched.. 2.3-16 dropped.

1989
March - Evo 1 launched

1990
March - Evo 2 launched.
June - 190E 1.8 launched.. 190 Carb dropped.

1991
???? - Sportline options introduced for 2.0 and 2.6 models - chassis and steering sport pack & interior options

1992
???? -

1993
???? - LE launched 1000 made (each with numbered certificate) in red, blue or silver.
Aug - Production ceased.

........................................................................................
Total 190's built =1,874,668 built
(including 16v figs. below)
190E 2.3-16.-- 19,487
190E 2.5-16.-- 5,743
190E 2.5-16 Evo I. --502
190E 2.5-16 Evo II.-- 502
.........................................................................................


I have taken the above from various books (don't trust the interweb stuff!), but if you know better on some dates please let me know!!






Edited by Stempies, Mon May 10, 2010 11:53 pm.
Offline Profile Quote Post Goto Top

nullogik
Member Avatar
More than part of things
[ *  *  * ]
I think this thread might be worthing making a "sticky" - once its completed.
Edited by nullogik, Wed Dec 10, 2008 2:03 pm.
Offline Profile Quote Post Goto Top

hitenb
Member Avatar
Addicted
[ *  *  *  * ]
Great information!! Thanks for sharing, you must have a lot of 190E related books at home!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
I'm a total hoarder!!!!!!!!!!!!! :lol:

Also have many tech books with most orig figs, settings & clearances!!
Edited by Stempies, Wed Dec 10, 2008 2:20 pm.
Offline Profile Quote Post Goto Top

hitenb
Member Avatar
Addicted
[ *  *  *  * ]
Stempies - resident 190E data source!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
hitenb
Wed Dec 10, 2008 2:21 pm
Stempies - resident 190E data source!

Not quite!! :lol:
Amazing that all the stuff i kept, thinking, 'it'll come in handy one day',................. actually has!!!
Edited by Stempies, Wed Dec 10, 2008 2:41 pm.
Offline Profile Quote Post Goto Top

Tim.W
Member Avatar
Kick-down Crazy
[ *  *  * ]
1991 - Sportline options introduced for 2.0 and 2.6 models - chassis and steering sport pack & interior options ;)
Edited by Tim.W, Wed Dec 10, 2008 2:33 pm.
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
Thanks Tim, have updated it!!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
This is bugging me now.............can't find launch time for LE's.
Were they only 93 or did they come out in late 92?????
Offline Profile Quote Post Goto Top

nullogik
Member Avatar
More than part of things
[ *  *  * ]
stempies
Wed Dec 10, 2008 7:16 pm
This is bugging me now.............can't find launch time for LE's.
Were they only 93 or did they come out in late 92?????


The earliest I've seen have been on 1993 K plates.

My LE is a bit of an oddity as it was a Mercedes Benz company car and wasn't registered till 1994.
Edited by nullogik, Thu Dec 11, 2008 12:37 pm.
Offline Profile Quote Post Goto Top

bez_merldo
Member Avatar
Part of things
[ *  * ]
stempies
Wed Dec 10, 2008 7:16 pm
This is bugging me now.............can't find launch time for LE's.
Were they only 93 or did they come out in late 92?????
hello, not sure if this is true but i think they were only 93 as they were the last off the production line?

Offline Profile Quote Post Goto Top

Bart707
Member Avatar
Highly Addicted
[ *  *  *  *  * ]
Great Find mate, very interesting.
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
Thanks guys, have changed LE date. Have also added the 190E 2.3 for Oct 86, I assume it was a non-UK model?
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
Not being a diesel fan i never bothered looking, but the 2.5D was a 5 cylinder!!
Have added a few production figs aswell!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

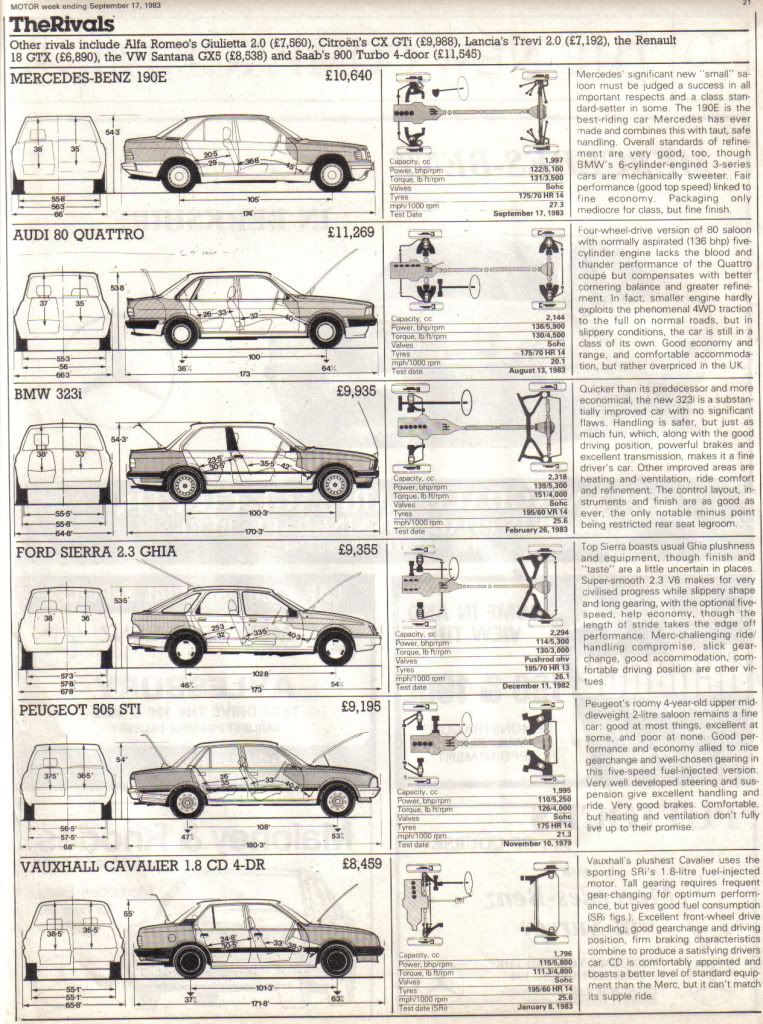

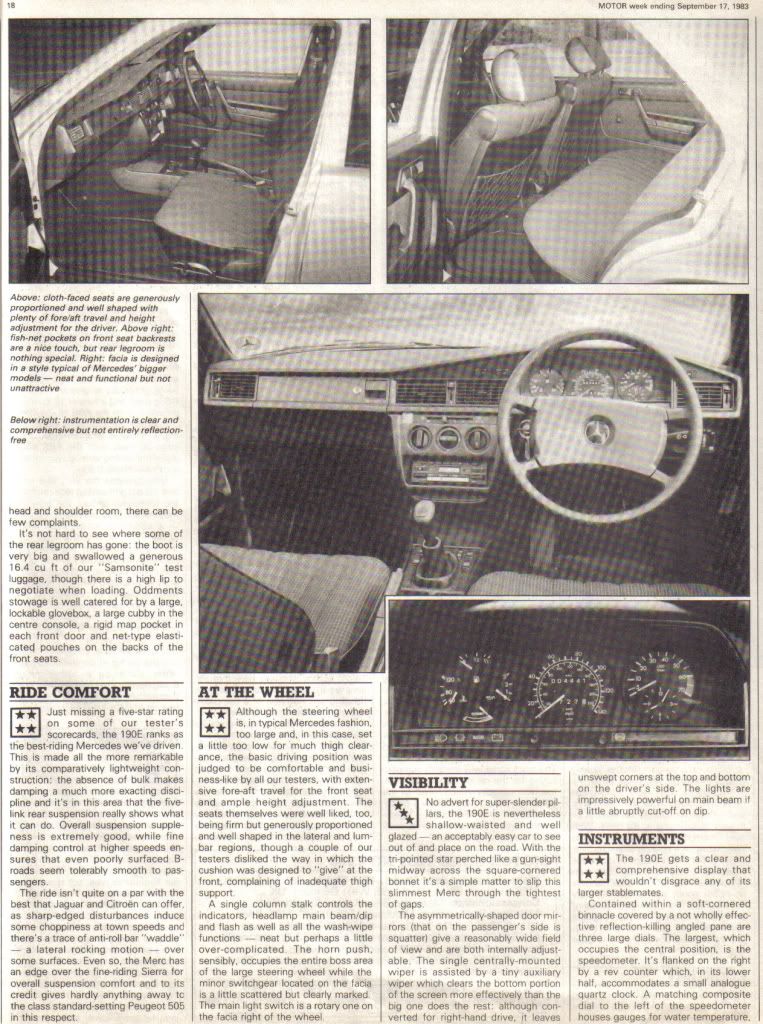

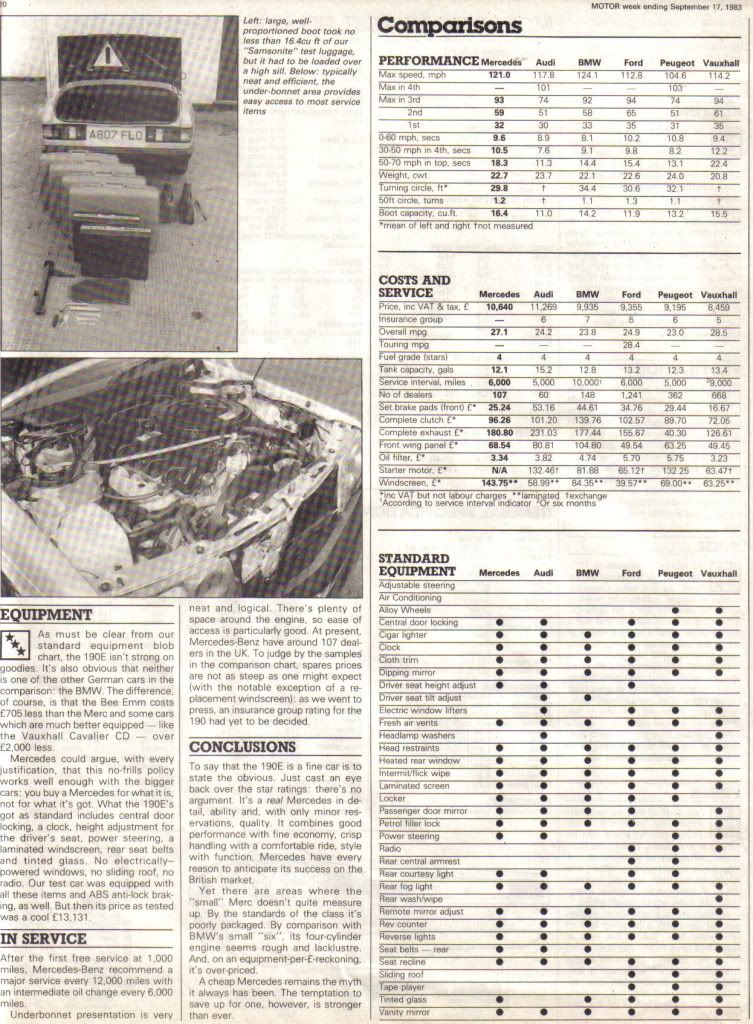

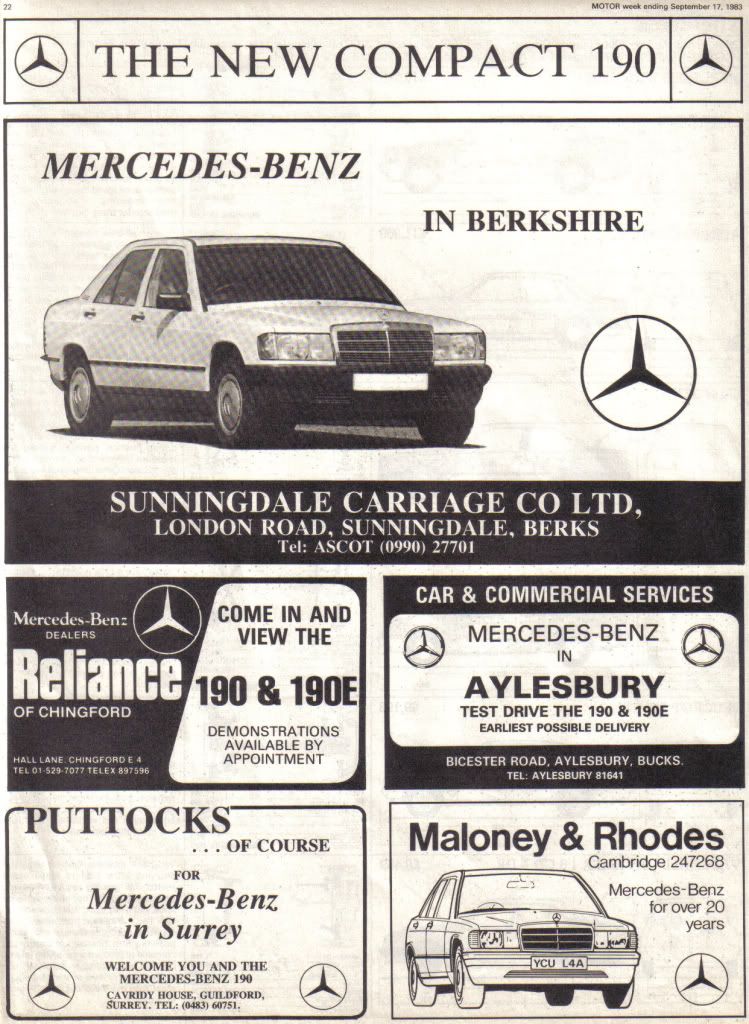

A few more scans that may be of use!!


Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Edited by Stempies, Sat Dec 20, 2008 11:40 pm.
Offline Profile Quote Post Goto Top

Russell
Needs Help
[ *  *  *  *  *  *  * ]
FANTASTIC thank you mate, thats a cracking scan!
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

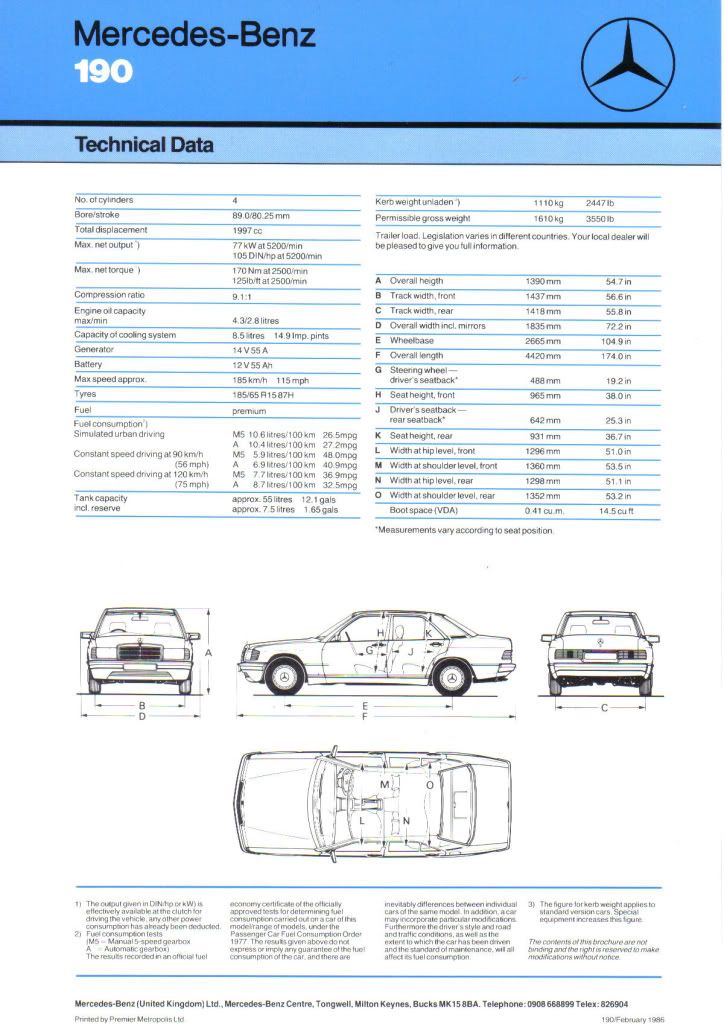

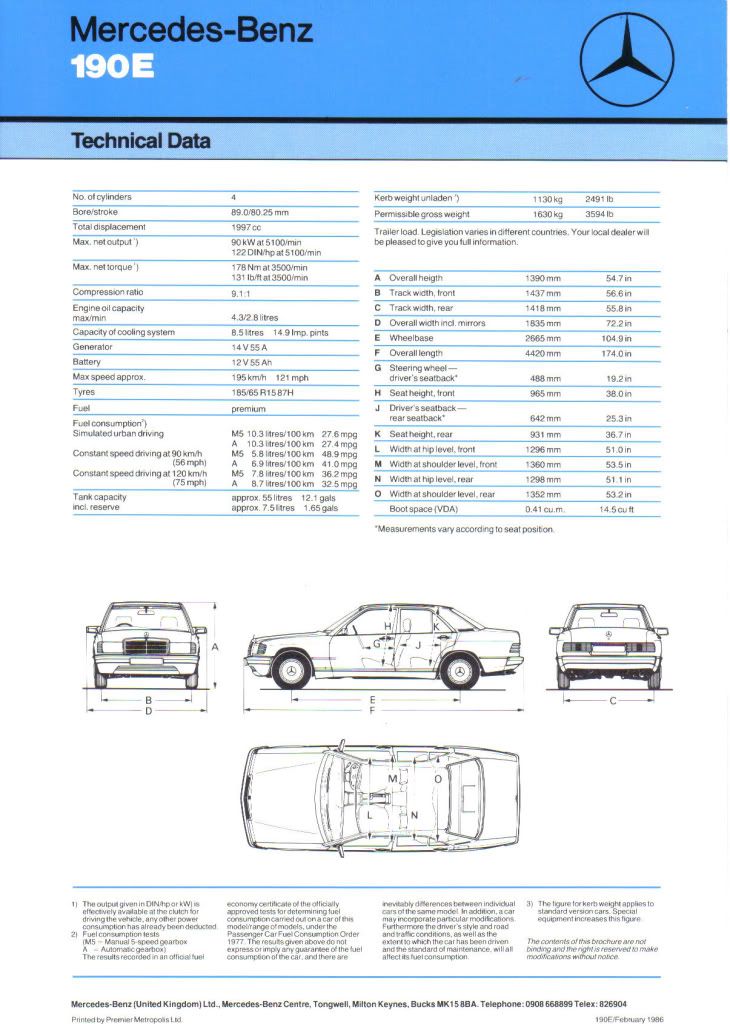

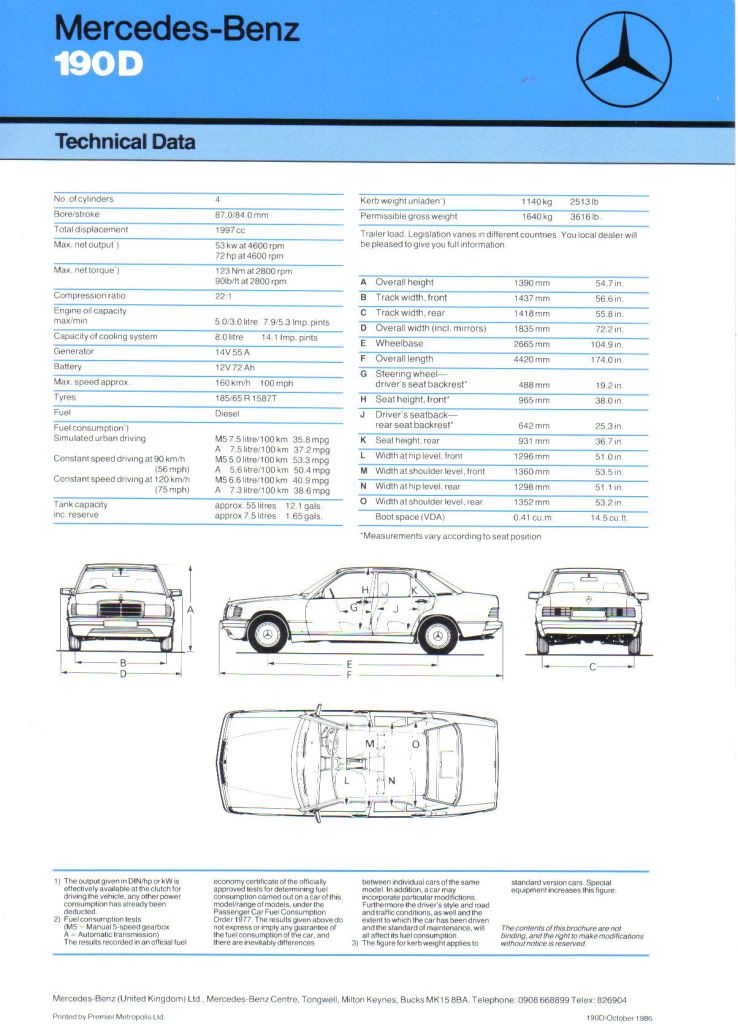

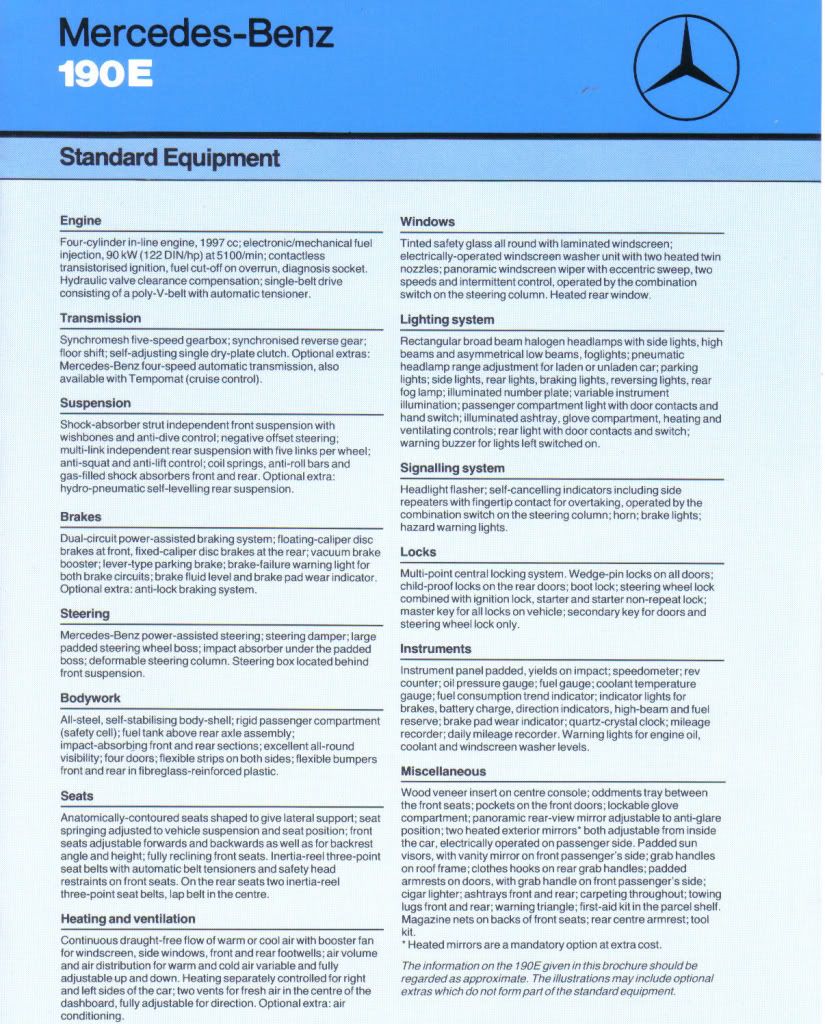

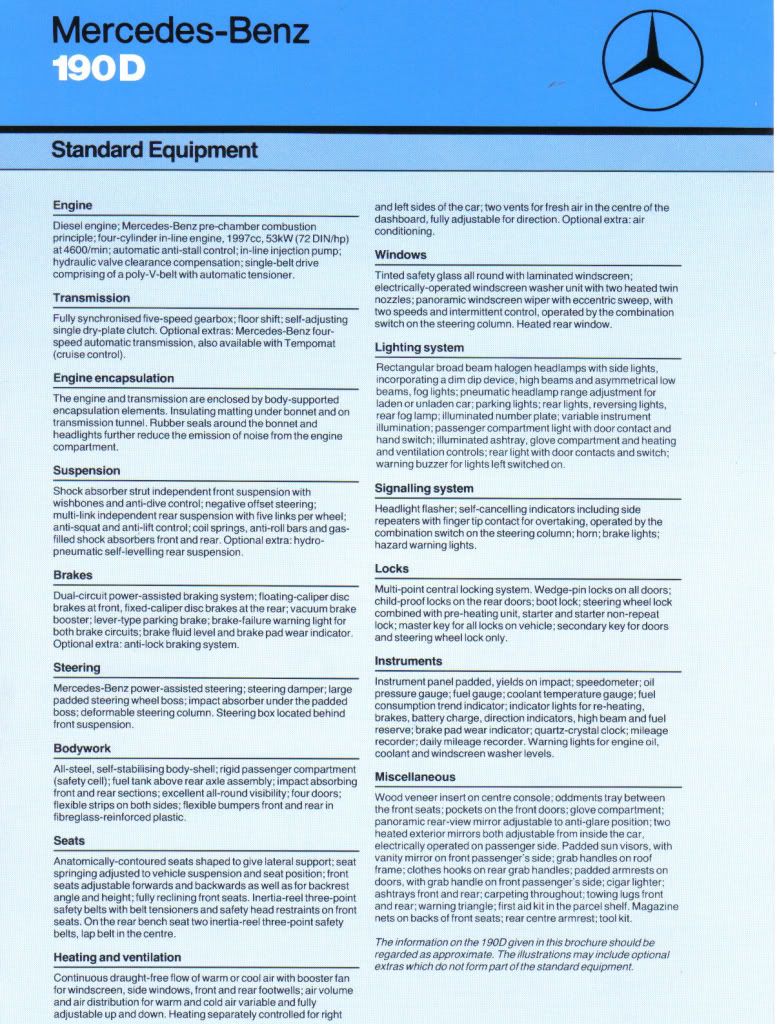

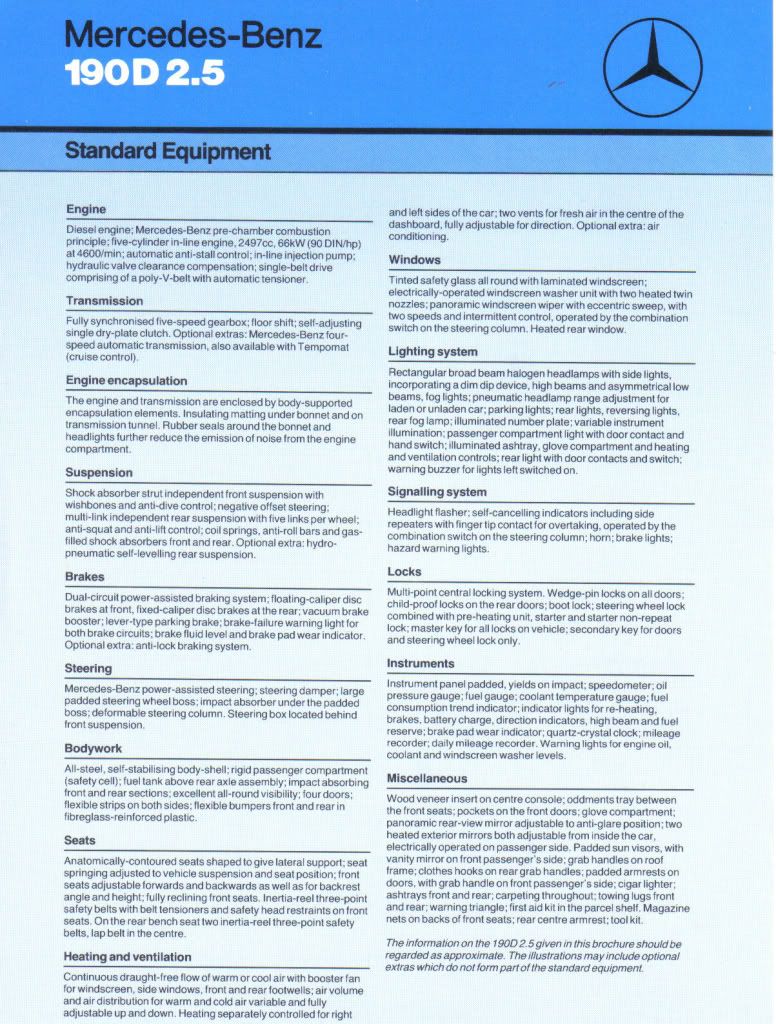

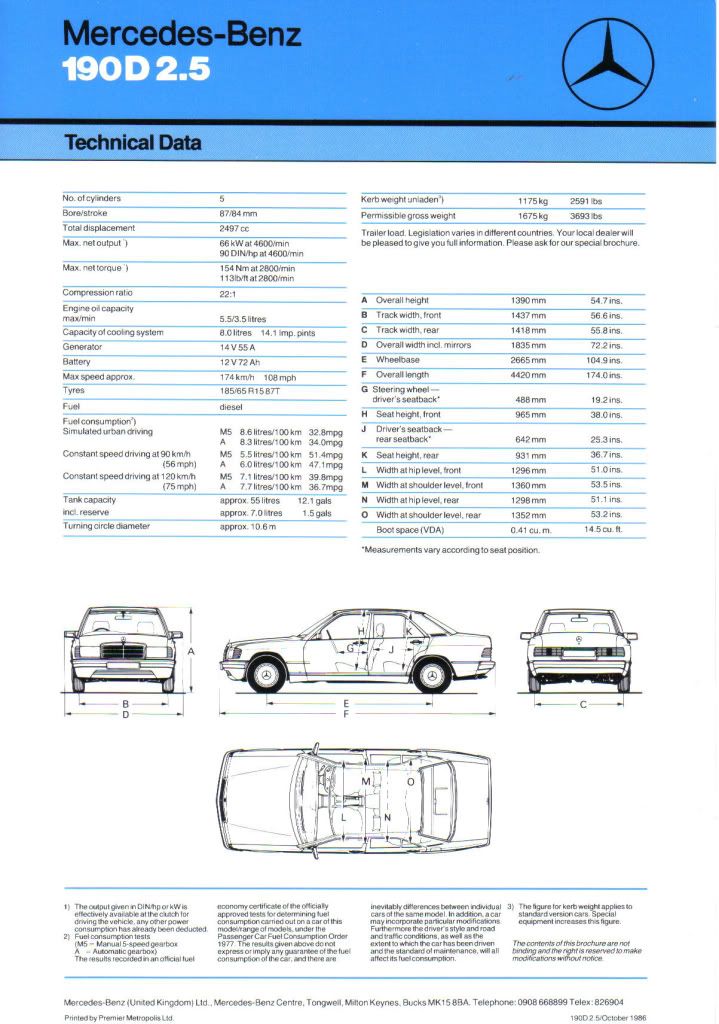

Just re-scanned data sheets, done both sides & larger so they're readable!!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

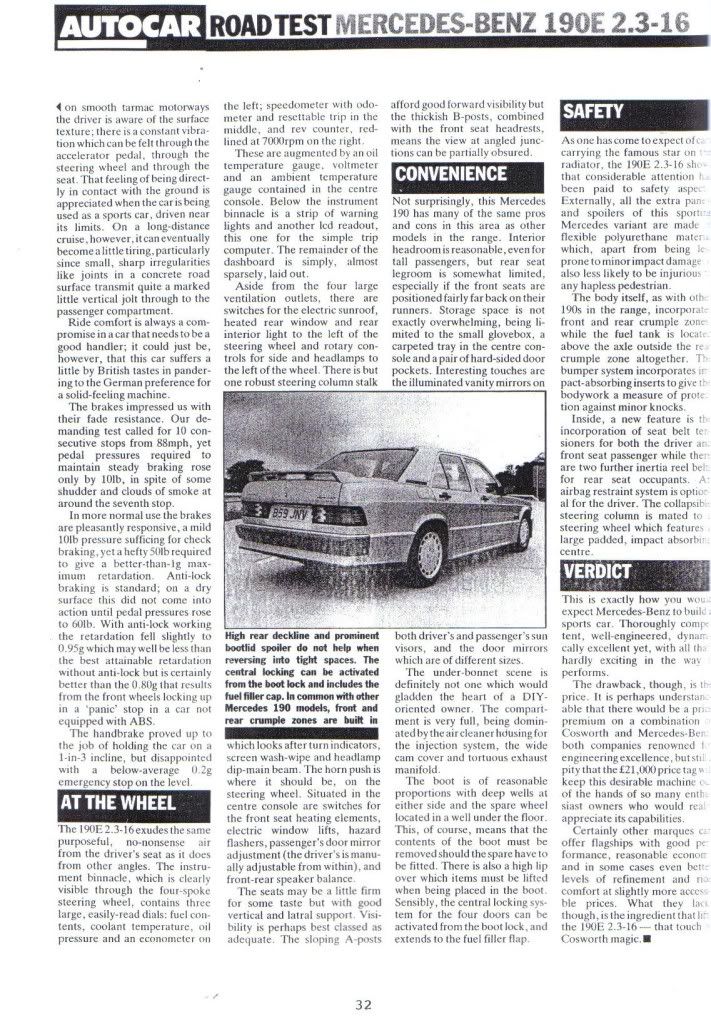

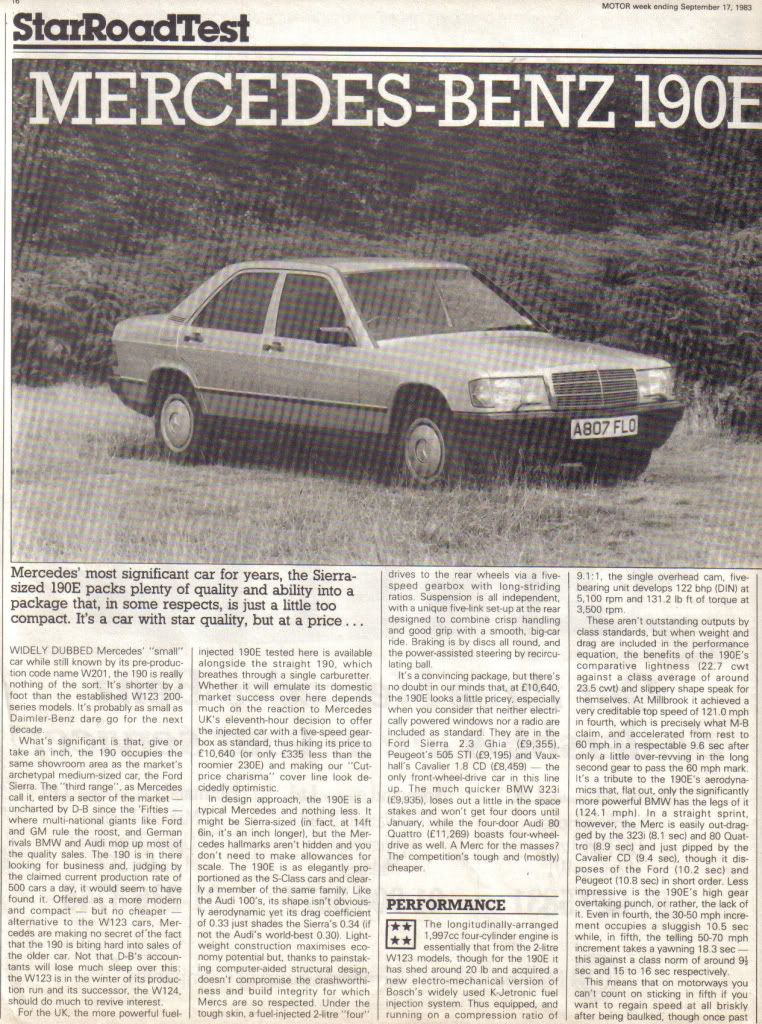

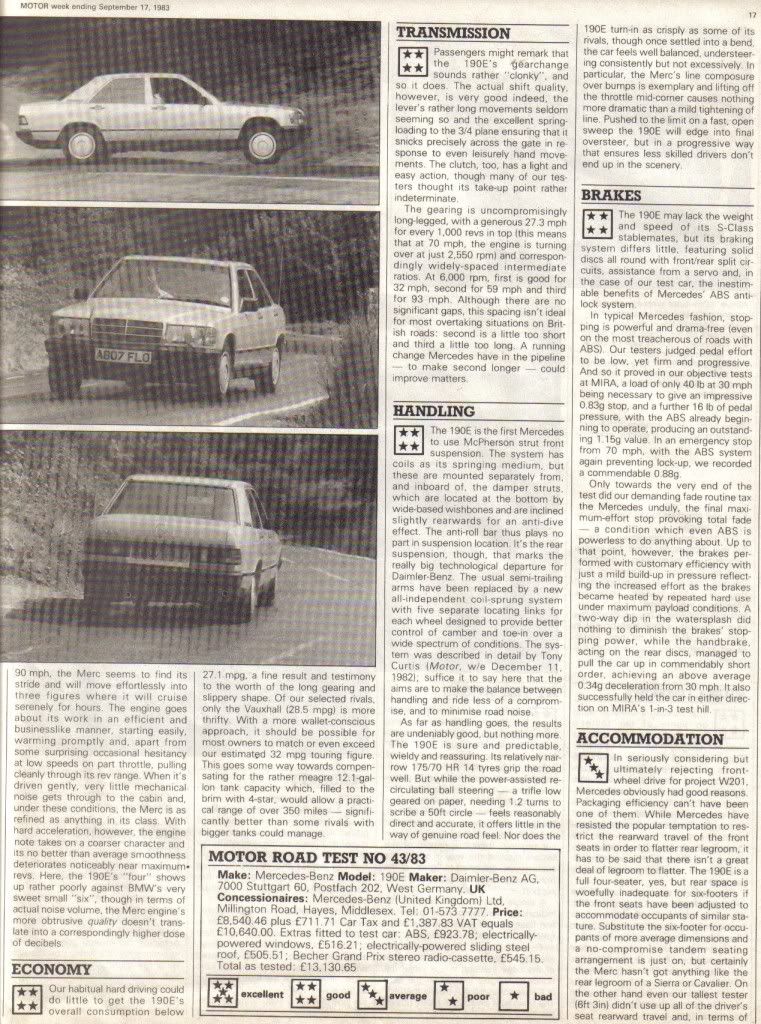

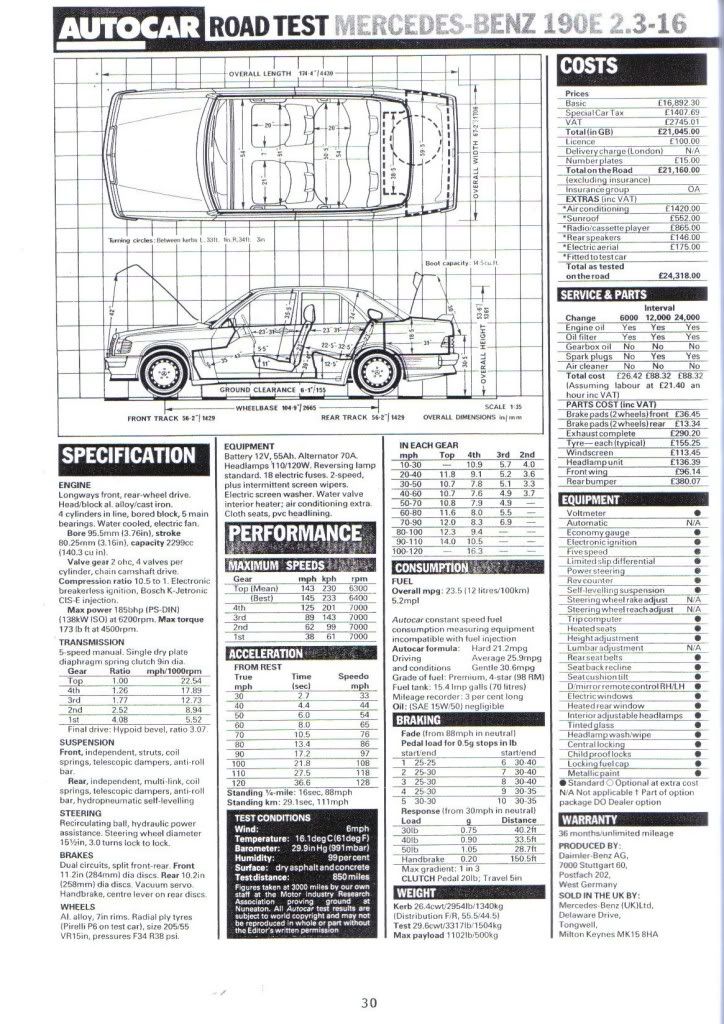

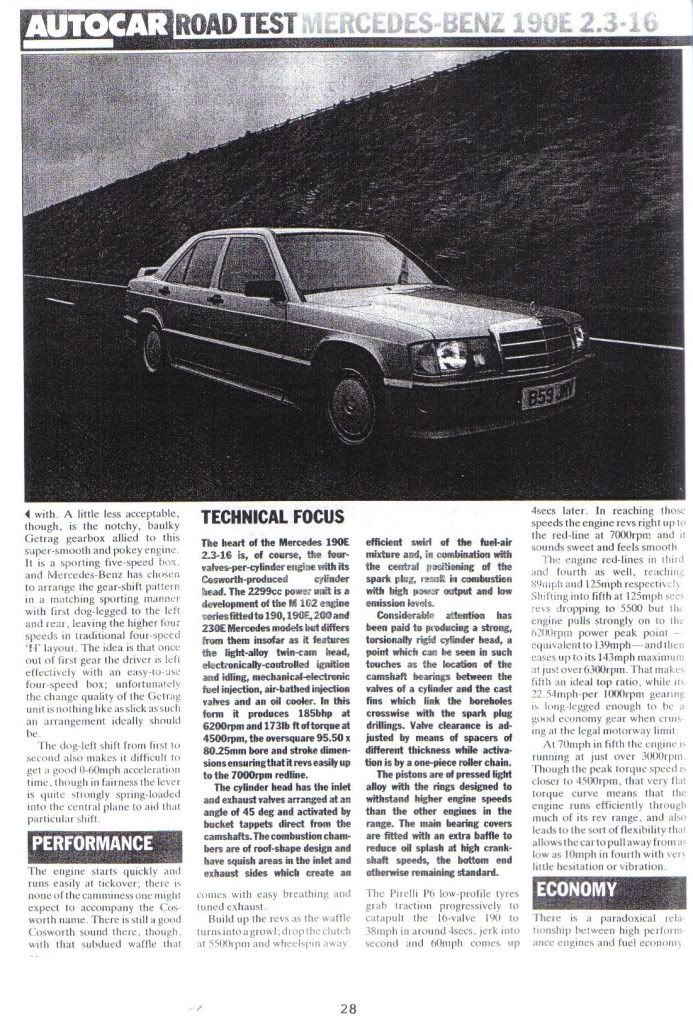

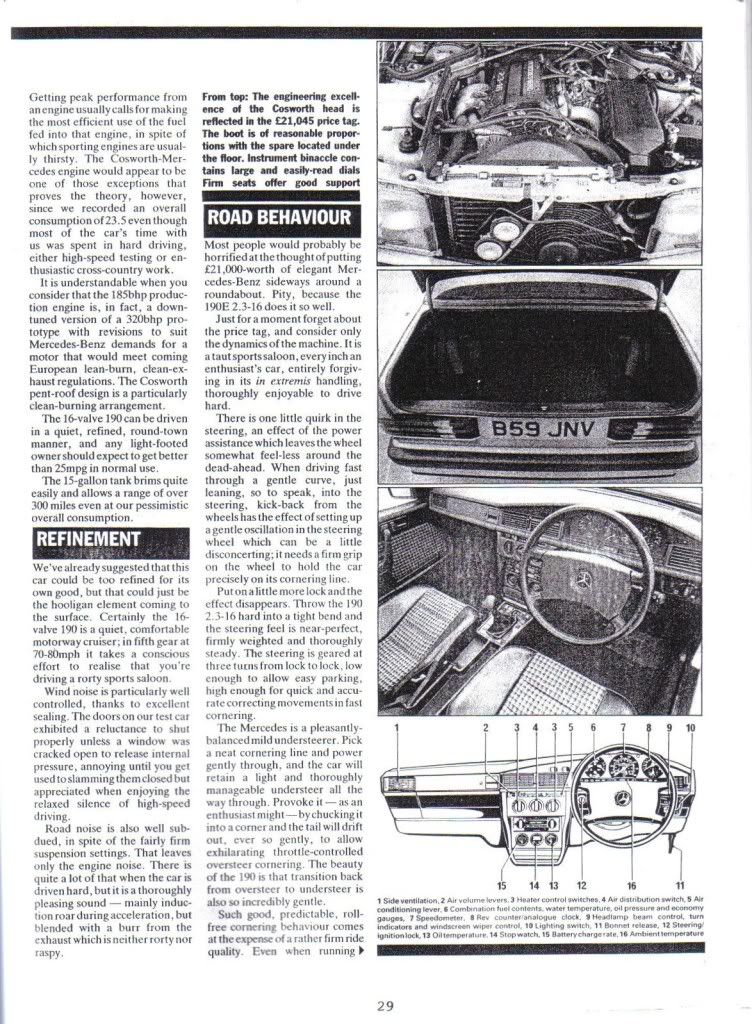

And the 2.3-16 road test!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image



Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

stempies
Sun Dec 21, 2008 1:19 am
And the 2.3-16 road test!

A 0-60 time of 8 secs......... :ermm: What did they do, get stuck changing into second?
Offline Profile Quote Post Goto Top

hitenb
Member Avatar
Addicted
[ *  *  *  * ]
Brilliant, thanks for doing all those scans for us...;)


Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

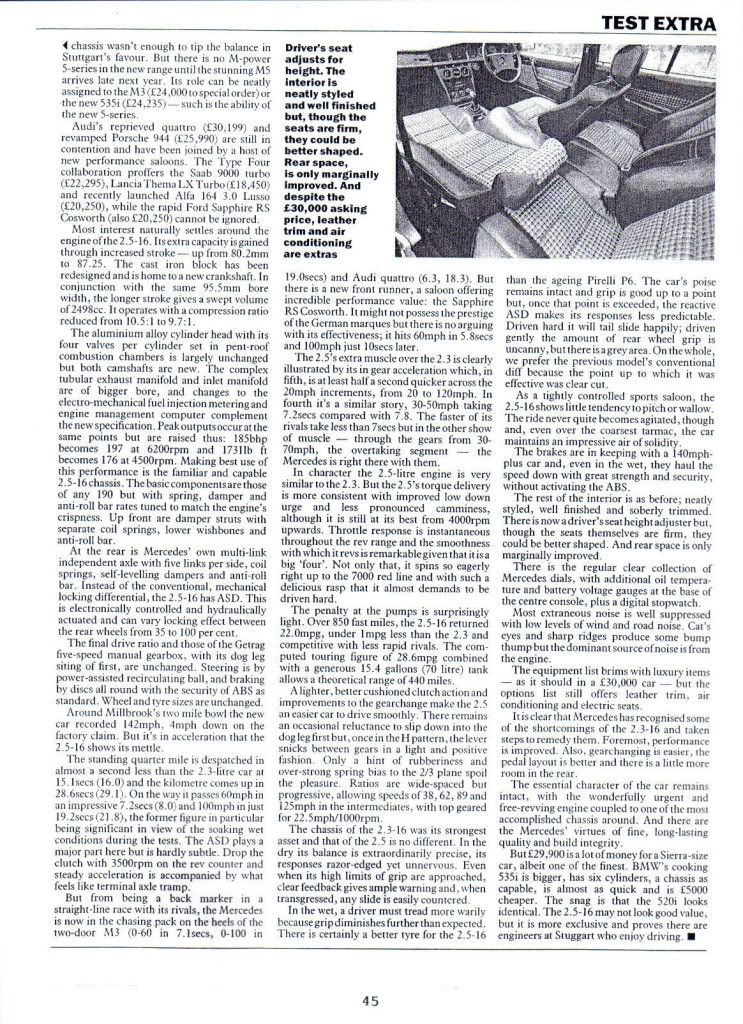

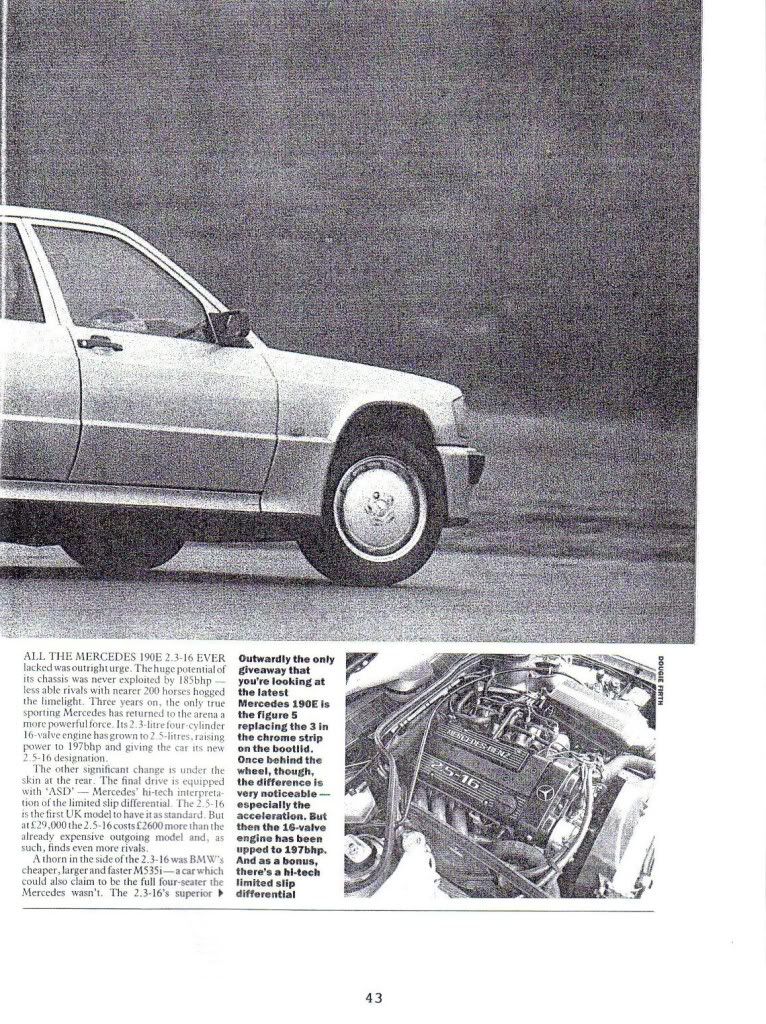

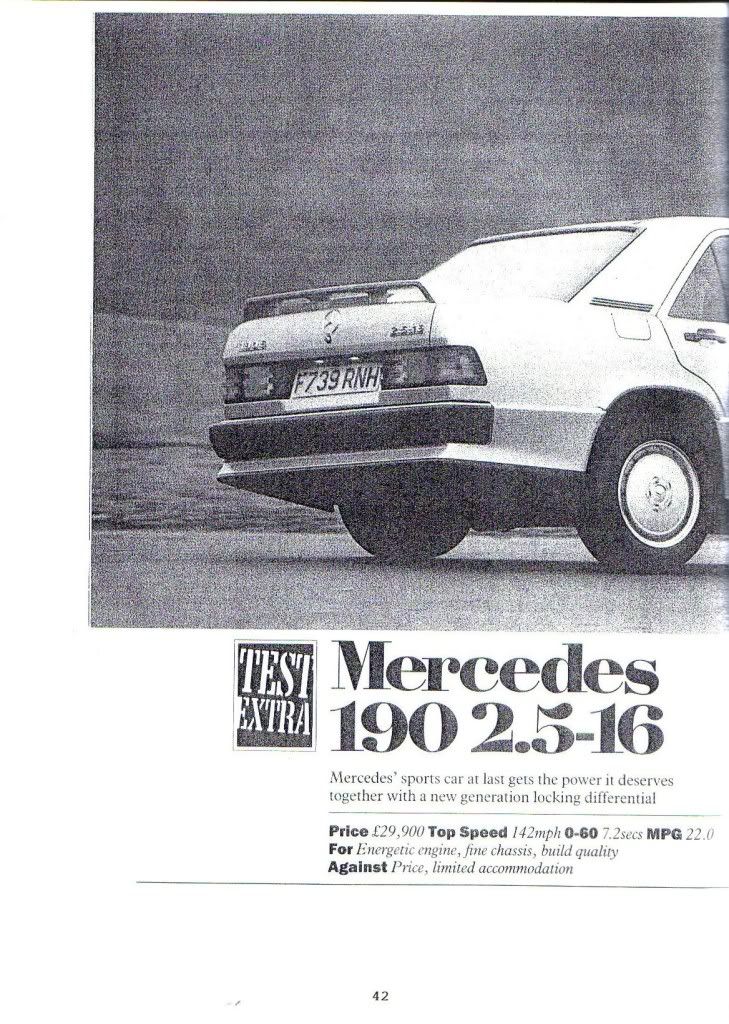

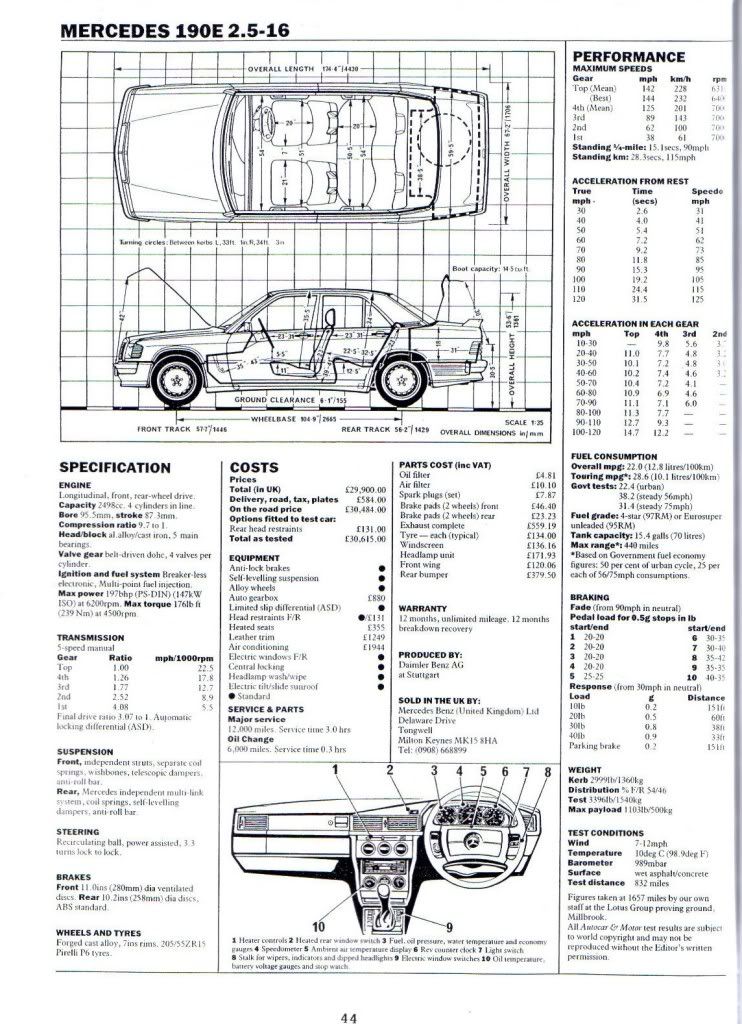

A brief 2.5-16 road test!

Posted Image

Posted Image

Posted Image

Posted Image

Offline Profile Quote Post Goto Top

hitenb
Member Avatar
Addicted
[ *  *  *  * ]
I think this needs to be pinned!
Offline Profile Quote Post Goto Top

Sev
I am a big Twat
[ *  *  * ]
Matt
Sun Dec 21, 2008 1:35 am
stempies
Sun Dec 21, 2008 1:19 am
And the 2.3-16 road test!

A 0-60 time of 8 secs......... :ermm: What did they do, get stuck changing into second?
and your 0-60 is what?
Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

Sev
Sun Dec 21, 2008 2:34 am
Matt
Sun Dec 21, 2008 1:35 am
stempies
Sun Dec 21, 2008 1:19 am
And the 2.3-16 road test!

A 0-60 time of 8 secs......... :ermm: What did they do, get stuck changing into second?
and your 0-60 is what?
We had it timed at a high 6, low 7
Offline Profile Quote Post Goto Top

RM Merc 190
Member Avatar
Addicted
[ *  *  *  * ]
Posted Image
Offline Profile Quote Post Goto Top

Matt
Member Avatar
Administrator - Hawk Eye

:lol: I will pin this in the 'General Tech' section.
Offline Profile Quote Post Goto Top

Mohammad
Member Avatar
weneakhborz
[ *  *  *  *  * ]
wow.how nice is that.
thanks alot for sharing these mate.


mohammad
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

Set of fairly rare Top Trumps!!!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Mohammad
Member Avatar
weneakhborz
[ *  *  *  *  * ]
amazing adds
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]

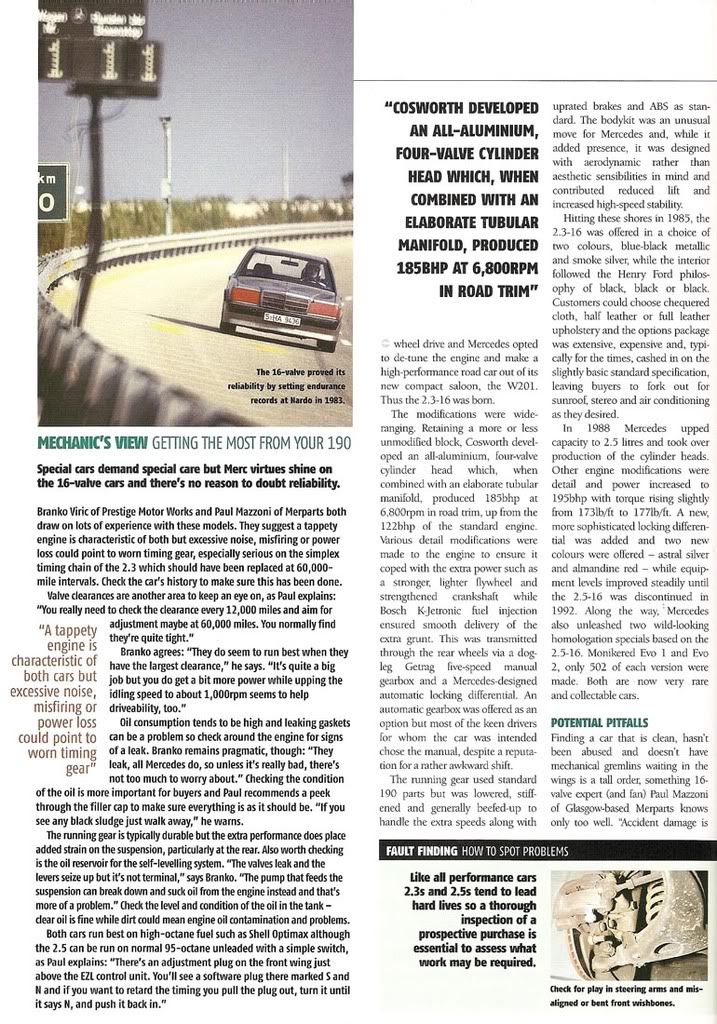

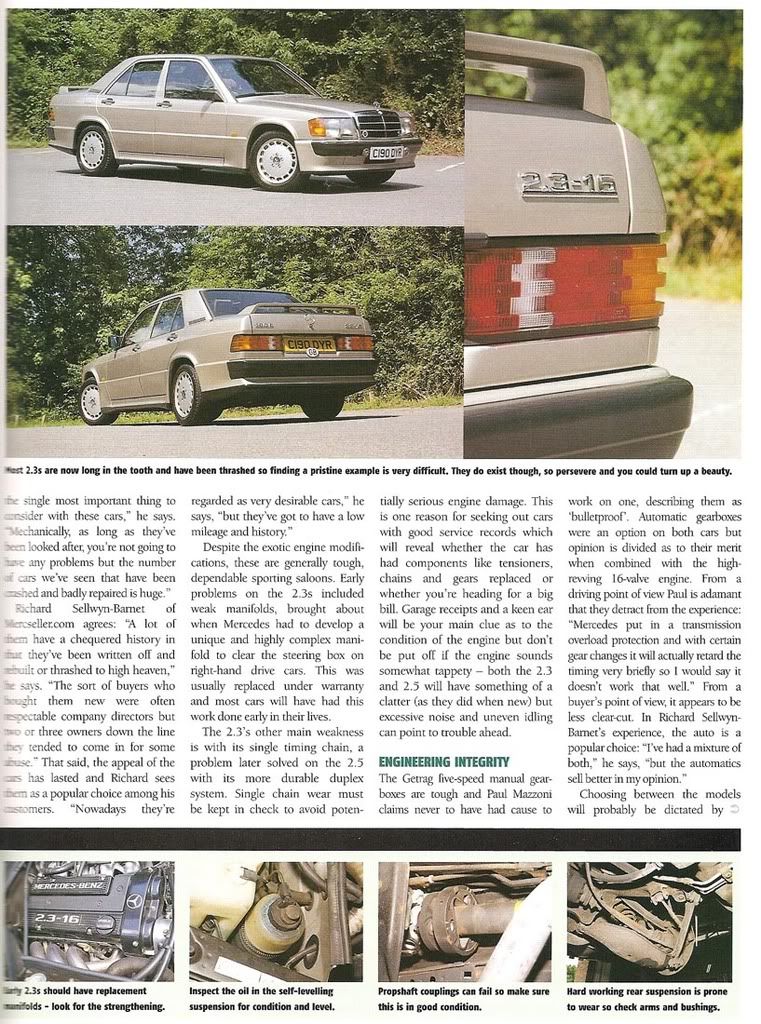

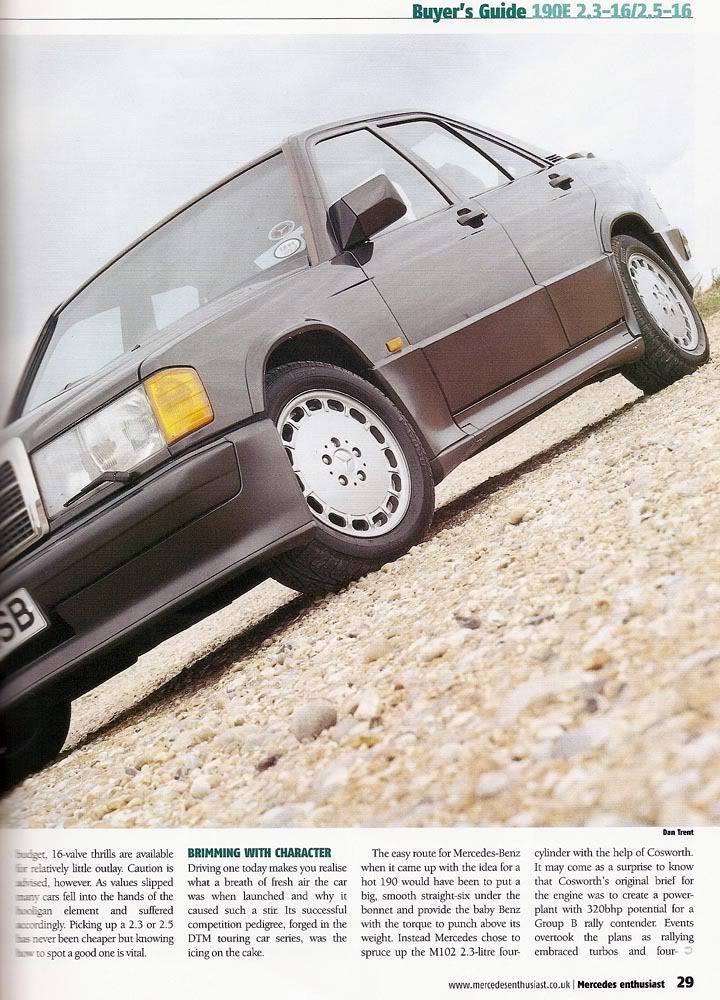

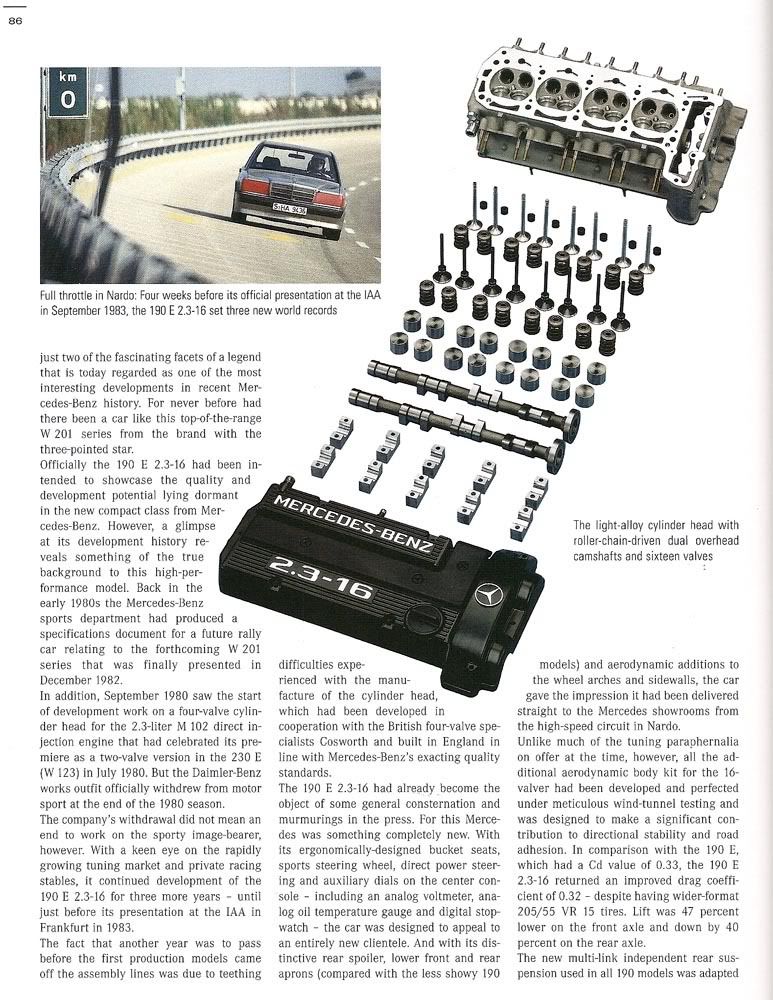

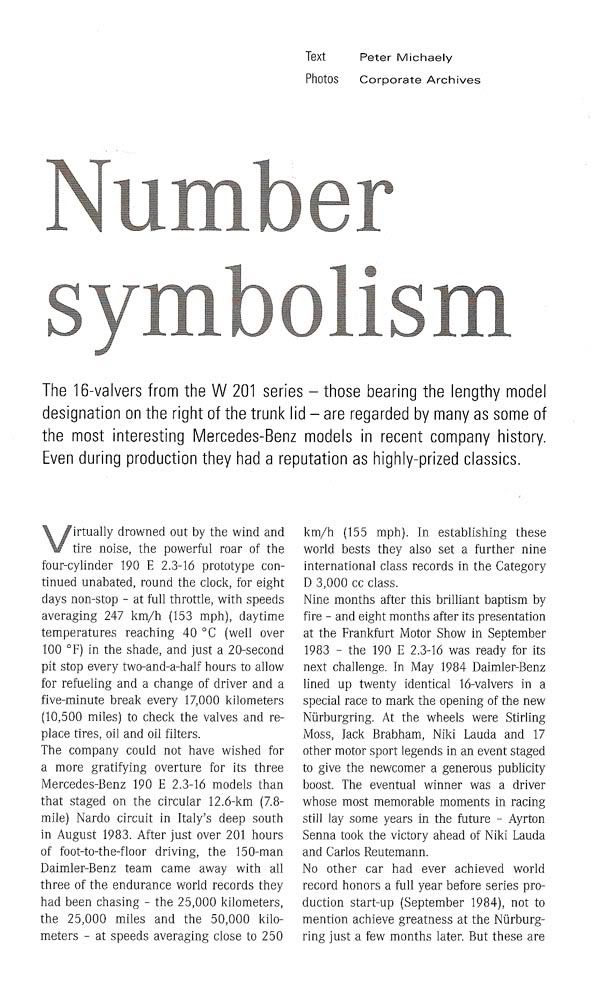

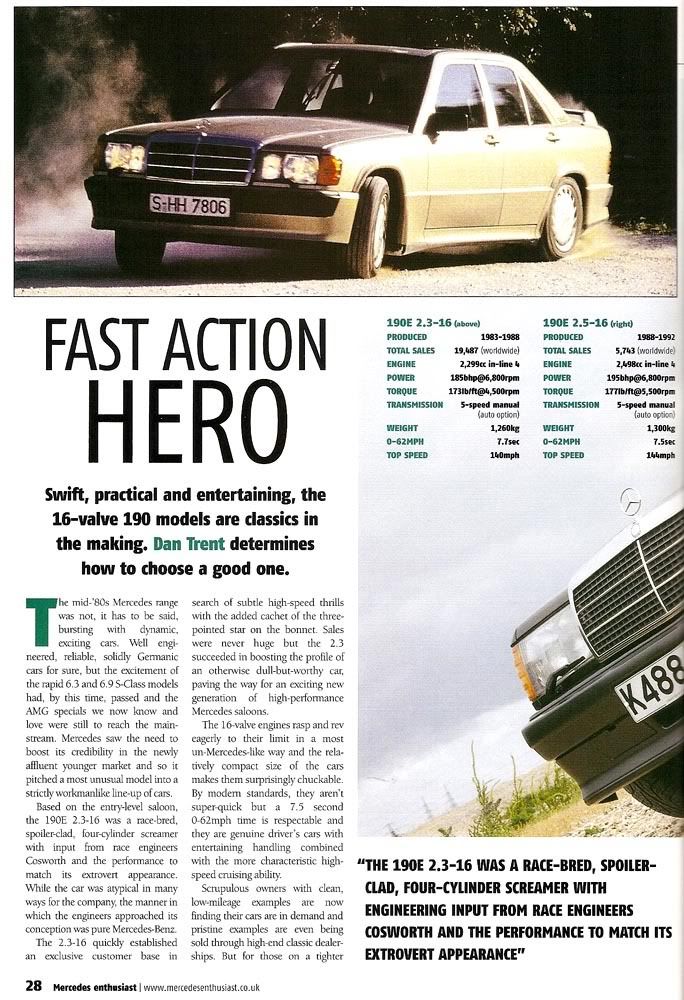

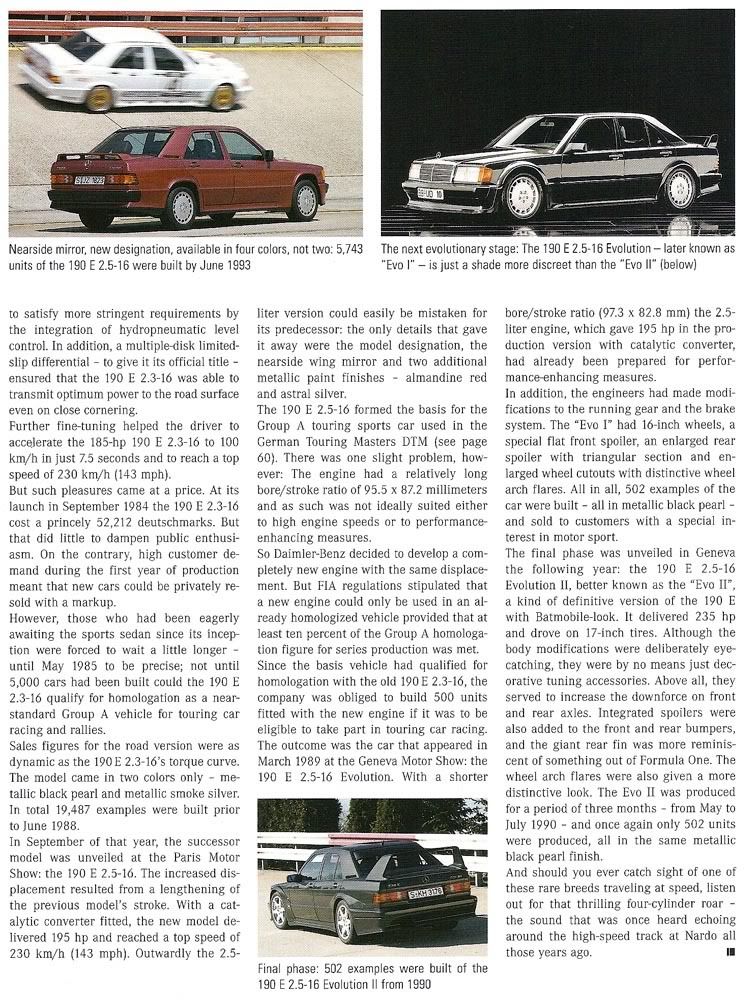

Some more 16V scans!!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Stempies
Member Avatar
Hot Lips
[ *  *  *  *  *  * ]
See link for scans by Lewis :-

More scans

Offline Profile Quote Post Goto Top

merc190uk
Member Avatar
The Godfather

great scans and i want those top trumps ! fantastic
