Headlight deflectors; Anyone know where they go?
Topic Started: Thu May 20, 2010 10:02 am (1,533 Views)
braddo
Newbie
[ * ]
I have a pair of the universal headlight deflectors lying around at home and I will need these for a little trip to France I'm taking in the Merc (a 1992 190e 1.8).

Does anyone know where the deflectors should be placed on a 190's headlights? Unfortunately I have lost the instructions the deflectors came with but even then, I'm not sure they had instructions for the rather unique Mercedes headlight size/style.

Thanks a lot.
Brad
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

Which shape deflectors are they, there are a few. Are they the type that look like a cone with a circle on the end ? I think they are the most common.

Posted Image

I can get a photo of some fitted later today if you like.
Offline Profile Quote Post Goto Top

braddo
Newbie
[ * ]
Sorry, yes, they're just like the ones above. A photo of some fitted would be great!
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

ok, here ya go. Last time I looked the sticky from my last trip was visible over the whole area, but some of it has come off so OI photoshopped it.

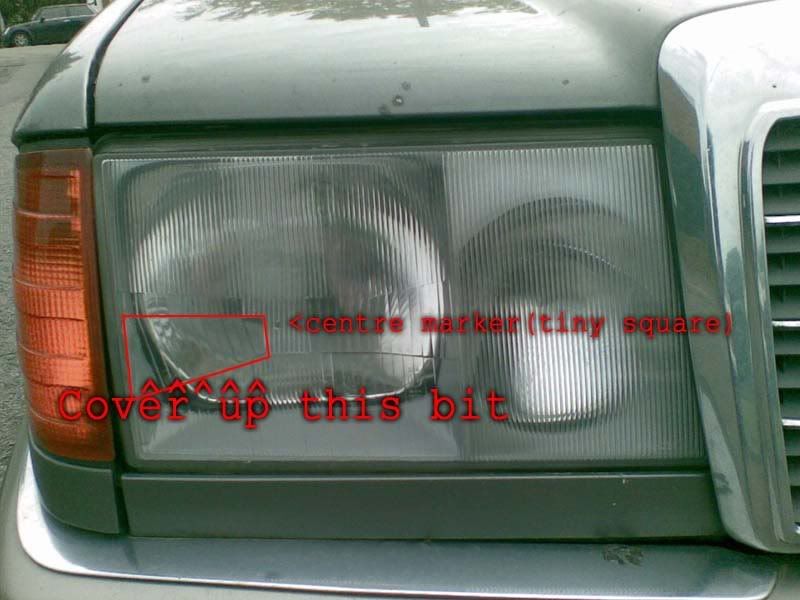

If you look roughly in the middle of the light you will see a tiny square, almost looks like a chip. The is where the top right of the converter goes. Coming down and to the left from that tiny square you see a funny triangle shape in the lense.. Thats the bit you cover with the converter.

Posted Image

The other headlight is the same, ie, they are no symmetrical, it goes on to the left of the tiny square as well.
Offline Profile Quote Post Goto Top

kentronix
Member Avatar
I'm only really here for the Kitchens

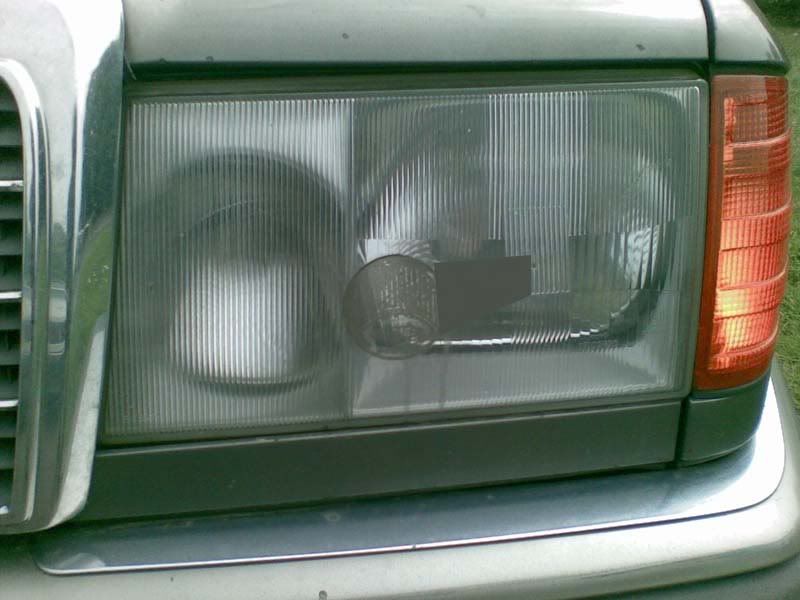

and one more for luck:-
Posted Image


This is how I have always fitted them and not had a problem, it was based on the instructions. Normal disclaimer, if you run over a frenchman it aint my fault :)
Offline Profile Quote Post Goto Top

braddo
Newbie
[ * ]
Perfect, thanks a lot [thumbs up smiley :D ].
Offline Profile Quote Post Goto Top
