Replacing throttlebody
Topic Started: Sun May 23, 2010 1:47 pm (824 Views)
Sax
Member Avatar
Part of things
[ *  * ]
Hi learned members,
i actually posted this in the wrong section first,whoops.Anyway,can someone advise me whether replacing the throttle body is a complicated job,or can a novice like me do it?Will i need special tools? Is there any possibility of doing serious damage to the engine?A garage was supposed to do it for me yesterday but i was let down.Now i`m thinking about having a go myself.Rick1 advised me to do it myself,but i`m a bit unsure.Hs anyone done one these recently?

Sax.
Offline Profile Quote Post Goto Top

papa
Member Avatar
Lap Dancer
[ *  *  * ]
If humans have been able to put a rocket on the moon then you should the able to do it.
Offline Profile Quote Post Goto Top

Sax
Member Avatar
Part of things
[ *  * ]
Lol thanks for the encouragment Papa,if i had been the one to put a rocket on the moon,i wouldn`t be asking on here.
Offline Profile Quote Post Goto Top

cosser
Part of things
[ *  * ]
Hi Sax,

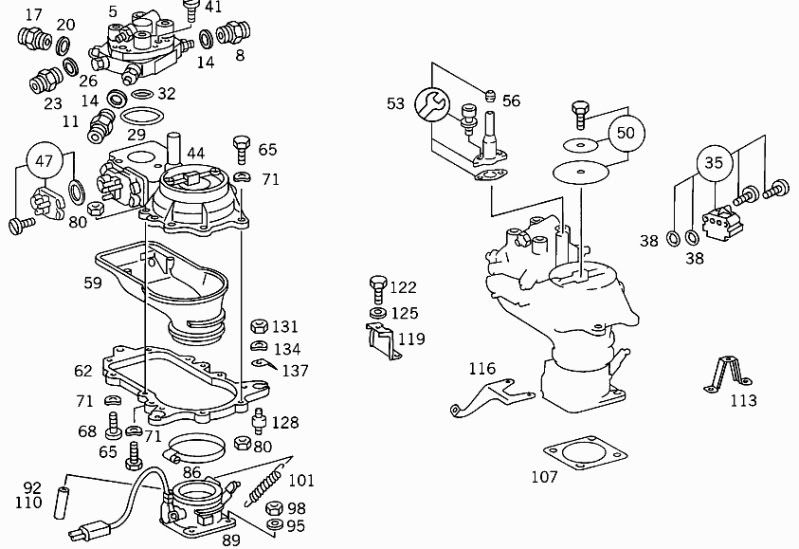

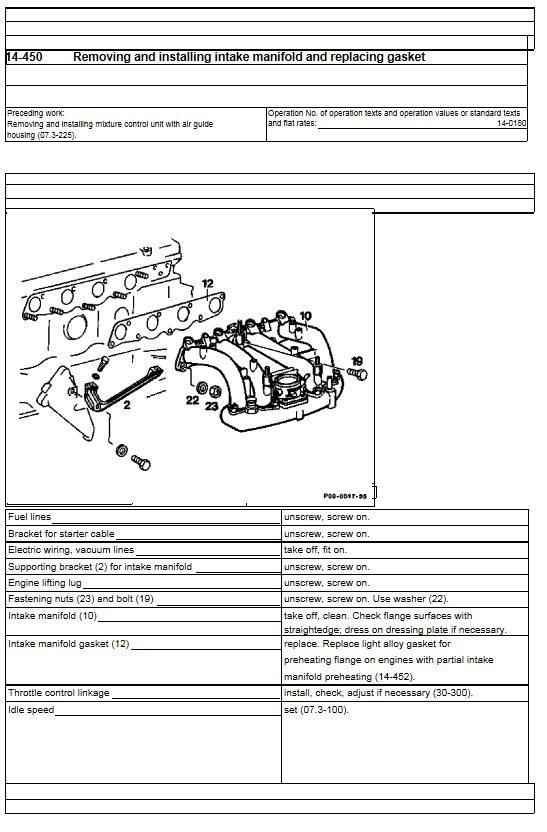

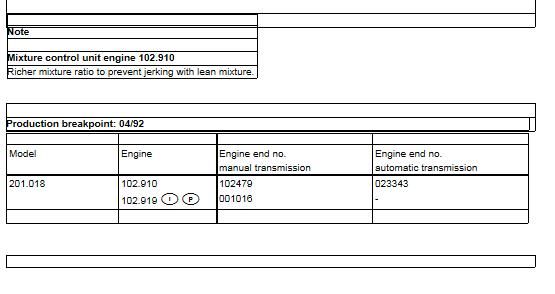

Do you want to take off the complete inlet manifold/injection or just the Mix Control Unit..??

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Does this help..??

Cosser..!!
Edited by cosser, Sun May 23, 2010 3:04 pm.
Offline Profile Quote Post Goto Top

Sax
Member Avatar
Part of things
[ *  * ]
Hi Cosser,
it`s just the mix control unit that i need to replace.Thanks very much your post is a big help,i think i should be able to manage it now.Is there a gasket between the unit and where it sits?
My car is a 1.8 the replacement throttlebody is from a 2 litre,will the settings be the same or close enough? i will get the whole thing set up properly anyway.

Cheers,
Sax.
Offline Profile Quote Post Goto Top

cosser
Part of things
[ *  * ]
Hi sax,
I don't think there's a gasket..?? as for the settings being the same I don't know..I think that's going to be a trial and error job..lol..!! I've had my mix unit off and it's not a huge job..just make sure everything goes together airtight..no leaks..!!

Cosser..!!
Offline Profile Quote Post Goto Top

bolide
Bolide
[ *  * ]
Call the dealer with your chassis number and ask if there's a gasket. It'll be pennies if there is. While you're at it ask them if there are any common bits (rubber pipes, etc) that should be replaced / might break at the same time

Nick Froome
www.w124.co.uk
Edited by bolide, Mon May 24, 2010 5:44 pm.
Offline Profile Quote Post Goto Top

Sax
Member Avatar
Part of things
[ *  * ]
Thanks Guys !!
Offline Profile Quote Post Goto Top

papa
Member Avatar
Lap Dancer
[ *  *  * ]

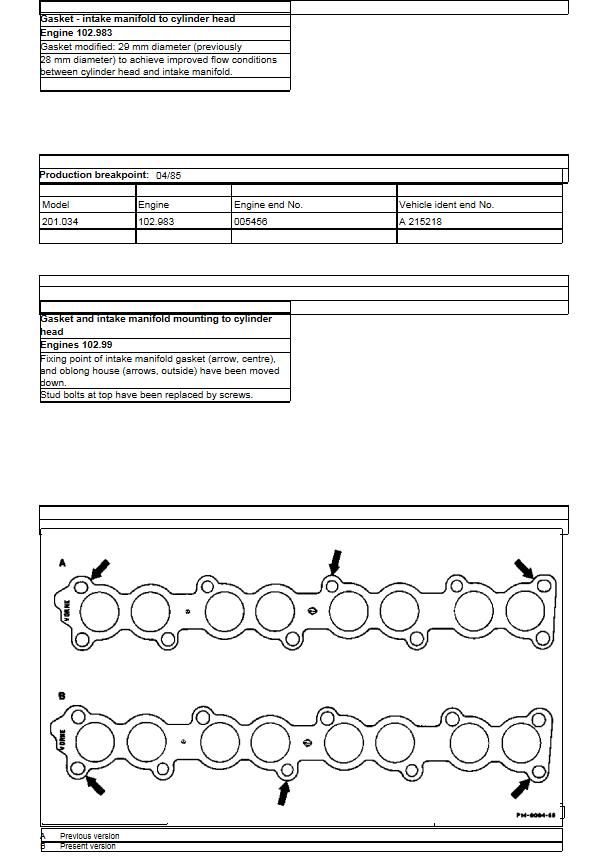

This should answer your question regarding gasket.

Posted Image
Offline Profile Quote Post Goto Top
