| Removing a valver engine; Picture wanted please | |
|---|---|
| Tweet Topic Started: Sat Jun 5, 2010 10:10 am (575 Views) | |
| Desmoboy | Sat Jun 5, 2010 10:10 am Post #1 |
|
Part of things
![]() ![]() ![]() ![]()
|
Has anyone got a picture of where the front engine lifting "eye " bracket fits on the head. I took loads of photos before i started to take everything apart but apparently not this. I bit the bullet and bought an engine hoist this week and now want to get on with the job. Thanks keith |
![]() |
|
| Will | Sat Jun 5, 2010 10:23 am Post #2 |
|
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

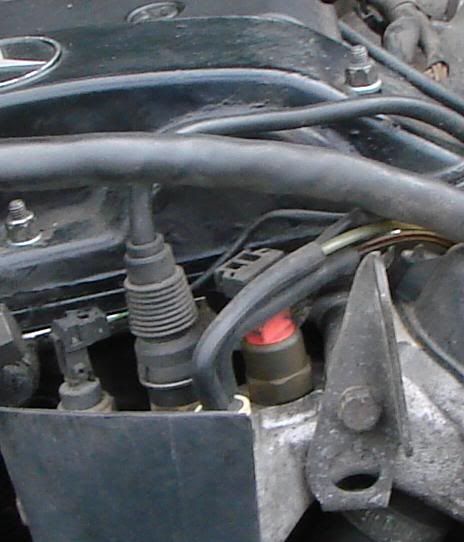

![]() Hope that helps - right by the thermostat and coolant block. Will |
![]() |
|
| Desmoboy | Sat Jun 5, 2010 11:12 am Post #3 |
|
Part of things
![]() ![]() ![]() ![]()
|
Thanks will I will have to put that piece back on then . Doesn't look like that ally housing would be strong enough to supprt the weight of the engine. Regards keith |
![]() |
|
| Will | Sat Jun 5, 2010 11:26 am Post #4 |
|
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|
Hi Keith, The housing doesn't support the weight of the engine, that bracket is bolted directly to the head - the bolts are longer and just pass through the housing
|
![]() |
|
| Will | Sat Jun 5, 2010 11:33 am Post #5 |
|
Highly Addicted
![]() ![]() ![]() ![]() ![]() ![]() ![]()
|

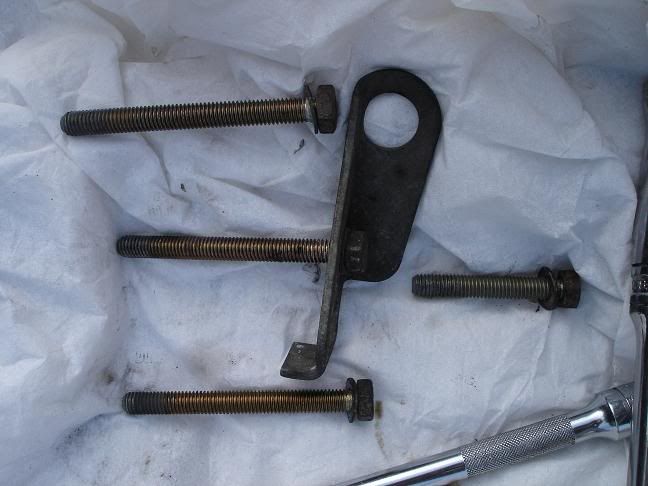

Might help a bit more:![]()
|
![]() |
|
