2.3-16 & 2.5-16 Air filter housing; Anybody know if there are the exact same?
Topic Started: Tue Jun 15, 2010 12:27 am (755 Views)
Johnboy Mac
Member Avatar
More than part of things
[ *  *  * ]
As per the title Guys.

Anybody know if the housing is the same. Different part numbers on the Russian site but that may not be up to date, also the 2.3-16 housing was modified during production, so maybe the same as 2.5??

Ta inadvance.

J.
Offline Profile Quote Post Goto Top

stwat
Member Avatar


Doesn't the 2.3 have a slightly bigger diameter AFM? Sounds daft i know but i'm sure i read it on here some time back.
Offline Profile Quote Post Goto Top

Johnboy Mac
Member Avatar
More than part of things
[ *  *  * ]
stwat
Tue Jun 15, 2010 1:00 am
Doesn't the 2.3 have a slightly bigger diameter AFM? Sounds daft i know but i'm sure i read it on here some time back.


Don't really know Stu. Typical of me to come up with such a query :D
Offline Profile Quote Post Goto Top

papa
Member Avatar
Lap Dancer
[ *  *  * ]

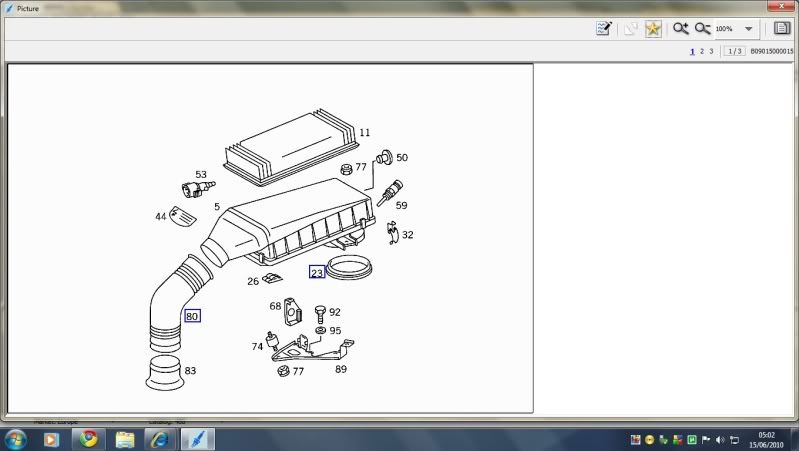

They never shared the part number so the filter housings are different. The seal ring(23) that goes between the AFM and filter housing has got the same part number on the 2.3 and 2.5 so its safe to say that the AFM's are the same diameter.

Posted Image
Offline Profile Quote Post Goto Top

Chris Martens
Member Avatar
Part of things
[ *  * ]
They are different.

The cover of the housing is higher for the 2.5-16, the hose (part no. 80) is wider at the housing side (furthermore the the hose for the 2.5-16 is NLA) - while the inlet trumpet (part no. 83) is the same for both.

regards,
Christian
Offline Profile Quote Post Goto Top

Johnboy Mac
Member Avatar
More than part of things
[ *  *  * ]
Thanks for the feedback guys.
Offline Profile Quote Post Goto Top

Johan.C
Part of things
[ *  * ]
I dont think the lid from a 2.3-16 will fit a 2.5 and viceverca
Offline Profile Quote Post Goto Top

zhenya
Newbie
[ * ]
Slightly off topic - but where can I access that parts schematic? That would much easier than me trying to identify the parts by name...
Offline Profile Quote Post Goto Top

papa
Member Avatar
Lap Dancer
[ *  *  * ]
zhenya
Tue Jun 15, 2010 6:41 pm
Slightly off topic - but where can I access that parts schematic? That would much easier than me trying to identify the parts by name...
HERE
Offline Profile Quote Post Goto Top
