Just converted the Honda to LPG.
Topic Started: Sun Jul 24, 2011 10:29 pm (1,445 Views)
Richy190E
Member Avatar
bubble bubble
[ *  *  *  *  *  * ]
As some of you know I recently put Sarah's Clio onto gas.....halved the weekly fuel bill! So ordered another kit and did the Civic too.

Here are some pics. Please be aware that they were taken as work was in progress so there are grubby bits which have since been cleaned :)

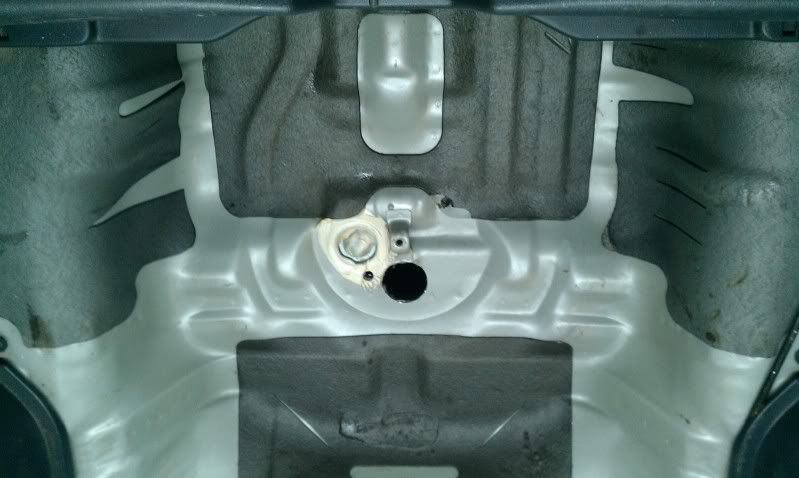

Prepped, cleaned and drilled the boot floor to mount the tank:
Posted Image

Applied anti-corrosive primer and stonechip to prevent from abrasions and in turn corrosion as once the tank is fitted mopping up water becomes difficult.
Posted Image

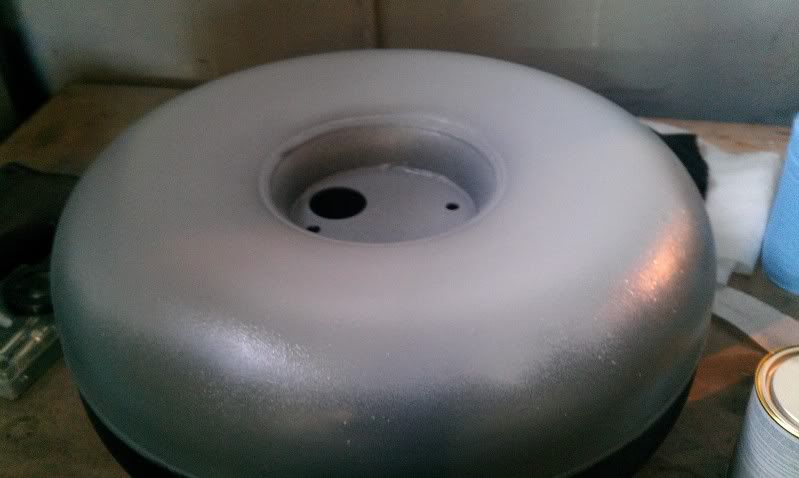

Same with the Tank:
Posted Image

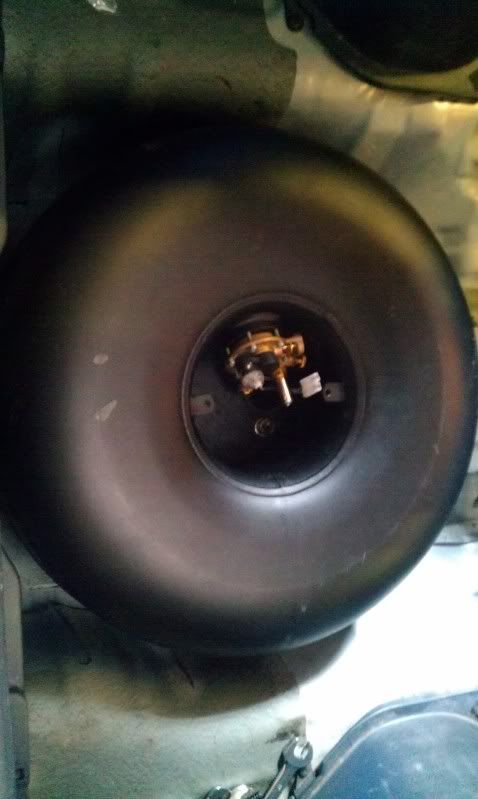

Painted the tank and fitted the multivalve, then mounted it to the car:
Posted Image

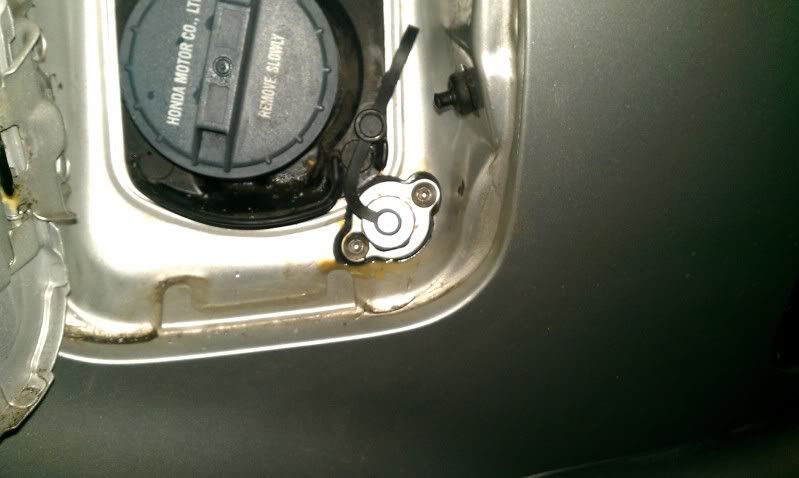

Mounted the filler inside the filler flap :)
Posted Image

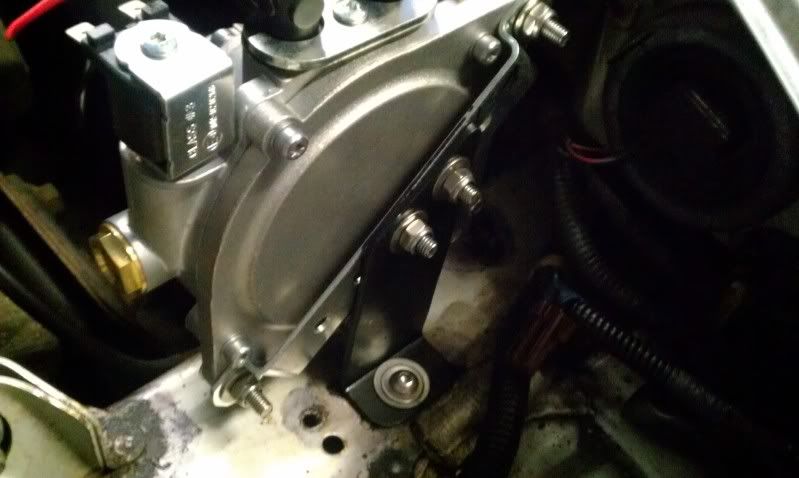

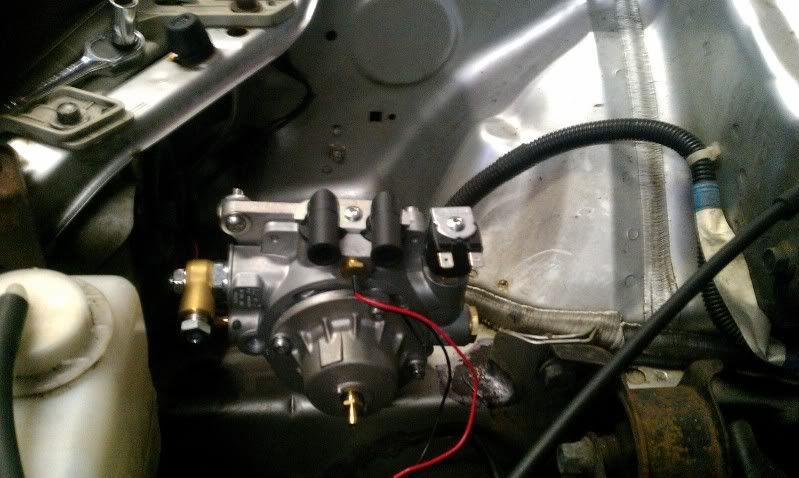

Made a bracket to hold the reducer and mounted it to the car:
Posted Image
Posted Image

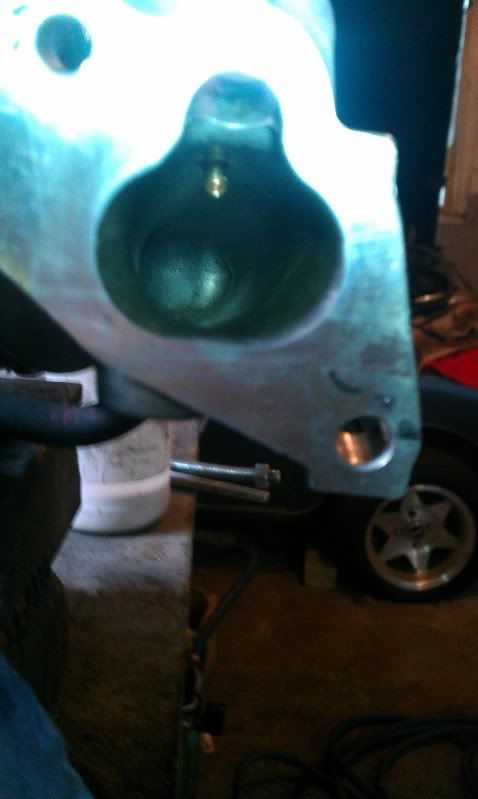

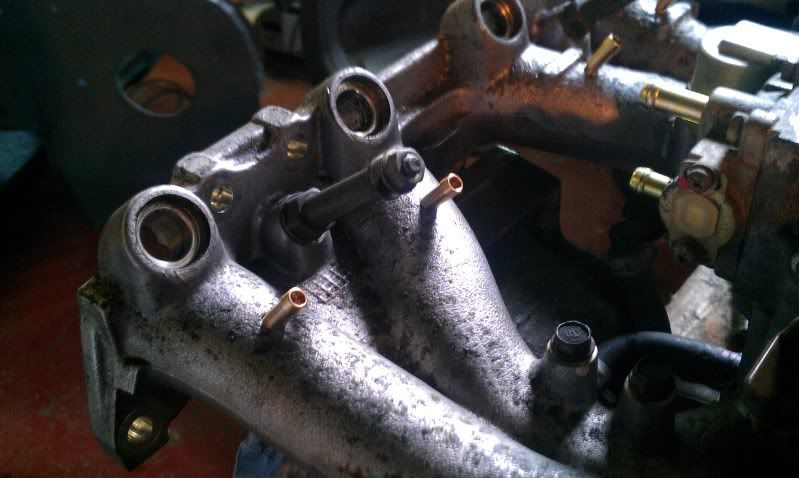

Drilled the inlet manifold for the gas nozzles:
Posted Image
Posted Image

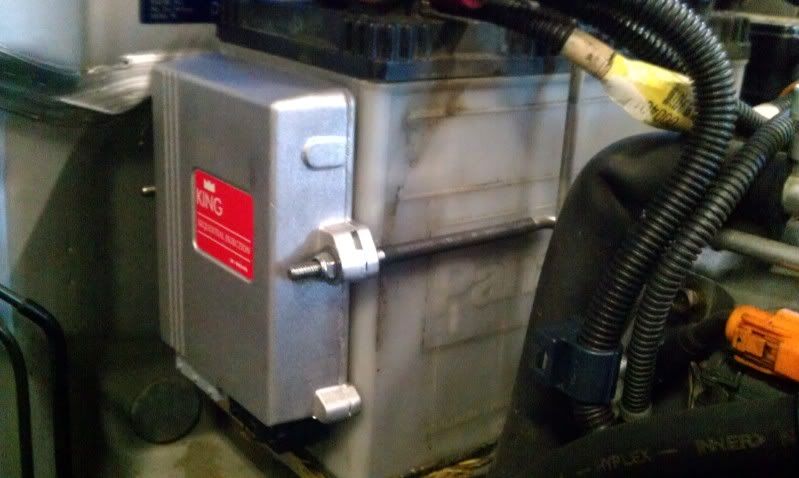

Made some 'J' Bolts and mounted the LPG ECU:
Posted Image

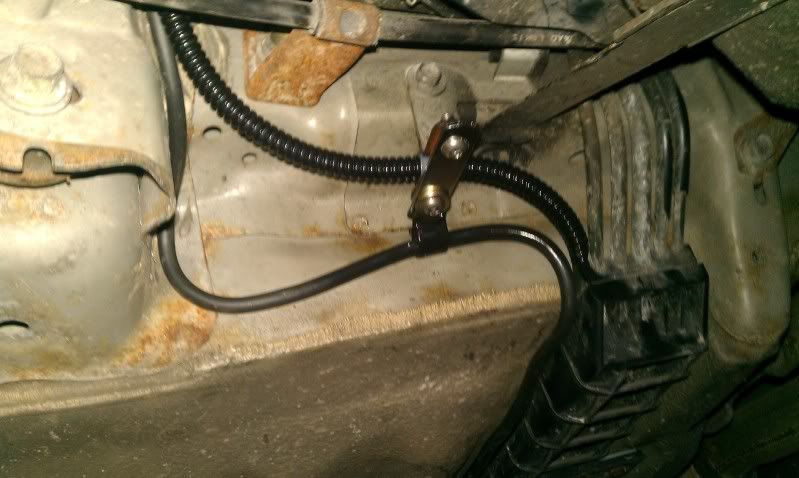

Ran the pipework and wiring harness under the car:

Tank end - Posted Image

Made some brackets along the way - Posted Image

Copper pipe meets flexible tube - note foam pad above to protect the body.
Posted Image

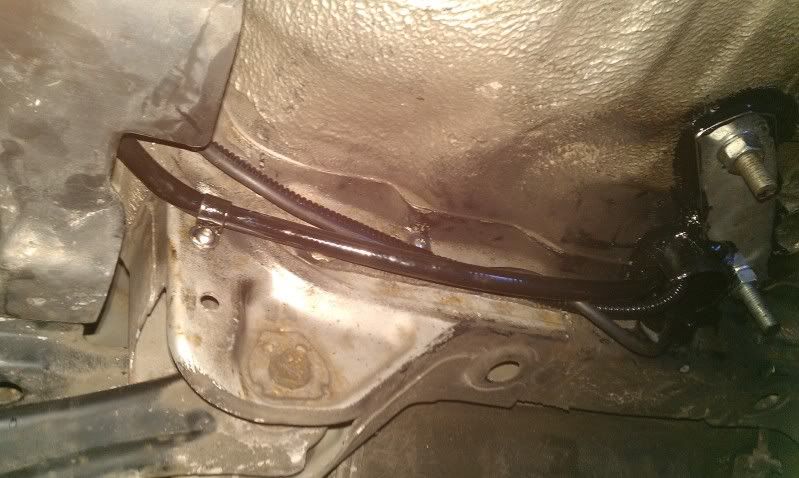

Loom and LPG hose head over the subframe into engine bay towards reducer/vaporizer:
Posted Image

Start the rebuild:
Posted Image

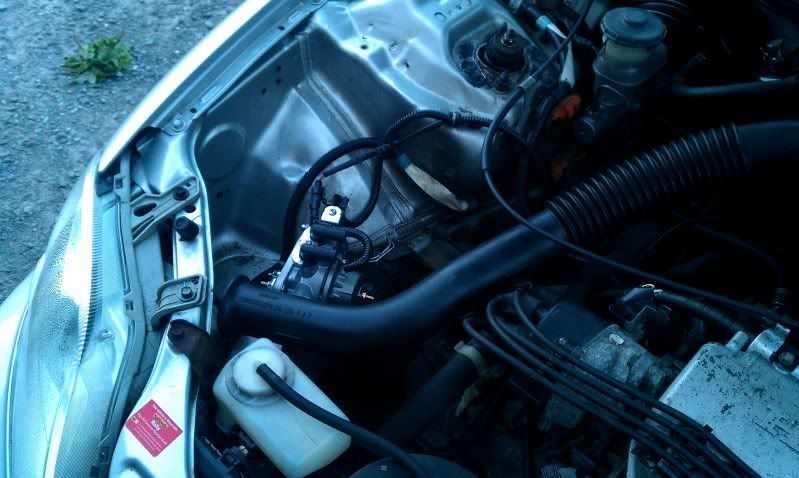

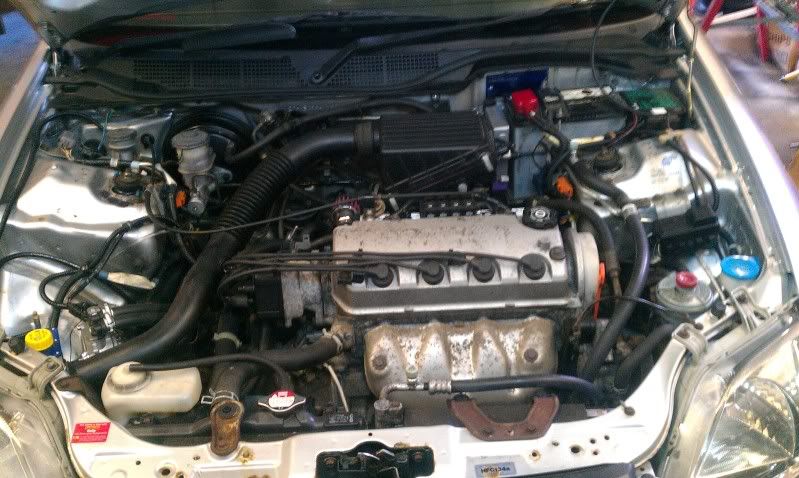

All back together:
Posted Image

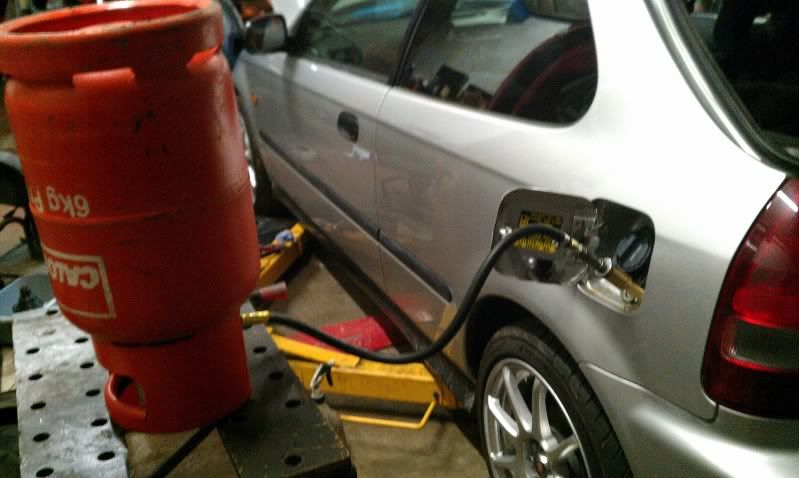

Leak check:
Posted Image

Relax:
Posted Image



Offline Profile Quote Post Goto Top

jeremy
Member Avatar
Too Far Gone To Help
[ *  *  *  *  *  *  *  *  * ]
So what is 6 KG's is petrol terms and how many miles will it go on said 6kg's ?


Jeremy
Offline Profile Quote Post Goto Top

Richy190E
Member Avatar
bubble bubble
[ *  *  *  *  *  * ]
6kg is around 11-12Ltrs. I only used that to leak check the system before going 'live' on a forcourt. People get twitchy if it leaks and the nearest station was 15 miles away so handy :D

Offline Profile Quote Post Goto Top

MBZ190D
Member Avatar
Highly Addicted
[ *  *  *  *  * ]
The last picture is ideal mate! I had a go in a ex police Volvo s60 t5 on LPG the other day the lad was getting 90 miles to 15 quids worth of gas! He was using the car as a taxi
Offline Profile Quote Post Goto Top

inlinesix
Member Avatar
DADDY. P
[ *  *  *  * ]
I remeber watching wheeler dealers when they did the, was it a Disco?
It didn't look an easy job and was very involved,especially drilling out the manifold, no thanks.
After all the hard work you then have to test for leaks.
That looks a fantastic job you've done and very neat.
All in a days work for you I guess, bet the drink went down well. B)

Offline Profile Quote Post Goto Top

Richy190E
Member Avatar
bubble bubble
[ *  *  *  *  *  * ]
inlinesix
Thu Jul 28, 2011 12:58 am
I remeber watching wheeler dealers when they did the, was it a Disco?
It didn't look an easy job and was very involved,especially drilling out the manifold, no thanks.
After all the hard work you then have to test for leaks.
That looks a fantastic job you've done and very neat.
All in a days work for you I guess, bet the drink went down well. B)

Cheers, It was very hard work - its only the second multipoint sequential kit I have ever fitted so still learning. Fitting it and making it work is childsplay.....making it neat is what takes the time!! That pint was the first of many that day.
Offline Profile Quote Post Goto Top

MBZ25-16
Member Avatar
Part of things
[ *  * ]
Exelent work well done with that :)

sam
Offline Profile Quote Post Goto Top
